Siemens CU240S DP-F - Safe Brake Control

Functions
8.18 Fail-safe functions
Control Units CU240S
8-136 Operating Instructions, 11/2006, A5E00766042B AA
Caution

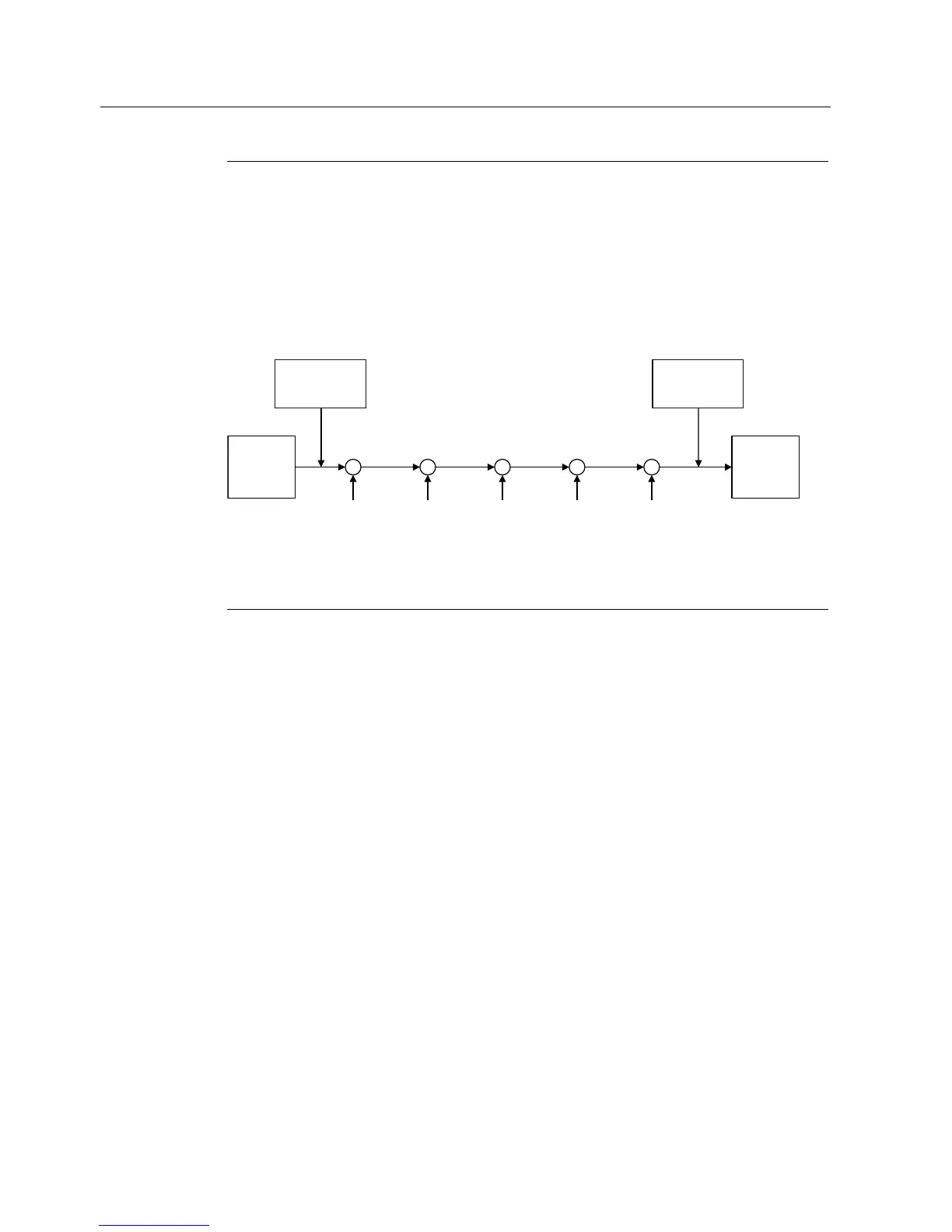

In SLS modes 0 and 1, the frequency setpoint can increase related to the following functions
• PID Trim
• Vdc max controller
• Slip compensation
• Resonance damping
• Imax
As the frequency is monitored after adding these values, this increasement should be taken
into account by the user when parameterising the safe frequency envelope.
++ + - +
3,'DVWULP 3
6OLS
FRPSHQVDWLRQ
3
5HVRQDQFH
GDPSLQJ
,PD[
)UHTXHQF\
PRQLWRULQJ
3
9GFPD[
FRQWUROOHU
)UHH]HVDIHW\
IUHTXHQF\
)UHTXHQF\
VHWSRLQW
IURP5)*
)UHTXHQF\
VHWSRLQWWR
3RZHU
VWDFN$6,&
*) If PID as trim is active when SS1, SLS0 or SLS1 is triggered, the PID as trim is
deactivated and has no influence to the frequency setpoint at the latest 1 s after the fail-safe
function has been activated.
8.18.6 Safe Brake Control
Data
Parameter range: P0003, P0010
P09761
P9601/P9801, P1215, P3046
P9602/P9802
P9799/P9899/P3900
Warnings A1691, A1692, A1696, A1699
Faults F1600, F1616
Description
The Safe Brake Control function (SBC) is to create a fail-safe signal to control an
electromechanical motor brake.
