Functions
8.9 2-/3-wire control
Control Units CU240S
Operating Instructions, 11/2006, A5E00766042B AA
8-47
8.9.4 3-wire control (P0727 = 3)
Description
There are three signals associated with this function:
OFF1/HOLD: Being maintained closed the opening of the contact will switch the
inverter OFF and cause a ramp down to 0 Hz.
ON_PULSE: This will run the motor in a forward direction (run right).
REV: This will change the direction of the motor to reverse (run left).
Function
The switch OFF1/HOLD uses negative logic: the contact will need to be maintained closed in
order to switch the inverter ON or keep it running.
A momentary closure (positive edge) of the ON_PULSE switch latches and starts the inverter
if it was OFF before.
The direction can be determined and changed any time using the REV signal.
Opening or closing the ON_PULSE switch while the drive runs has no effect.
Only enabling (i.e. Opening) OFF1/HOLD will unlatch the run-state and then stop the
inverter.
R 
R
R
IRXW
21B38/6(
21B38/6(
2))+2/'
2))+2/'
&RPPDQGLJQRUHG
$FWLYH
$FWLYH
$FWLYH
$FWLYH
$FWLYH
7LPH
2))
5(9
5(9
&RQWURO
FRPPDQGV
,QYHUWHU
IUHTXHQF\

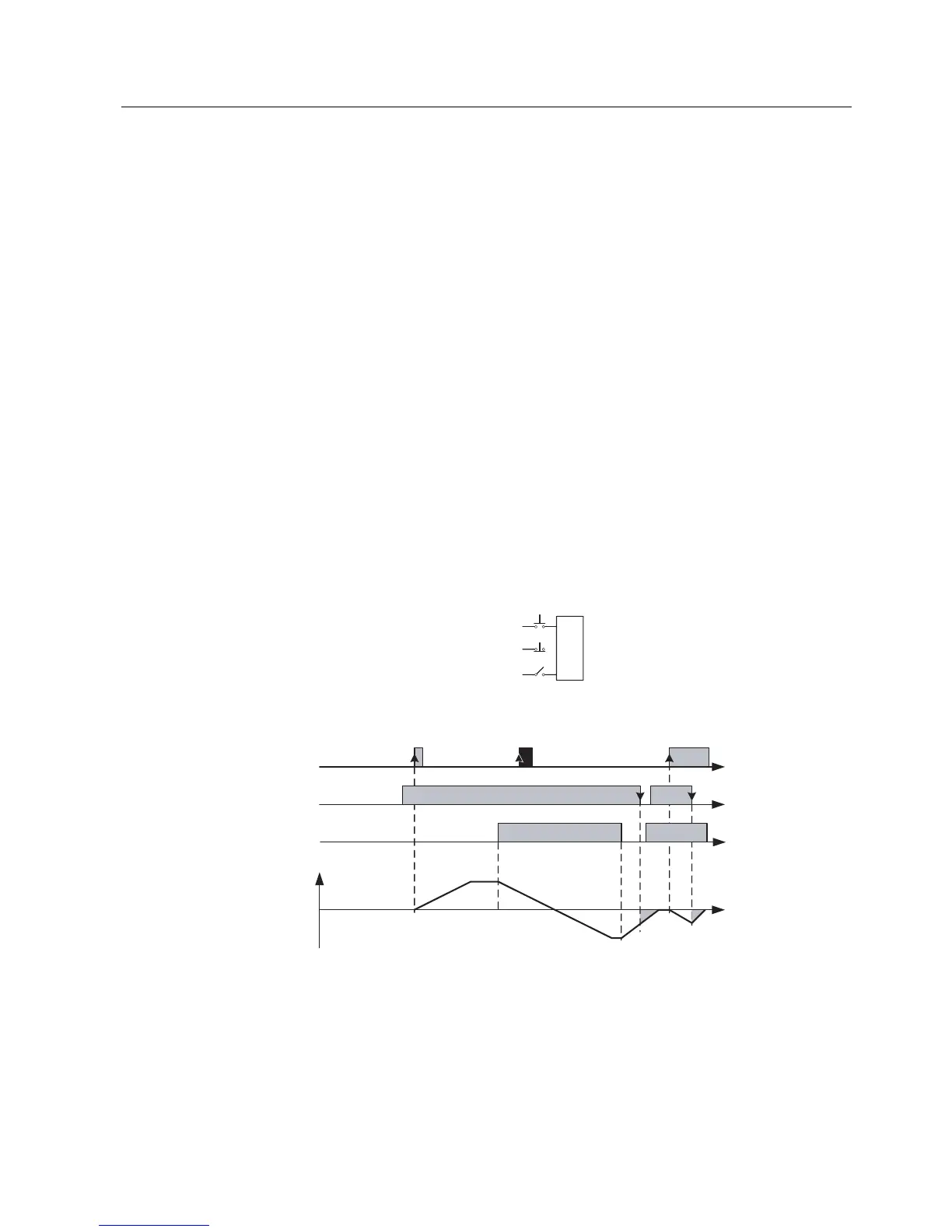

Figure 8-32 3-wire control using ON_PULSE, OFF1/HOLD and REV
