Functions
8.13 Setpoint channel
Control Units CU240S
8-66 Operating Instructions, 11/2006, A5E00766042B AA
W
W
3
I
I
PD[
U%LW
3
I
DFW
3
3
W
GRZQ
2))
W
GRZQ
2)) 3ವ
3
I
2))
3XOVH
FDQFHOODWLRQ
2SHUDWLRQ

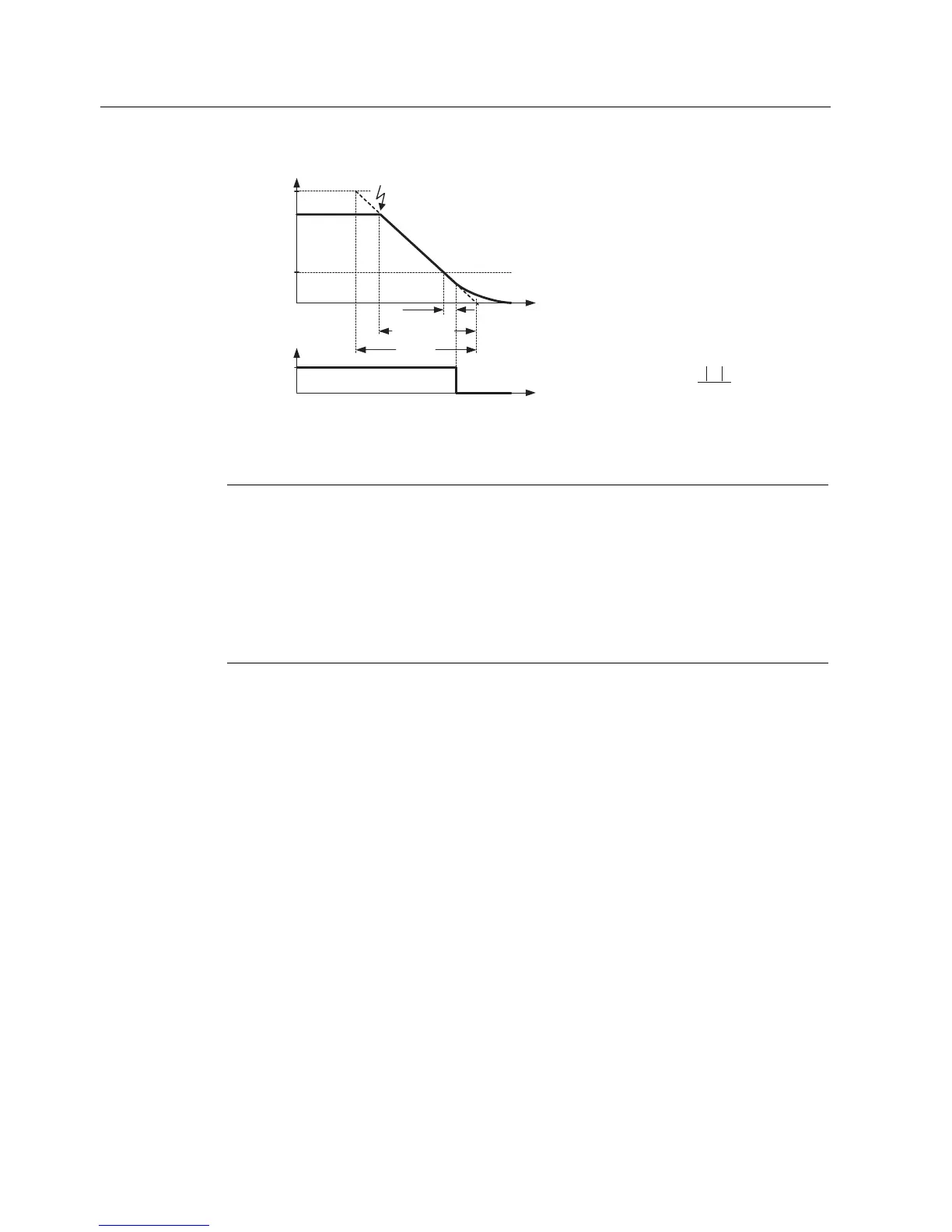

Figure 8-47 OFF3 brake function
Note
OFF3 can be entered using a wide range of command sources via BICO parameters P0848
(BI: 1. OFF3) and P0849 (BI: 2. OFF3).
OFF3 is low active.
When simultaneously selecting the various OFF commands, the following priority applies:
• OFF2 (highest priority)
• OFF3
• OFF1.
8.13.4 Manual and automatic operation
Data
Parameter range: P0700, P1000
P0810, P0811
Warnings: -
Faults: -
Function chart number: -
Description
It is necessary to change-over from the automatic mode into the manual mode to load and
unload production machines and to feed new materials (e.g. batch processing). The machine
operator carries-out the preparatory activities for subsequent automatic operation in the
manual mode. In the manual mode, the machine operator locally controls the machine
