Commissioning (software)
5.4 Parameterization with Operator Panel
Control Units CU240S
5-12 Operating Instructions, 11/2006, A5E00766042B AA
5.4 Parameterization with Operator Panel
The Operator Panel (OP)
The OP is available as an option to enhance the effectiveness of parameterizing and control
of the inverter. The control signals and speed reference can easily be set by pressing the
appropriate buttons. The OP has the ability to upload and download parameter sets from an
inverter to another inverter.

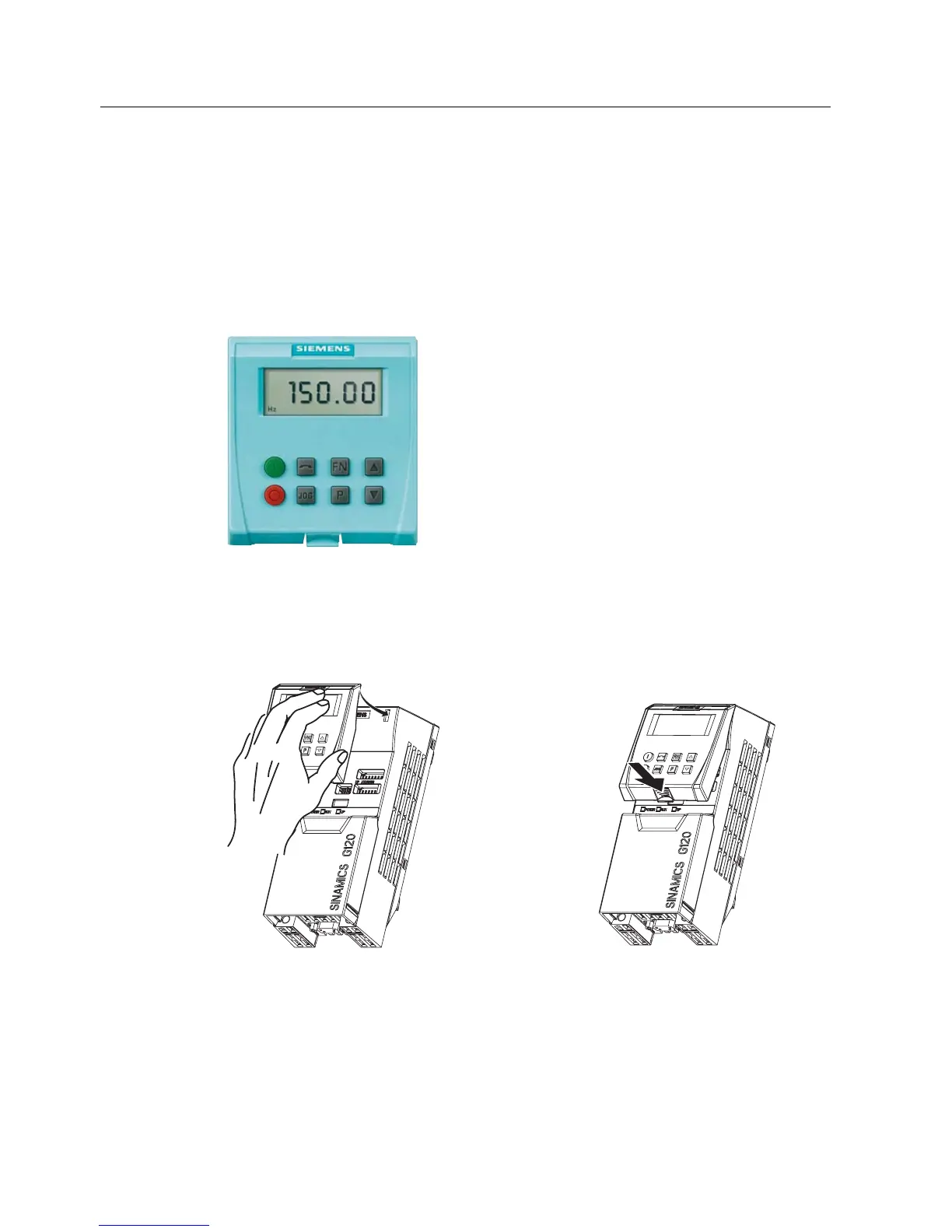

Figure 5-4 Operator Panel (OP, 6SL3255-0AA00-4BA1)
Fitting the OP to the Control Unit
The OP is fitted to the Control Unit as shown in the figure below. No matter which class of
Control Unit is being used, the process is the same.
Figure 5-5 Fitting the OP to the CU
