Functions
8.21 General monitoring functions and messages
Control Units CU240S
Operating Instructions, 11/2006, A5E00766042B AA
8-147
Functions/states Parameter/bit number Function chart
|m_act| > P2174 & setpoint reached 2198.9 -
|m_act| > P2174 2198.10 -
Load torque monitoring: Warning 2198.11 -
Load torque monitoring: Fault 2198.12 -
Note
On the OP the bit numbers are displayed in hex-format (0..9, A..F).
8.21.1 Load torque monitoring
Data
P2181 … P2192 Parameter range:
r2198
Warnings: A0952
Faults: F0452
Function chart number: –
Description
This function allows the mechanical force transmission between the motor and motor load to
be monitored. Typical applications include, for example, pulley belts, flat belts or chains, or
pulleys for toothed wheels of motor-in and motor-out shafts which then transmit
circumferential velocities and circumferential forces (see figure below). The load torque
monitoring function can then detect whether the motor load is locked or the force
transmission has been interrupted.
'ULYH
VKDIW
'HIOHFWLRQ
UROO

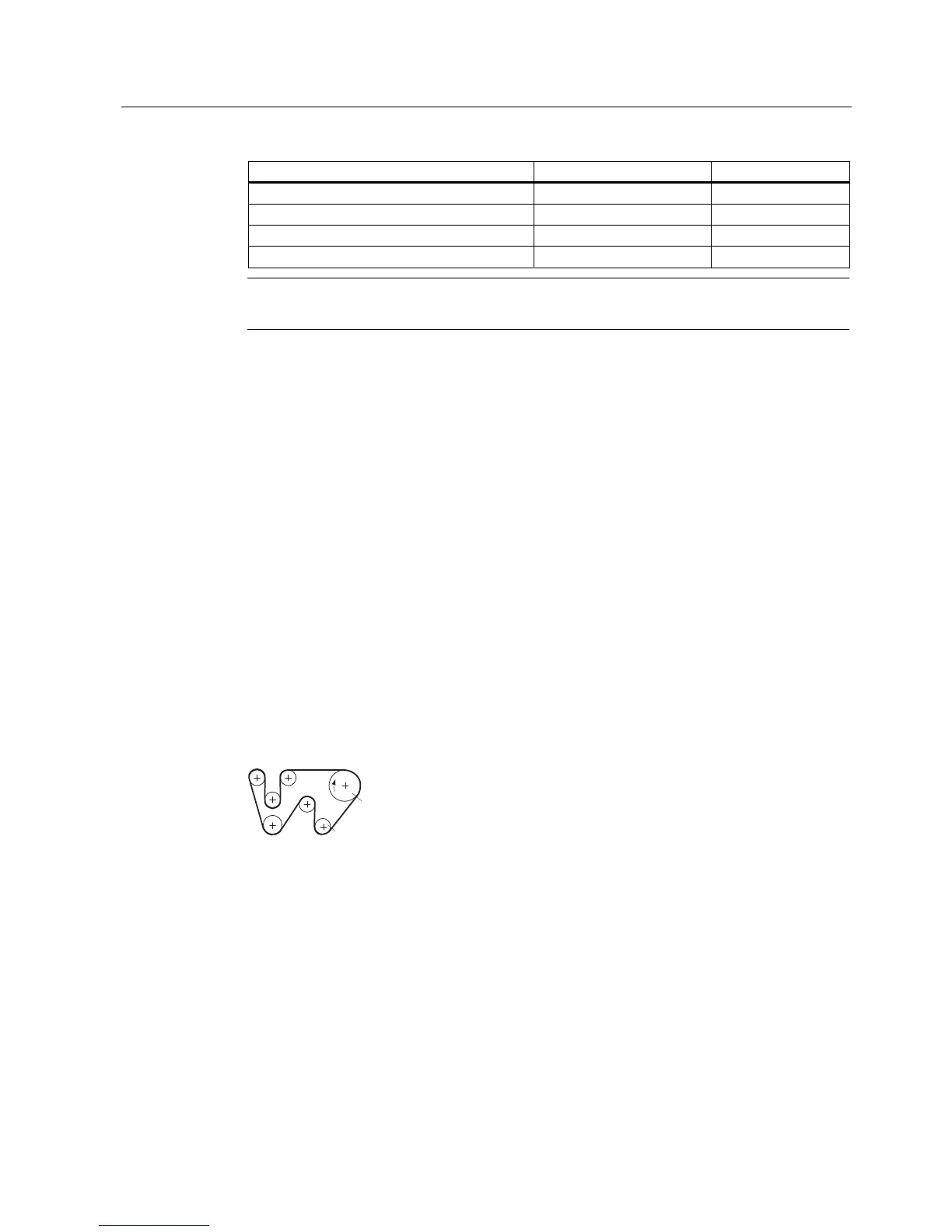

Figure 8-77 Shaft drive with flat belts
