Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-201
Edition 12.2003

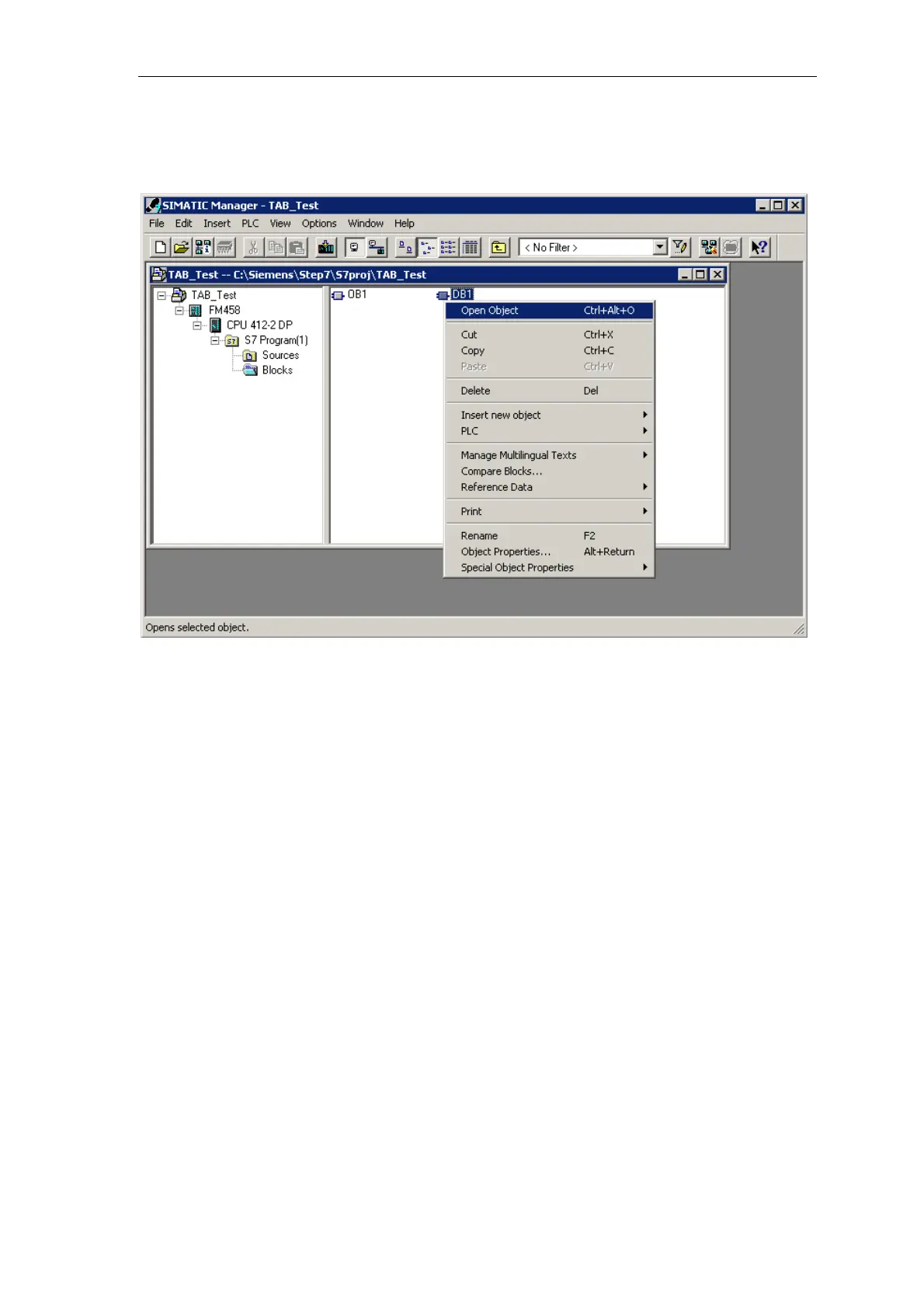

The following diagram illustrates the newly generated DB in STEP7
configured software under "Blocks":
Fig. 3-85 Newly generated DB after compiling the source file
In order to check the contents of the DBs, it can be opened in the
"LAD/STL/CSF" program. "Data view" should be selected in the "View"
menu to display the initial (starting) values as well as the actual values.
