Siemens FC300 - Pulse Output

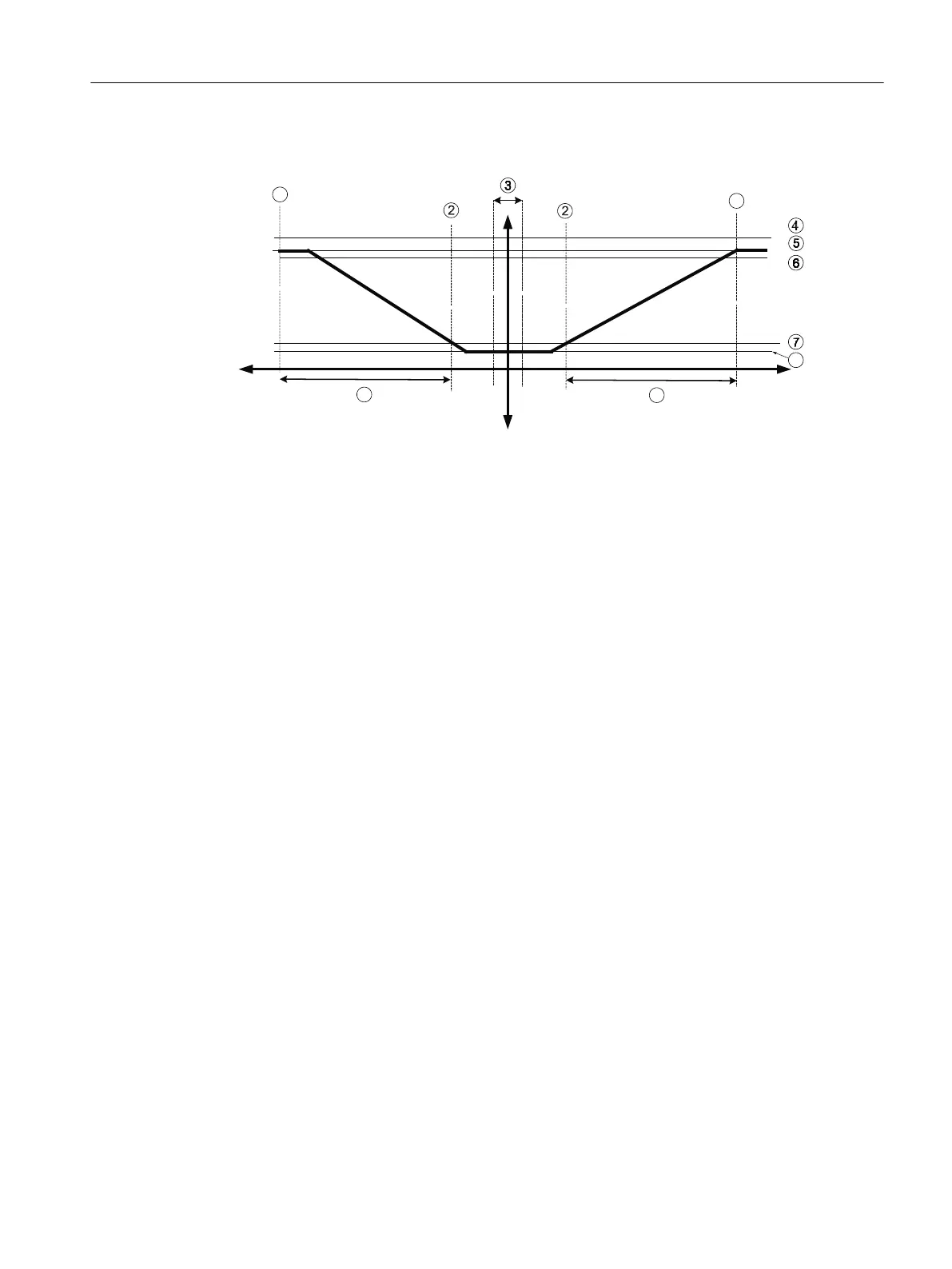

Bidirectional flow with symmetrical scaling
)&
v v
mA
Kg/h

v v
v
v
v
P$
P$
P$
P$
P$


NJKNJKNJKNJK


① Upper scaling
② Lower scaling
③ Low-flow cut-off
④ Upper alarm value
⑤ Maximum measurement value
⑥ Upper range
⑦ Lower range
⑧ Minimum measurement value
⑨ Measurement range
Current output setting
● Process value = Massflow
● Direction = Bidirectional (Symmetric)
● Current Mode = 4-20 mA NAMUR
● Upper Scaling = 400 kg/h
● Lower Scaling = 100 kg/h
● Fail Safe Mode = Maximum current
● Low-Flow Cut-Off = 25 kg/h
11.5.2 Pulse output
The pulse output function supplies pulses equivalent to a configured amount of accumulated
volume or mass. The pulse width is configured and the pulse repetition is proportional to the
selected flow rate.
Technical data
11.5 Outputs
MASS 2100 & FC300 (FCT030)
Operating Instructions, 06/2017, A5E39789040-AA 227
