Building Technologies Division User Manual LMS14... CC1U7471en
6 The settings in detail 07.05.2014
Line no. Operating line
HC1 HC2 HC3
800 1100 1400 Reduced setp increase start
Line no. Operating line
HC1 HC2 HC3
801 1101 1401 Reduced setp increase end

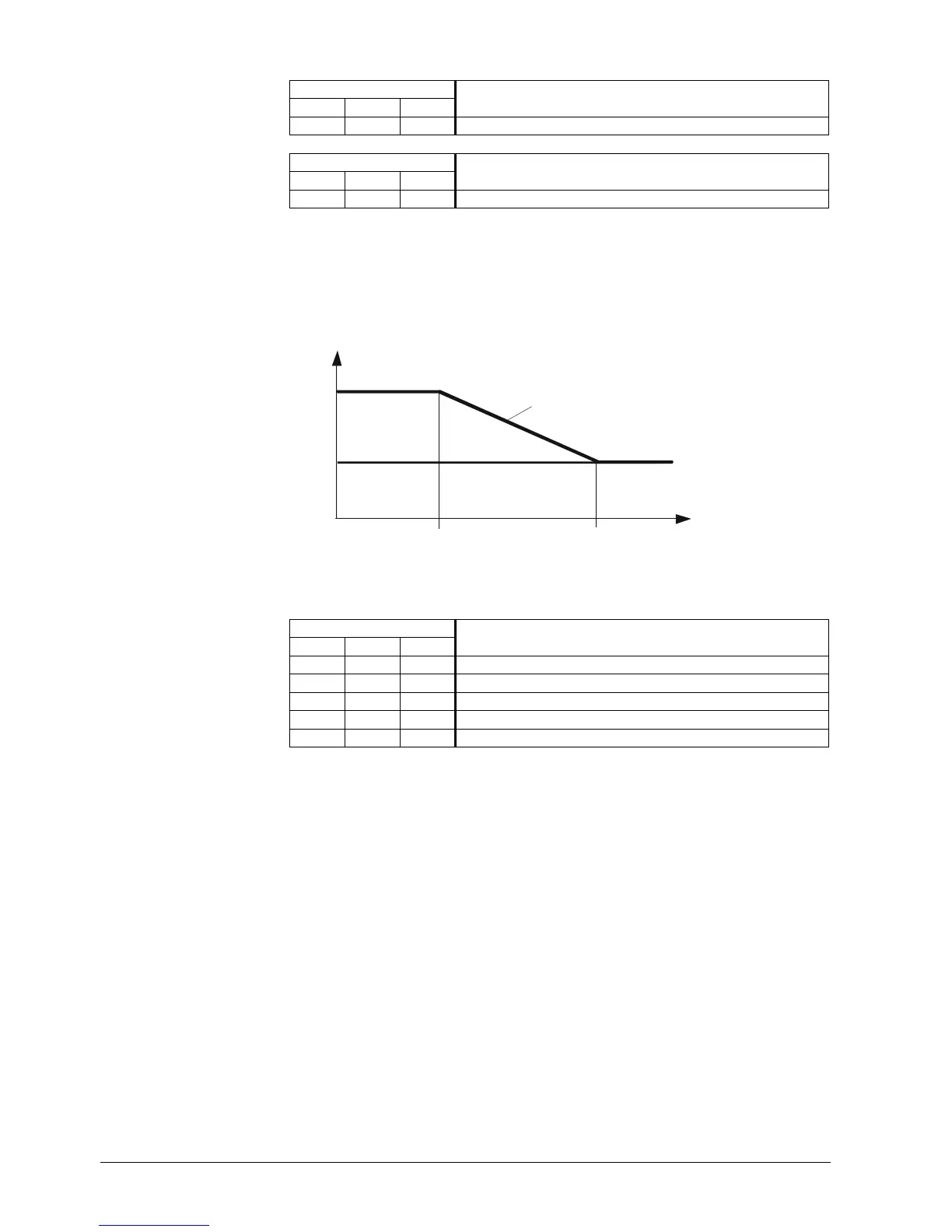

When heat output is relatively low and the outside temperature is low, the Reduced
setpoint can be raised. The increase is dependent on the composite outside
temperature.
The lower the composite outside temperature, the more the Reduced setpoint is raised.
Start and end of the increase are adjustable. Between these 2 points, the Reduced
setpoint is increased in a linear manner up to the Comfort setpoint.
8704
710
1010
1310
712
1012
1312
-5°C
(Beginn)
TRw
-15°C
(Ende)
TRRw+
7471d40/1009
Figure 27: Reduced setpoint increase end
Key
Line no. Meaning
HC1 HC2 HC3
710 1010 1310 TRK Room temperature Comfort setpoint
712 1012 1312 TRR Room temperature Reduced setpoint
8704 TAgem Composite outside temperature
TRw Room temperature setpoint
TRRw+ Increased Reduced setpoint
Reduced setp
increase start
Reduced setp
increase end
