Building Technologies Division User Manual LMS14… CC1U7471en
6 The settings in detail 28.01.2015
6.15.7 Frost protection for the collector
Line no. Operating line
3840 Collector frost protection
When there is risk of frost at the collector, the collector pump is activated to prevent the
heat-carrying medium from freezing.
If the collector temperature falls below the frost protection temperature, the
collector pump is activated: Collector temperature < frost protection collector
temperature
When the collector temperature returns to a level of 1 K above the frost protection
temperature, the collector pump is deactivated again: Collector temperature > frost
protection collector temperature + 1
Note!
No consideration is given to the temperature in the storage tank. In normal situations,
the storage tank is discharged while the collector assumes a higher temperature.
T
t
1°C
BZ 3840
B6
On
Off
Q5
7471d24e/1210

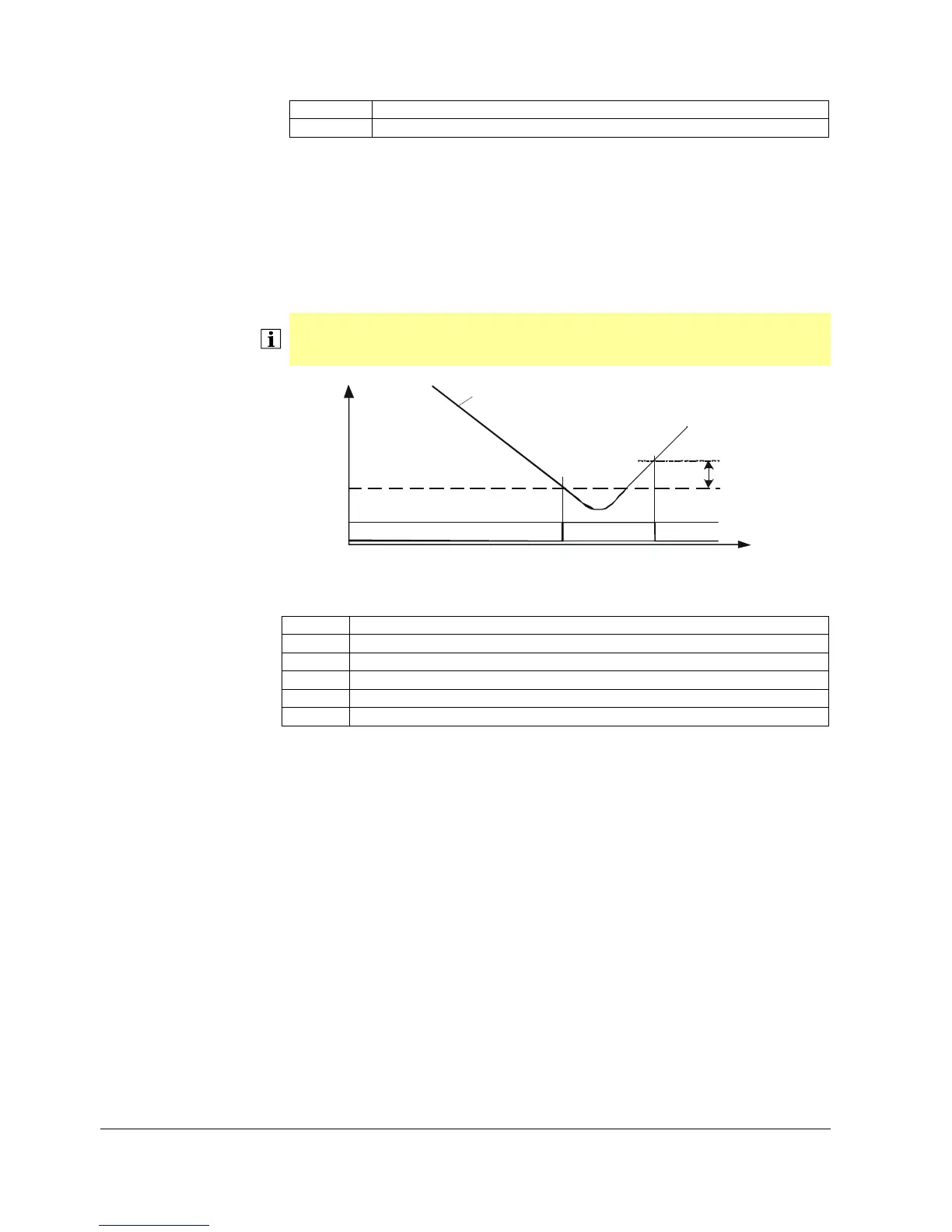

Figure 60: Frost protection for the collector
Key
Line no. Meaning
3840 TKolFrost Frost protection collector temperature
B6 Temperature acquired by collector sensor
Q5 Collector pump (On/Off)
t Time
T Temperature
Collector frost
protection
