6.5.18 Heating up gradient room model
Line no. Operating line
HC1 HC2 HC3
794 1094 1394 Heat up gradient
The heating up gradient represents the time in minutes the heating system requires to
raise the room temperature by 1 °C. This setting is used to calculate a fictive room
temperature for rooms without room sensor (Room temp 1 model (8742), Room temp 2
model (8772), and Room temp 3 model (8802)).
6.5.19 Raising the Reduced setpoint
This function is used primarily with heating systems that have only little spare capacity
(e.g. low-energy houses). In such cases, the heating up time would be too long at low
outside temperatures. When the Reduced setpoint is increased, the rooms are
prevented from cooling down to extremely low levels, thus shortening the heating up
time when changing to the Comfort setpoint.
TR
710
101
1310
8704
801
1001
1401
800
1000
1400
712
1012
1312

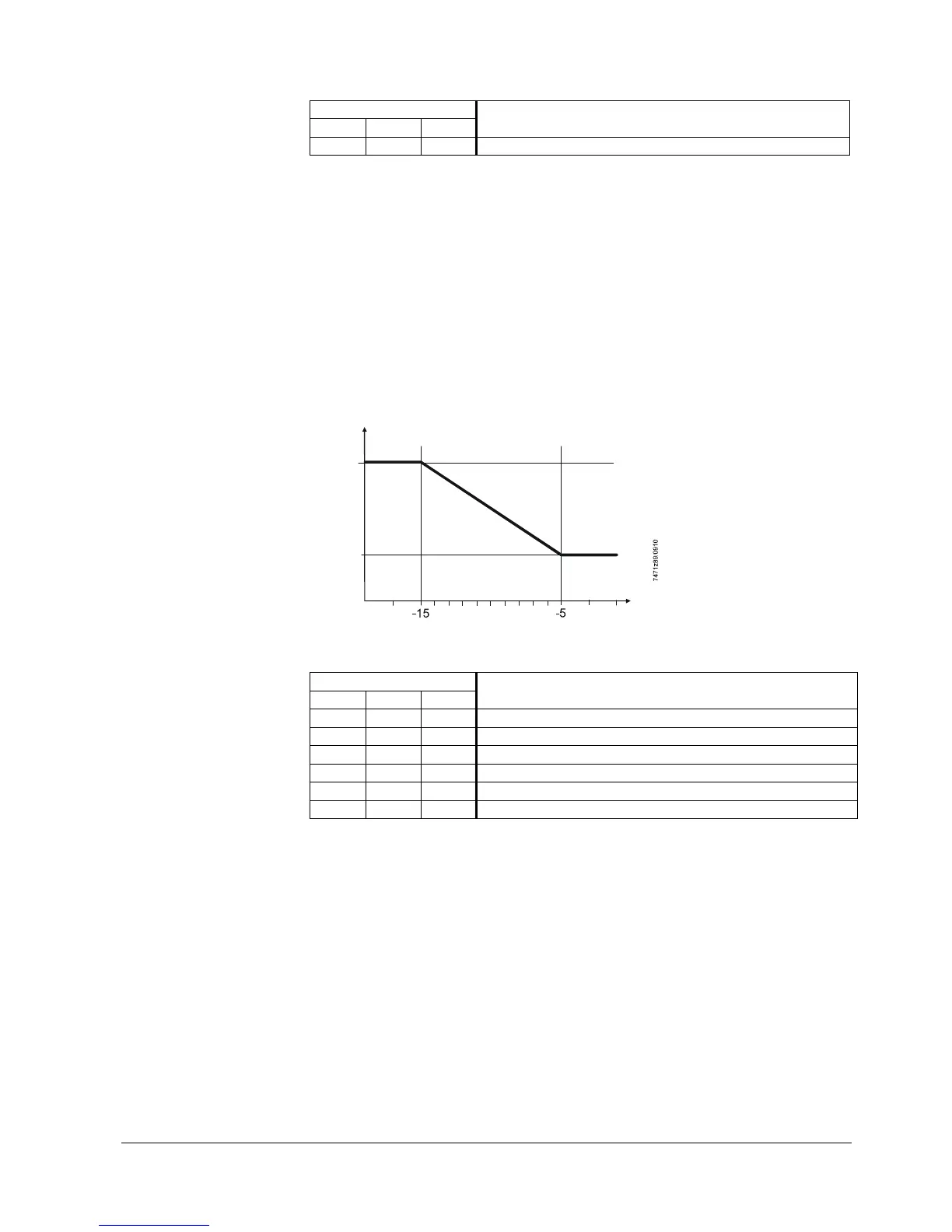

Figure 26: Raising the reduced setpoint
Key
Line no. Meaning
HC1 HC2 HC3
710 1010 1310 TRK Room temperature Comfort setpoint
712 1012 1312 TRR Room temperature Reduced setpoint
800 1000 1400 TRwA1 Start of Reduced setpoint increase
801 1001 1401 TRwA2 End of Reduced setpoint increase
8704 TAgem Composite outside temperature
TR Room temperature setpoint – heat gains + room influence
Heat up gradient
