Building Technologies Division User Manual LMS14... CC1U7471en
3 Mounting and installation 28.01.2015
3.4 Basic unit LMS14… complete (Basic)
Dimensions in mm
150
140
108,5
93,8
71
5
Ø
4
,
2
(
7
x
)
83
117
150,7
129
60,5
82,7
146,5
220
230
8,6
51,8
5
21
5
66
112,1
139
140
17,2
7471m27/0514

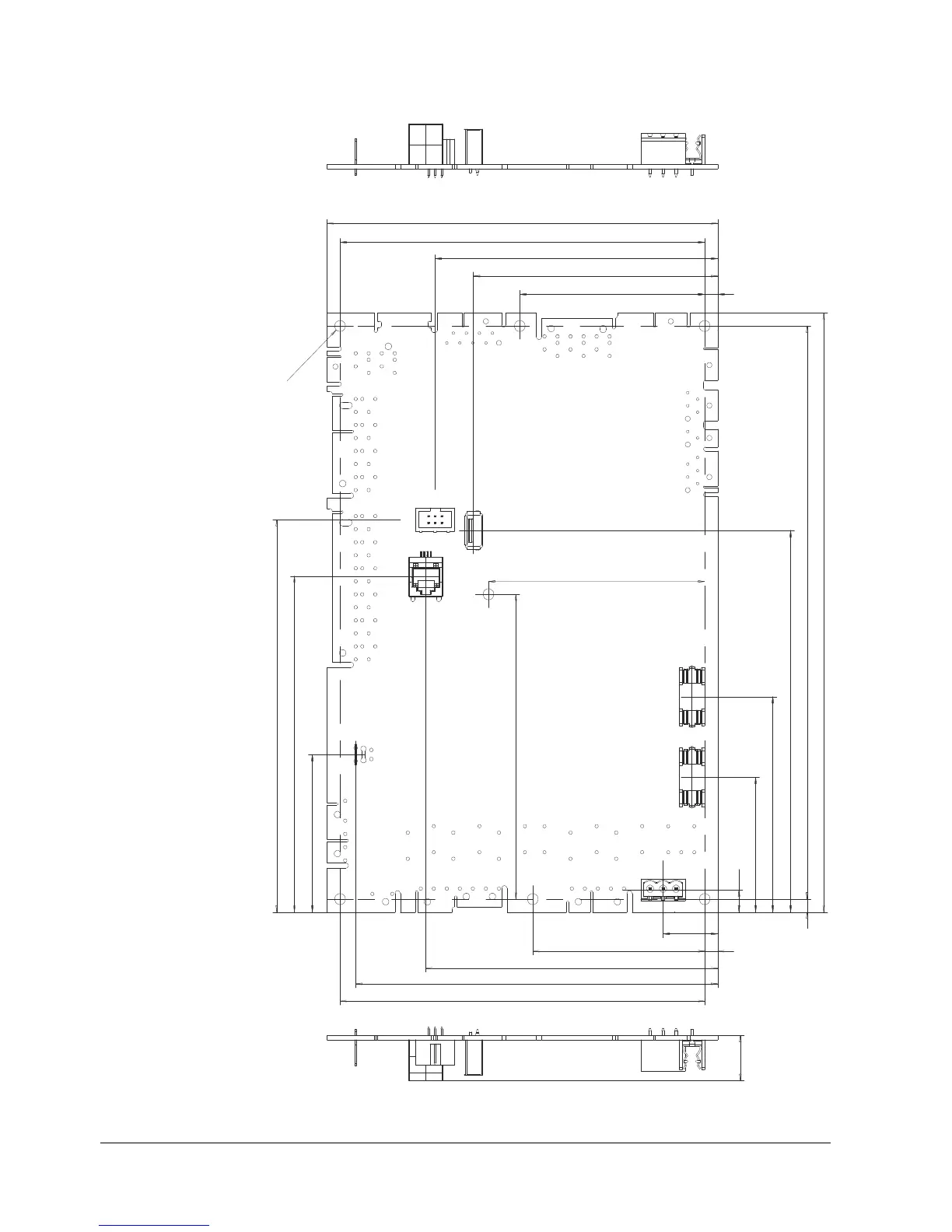

Figure 4: Dimensions of basic unit complete (Basic)
