Building Technologies Division User Manual LMS14… CC1U7471en
6 The settings in detail 28.01.2015
Line no. Operating line
6052
6060
6068
Funct value 2 H2 module 1
Funct value 2 H2 module 2
Funct value 2 H2 module 3

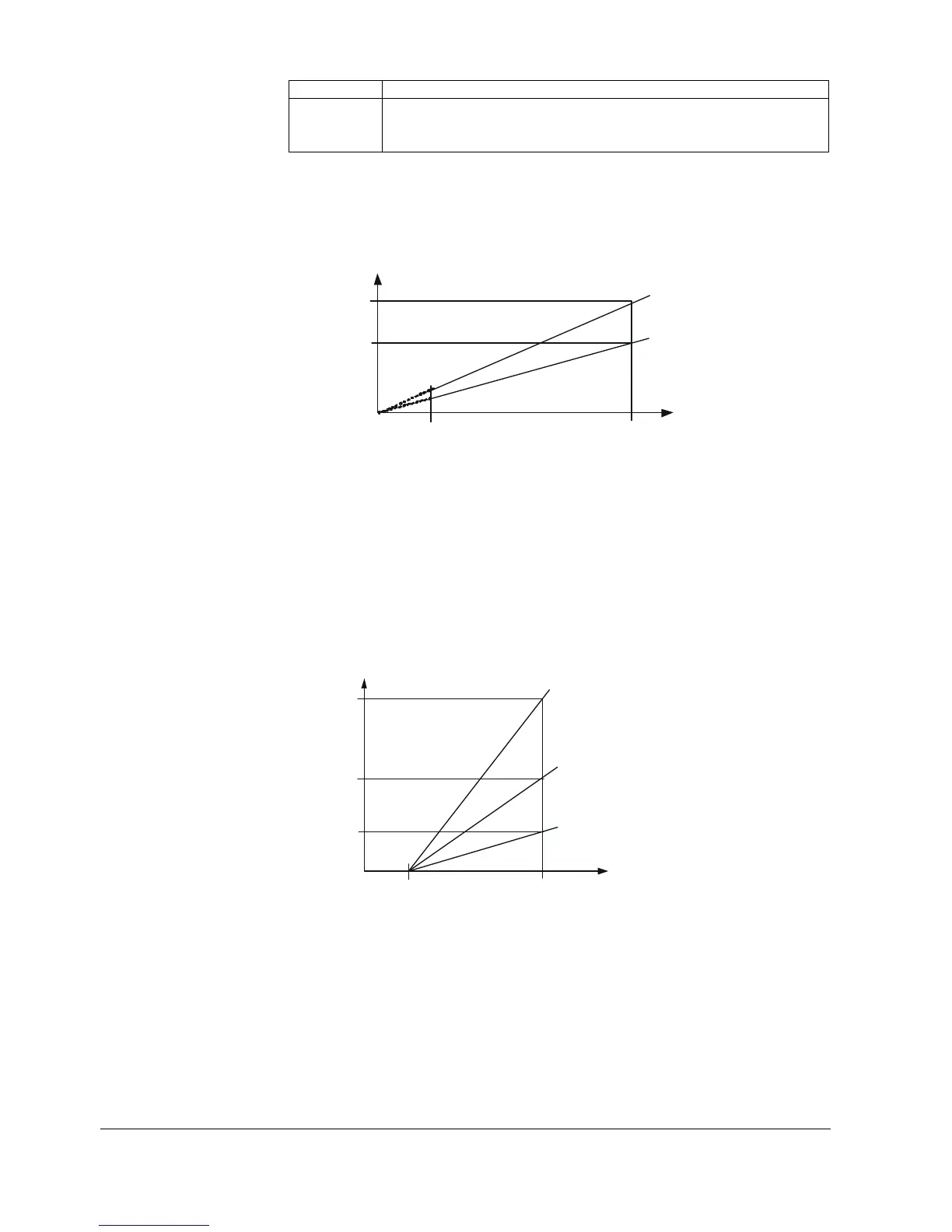

The linear characteristic is defined via 2 fixed points. The setting uses 2 pairs of
parameters for function value and voltage value (F
1/U1 and F2/U2).
 Example of heating demand DC 10 V
Flow
temperature
setpoint
[
°
C
]
Voltage at Hx
F2 = 80
U2
=
10
V
U1
=
0
V
F1 = 0
0.15
V
F2 = 60
7471d09e/0111
Figure 93: H2 extension module – heating demand
Key
F1 Function value 1
F2 Function value 2
U1 Frequency value 1
U2 Frequency value 2
If the input signal drops below the limit value of 0.15 V, the request for heat becomes
invalid, which means that it has no impact.
 Example of pressure measurement at DC 10 V
Pressure value [bar]
Supply to Hx
U2 = 3.5 V
4 bar
0
F2 = 40
2 bar
1 bar
U1 = 0.5 V
F2 = 20
F2 = 10
F1 = 0
7471d10e/0112
Figure 94: Input Hx H2 extension module – NO contact
Key
F1 Function value 1
F2 Function value 2
U1 Frequency value 1
U2 Frequency value 2
Function value 2 H2
module 1, 2, 3
