TSA2 (TSA – TSA1)
Second part of safety time with ignition off. Fuel valve is open.
Gas valve
Ignition
TSA (9518)
TSA1
(9519)
TSA2
*1
*1: TSA2 = TSA – TSA1
t
7471d69e/0811

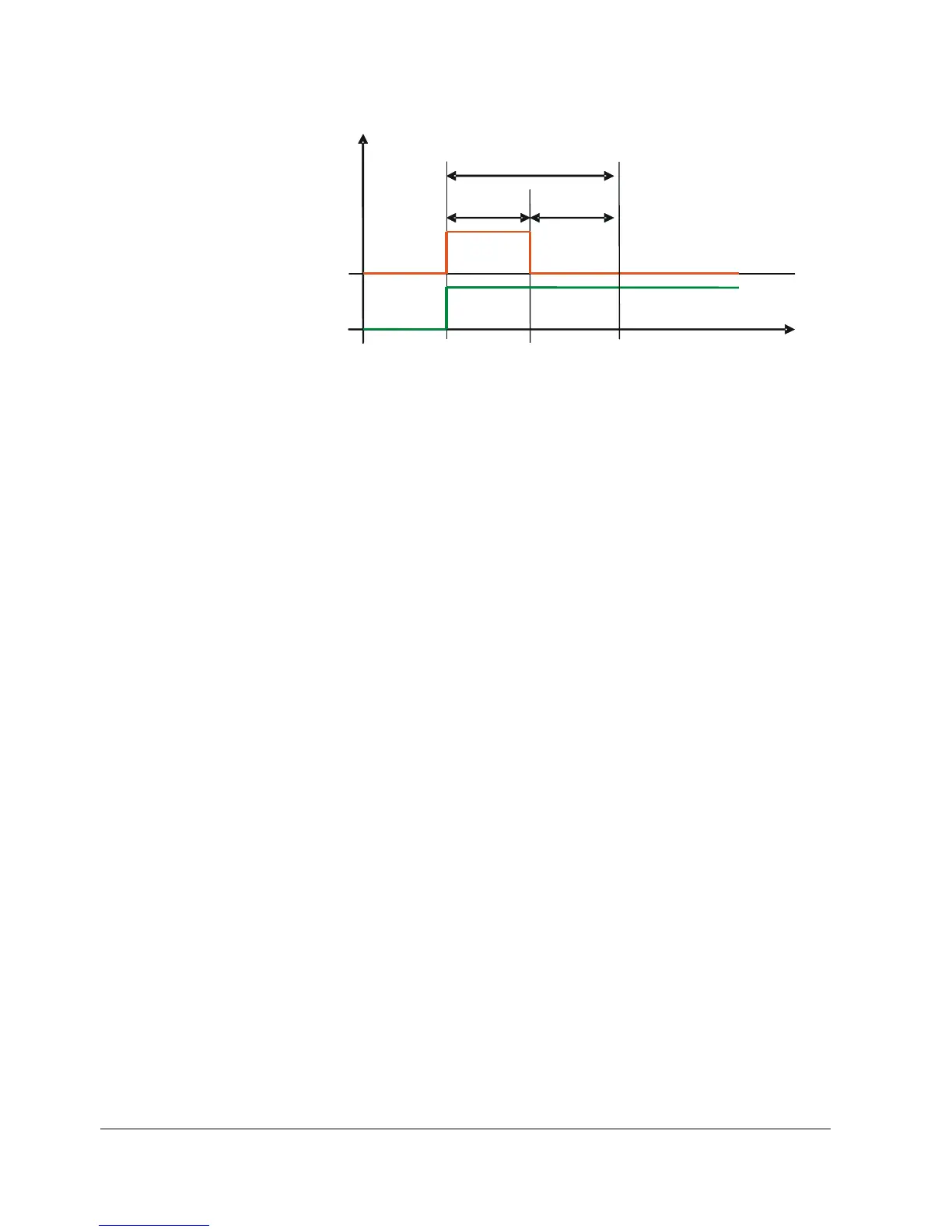

Figure 104: Safety time TSA
Operation
Start of the operating position is phase interval TI. If interval TI is not required, it cannot
be parameterized to 0, but only to a minimum of 0.2 seconds.
TI (t4)
Interval for stabilization of flame.
MODULATION (unlimited)
Controller operation. In this phase, the controller’s result is delivered.
