9.17 Motor operator
172 Manual, 08/2017, L1V30368969104A-02
8. Remove the bolts in accordance with the figure.

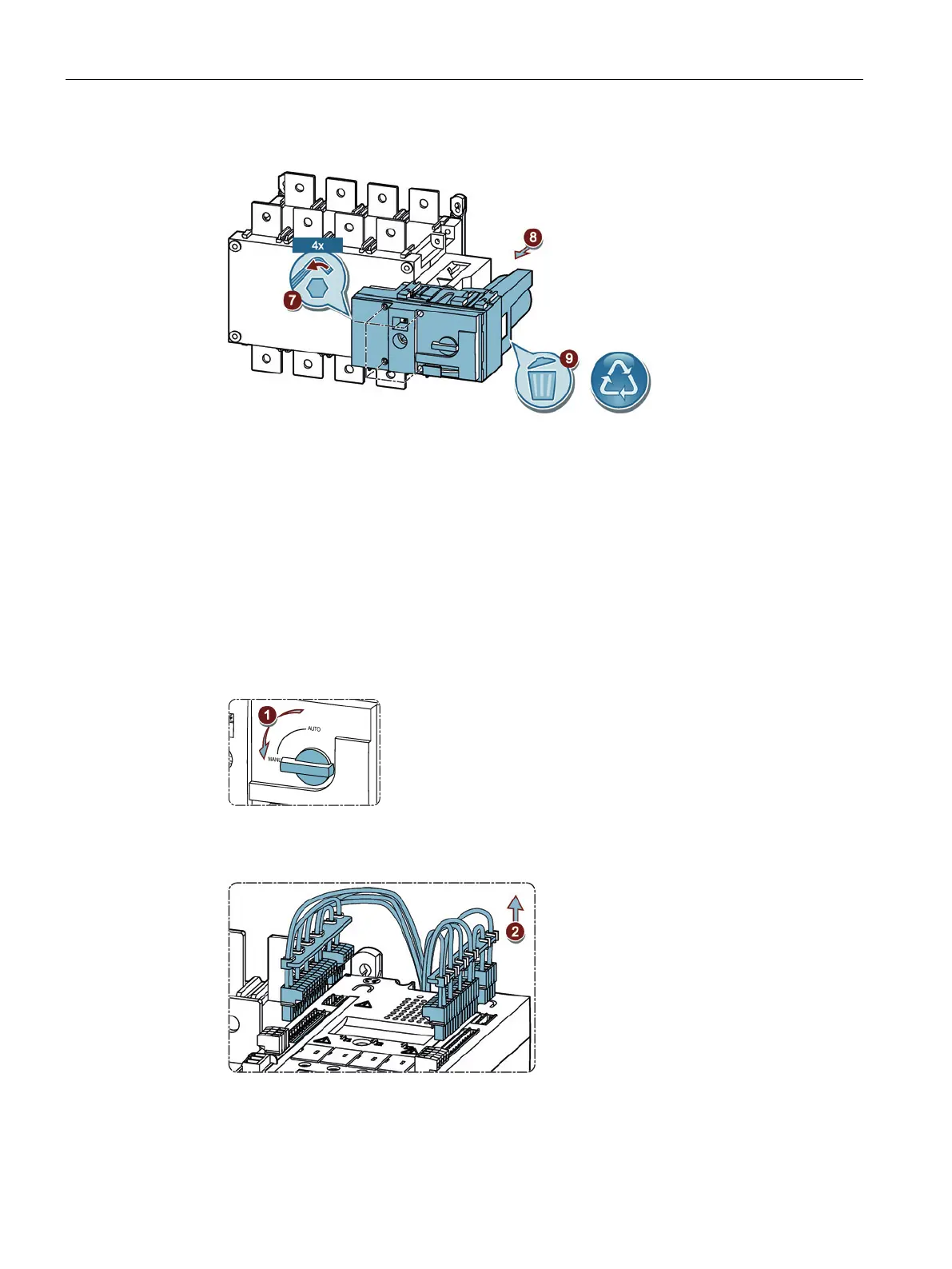

Figure 9-38 Disassembling and disposing of the motor operator of the 3KC4 transfer switching
equipment
9. Remove the motor operator from the transfer switching equipment.
10.Dispose of the motor operator in an environmentally friendly way.
11.To mount a new motor operator, follow steps 1 to 8 in the reverse order.
Replacing the motor operator of the 3KC8 transfer switching equipment
The following steps describe the replacement of the motor operator on the 3KC8 transfer
switching equipment.
1. Switch the transfer switching equipment from "Auto" mode to "Manual" mode.
Figure 9-39 Set the switch to the "Manual" position
2. Remove the inputs of the electronic module.
Figure 9-40 Removing the inputs of the electronic module
