9.17 Motor operator
Manual, 08/2017, L1V30368969104A-02
173
3. Remove the control inputs (pins 312-317).

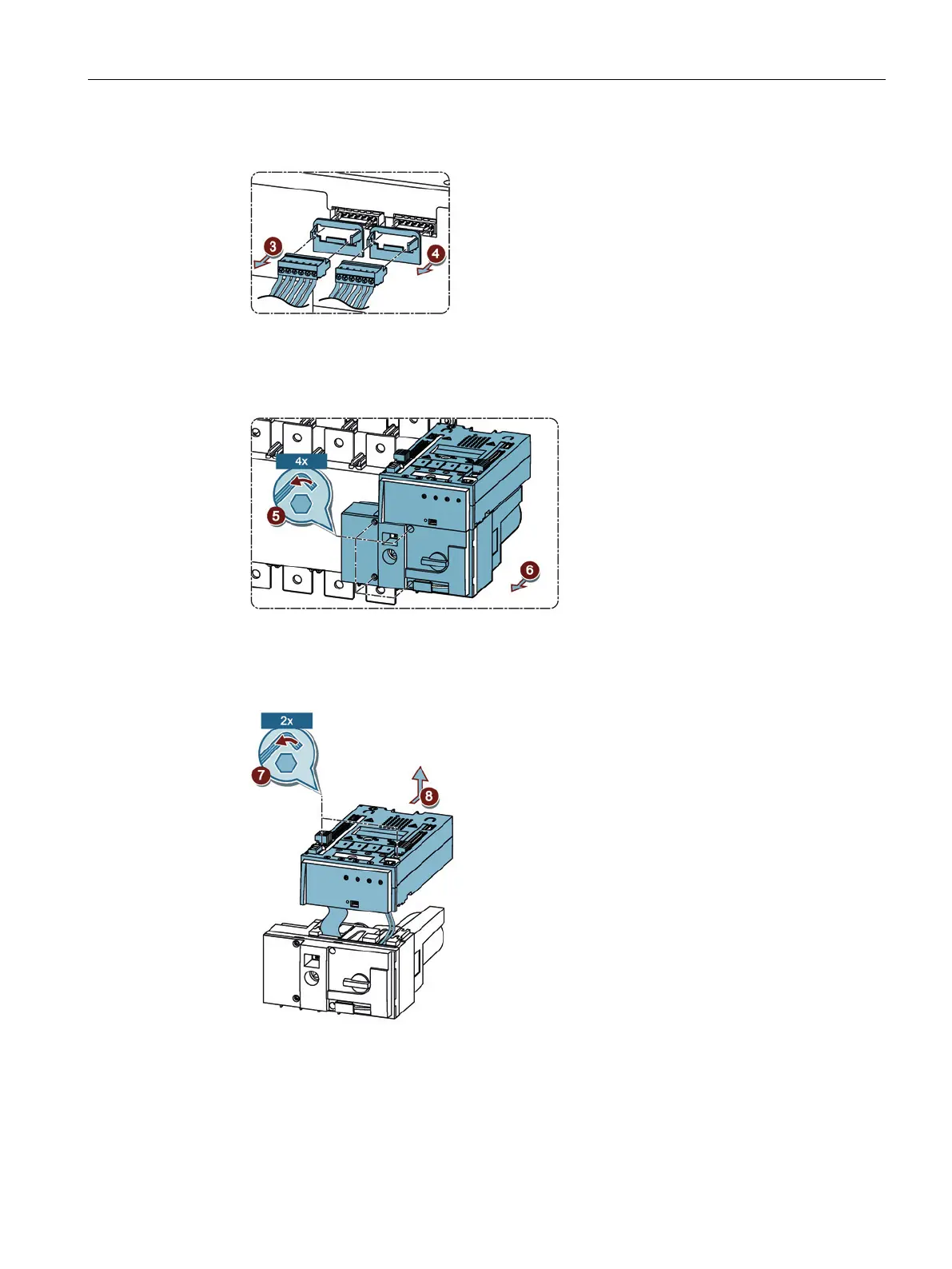

Figure 9-41 Removing control inputs and outputs
4. Remove the outputs (pins 63, 64, 24, 14, 04, 13).
5. Remove the bolts in accordance with the figure.
Figure 9-42 Disassembling the motor operator of the 3KC8 transfer switching equipment
6. Remove the motor operator from the transfer switching equipment.
7. Remove the bolts of the electronic module in accordance with the figure.
Figure 9-43 Disassembling the electronic module
8. Pull the electronic module to the rear to release the bolts.
