Dimension drawings
12.1 Dimension drawings of the 3KC4 transfer switching equipment
194 Manual, 08/2017, L1V30368969104A-02
Current rating 800 A to 1600 A

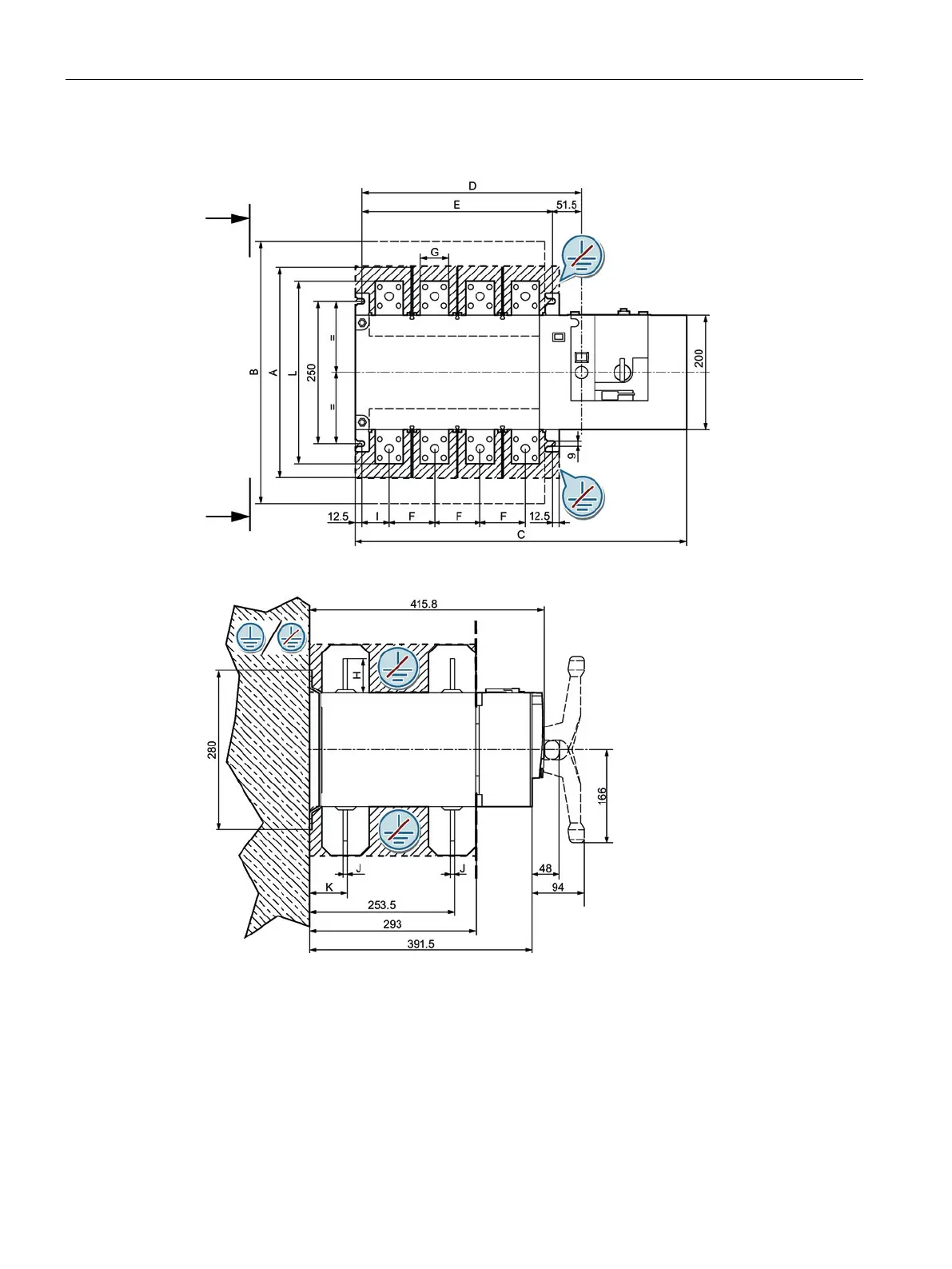

Figure 12-2 Dimension drawing current rating 800 A to 1600 A, front view
Figure 12-3 Dimension drawing current rating 800 A to 1600 A, side view
