Planning the use
3.5 Preparing for Mounting
KP8, KP8F, KP32F
Operating Instructions, 11/2011, A5E03284305-02
39
Dimensions of the mounting cut-out
You can mount several HMI devices flush side-by-side or stacked.
● Mounting cut-out KP8, KP8F

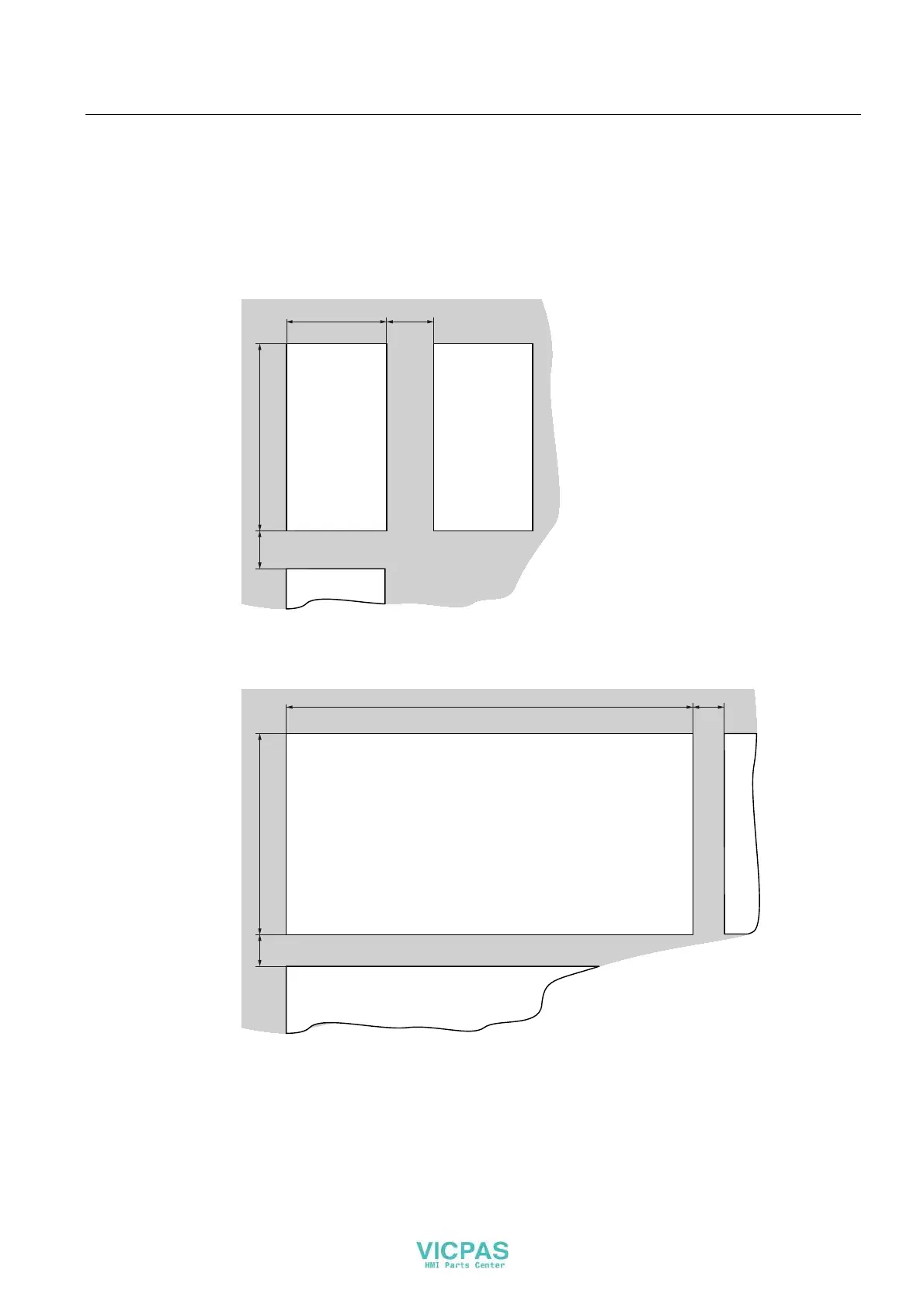

The following figure shows the dimensions of the mounting cut-out and the required
distances.
$OOGLPHQVLRQVLQPP




● Mounting cut-out KP32F
The following figure shows the dimensions of the mounting cut-out and the required
distances.
$OOGLPHQVLRQVLQPP
 

