Planning the use
3.5 Preparing for Mounting
KP8, KP8F, KP32F
40 Operating Instructions, 11/2011, A5E03284305-02

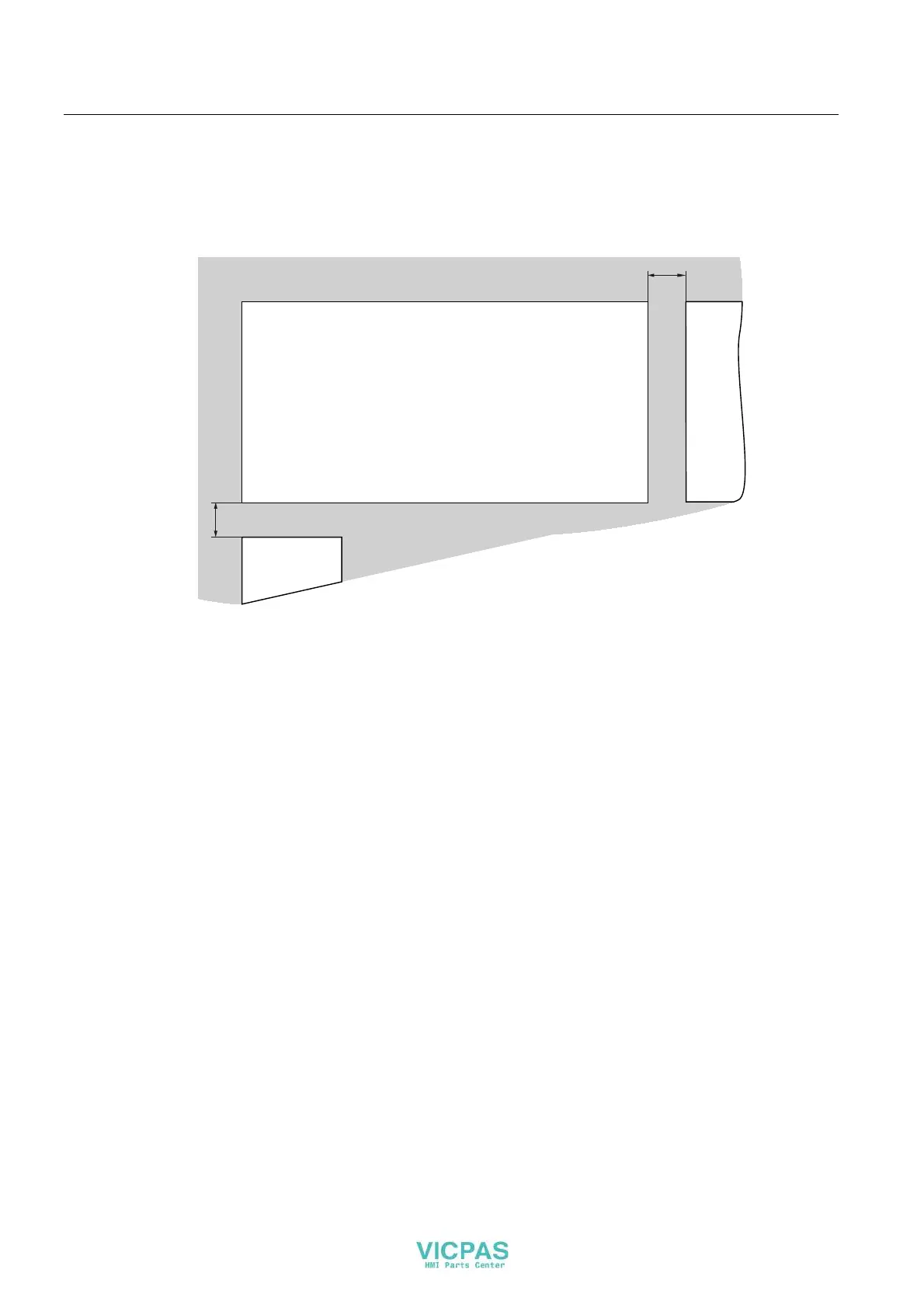

Distances between KP32F and KP8 or KP8F
The following figure shows the required distances for flush-mounting of KP32F and KP8 or
KP8F.
.3
.3)
.3
.3)
.3)
$OOGLPHQVLRQVLQPP
Mounting Depth
The mounting depth for the HMI device depends on the type of construction of the
PROFINET connector. With angled PROFINET connector, order number 6GK1901-1BB20-
2AB0, the mounting depth is 65 mm.
Plan for an adequate bending radius for the cables connected to the HMI device.
Clearance
Observe the maximum permitted ambient temperature particularly when flush-mounting
multiple HMI devices. Make sure that there is sufficient heat dissipation during operation.
