Assigning parameters for the HMI device in STEP 7
6.3 KP8 and KP8F
KP8, KP8F, KP32F
Operating Instructions, 11/2011, A5E03284305-02
79
8. Open the "PROFIsafe" tab.

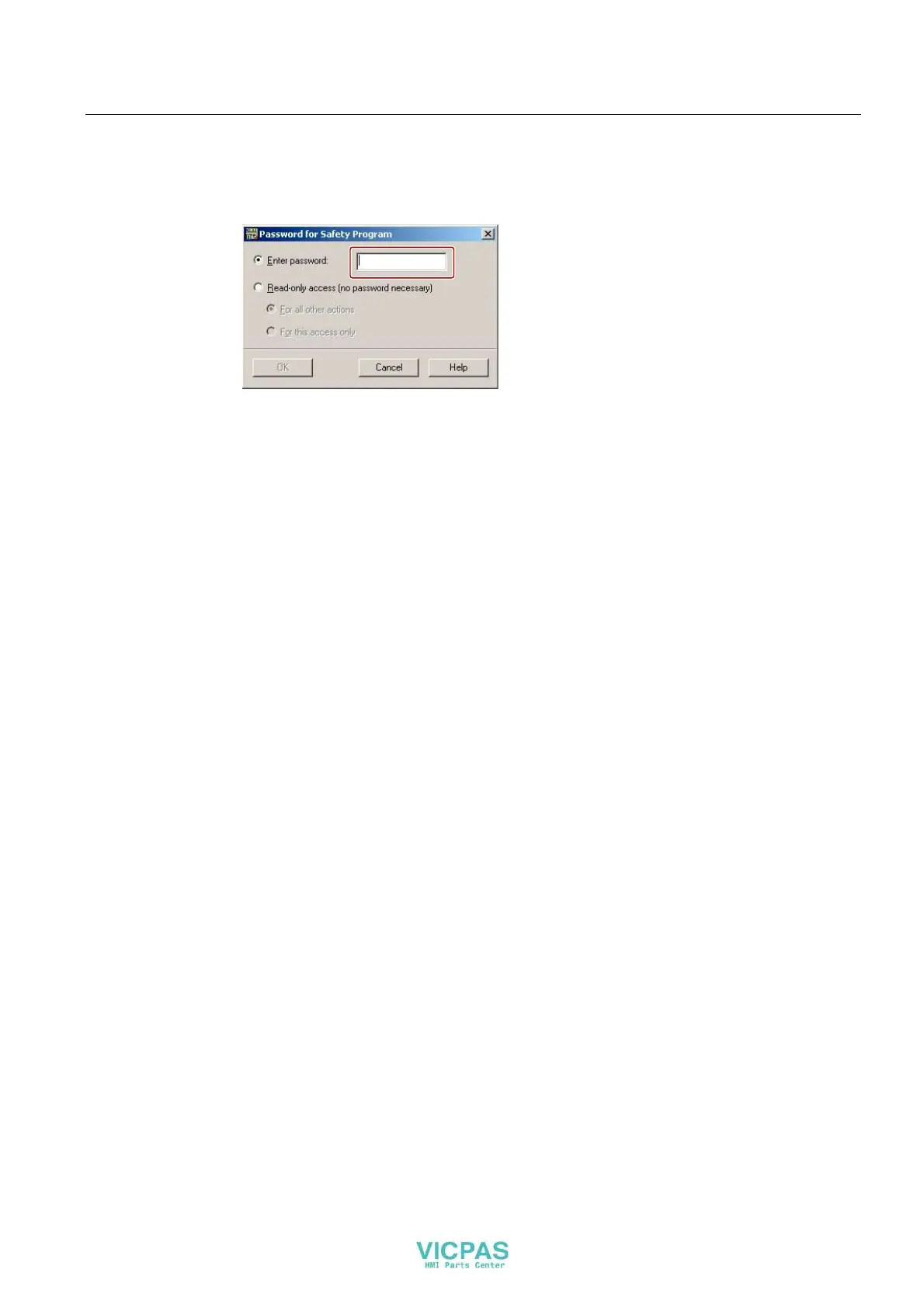

If no access rights exist, the following dialog box will be shown.
9. Enter the password that was assigned when the safety program was created in
Distributed Safety.
10. Click "OK".
The dialog box closes.
11. If necessary, change the "F_Dest_Add" parameter.
To do this, use the "Change value" button. Assign a network and station-wide unique
address.
12. Change the monitoring time "F_WD_Time" if needed.
13. Click "OK".
The entries are saved. The dialog box closes.
Result
The HMI device will now respond in operation according to the new setting. The switch
states of the digital inputs of the HMI device are stored in the specified address area of the
controller.
See also
Connecting the EMERGENCY STOP button (Page 58)
