Network and system interfacing
5.4 System setup of the reader as PROFINET IO device and FB79 or Ident profile
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
103
3&SURJUDPPLQJGHYLFHZLWK
XVHULQWHUIDFH
(WKHUQHWFDEOH
(WKHUQHWFDEOH
,2FDEOH
$XWRPDWLRQV\VWHP
6ZLWFK
3RZHU,256FDEOH
&RQYH\RUGLUHFWLRQ
2EMHFW
&RQYH\RUV\VWHP
/LJKWEDUULHU

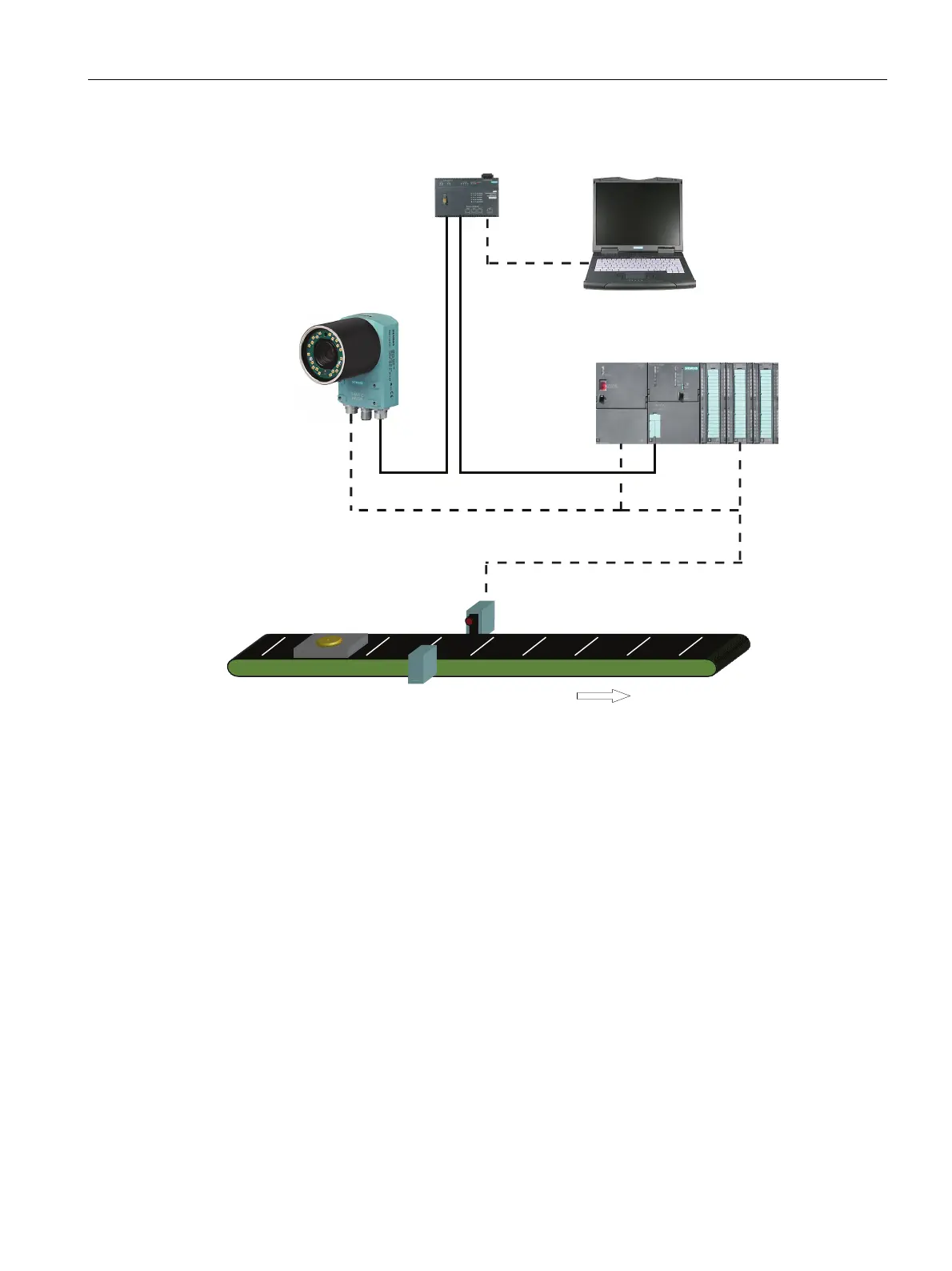

Figure 5-3 Example: System setup of the reader as PROFINET IO device and FB79 or Ident profile
System characteristics
● There is a connection to a PROFINET IO compliant automation system via Ethernet and
a switch.
● The reader is controlled by the automation system.
● The results from the specimens are output to the automation system via PROFINET IO.
● The reader is triggered either via the digital I/O, PROFINET or by the integrated auto-
trigger function.
● A PC/programming device is connected via Ethernet and a switch to allow adjustment of
the device.
