Operator control and monitoring
9.2 Working with the user interface
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
213
9.2.9 Info
The Information task consists of three sections:
● Statistics
● Diagnostics
● Device information
Statistics
This part of the dialog shows you the statistics for recognition of the codes/code sequences
which are currently active.
Note
Quality statistics
Verification errors are not recorded in the quality statistics.

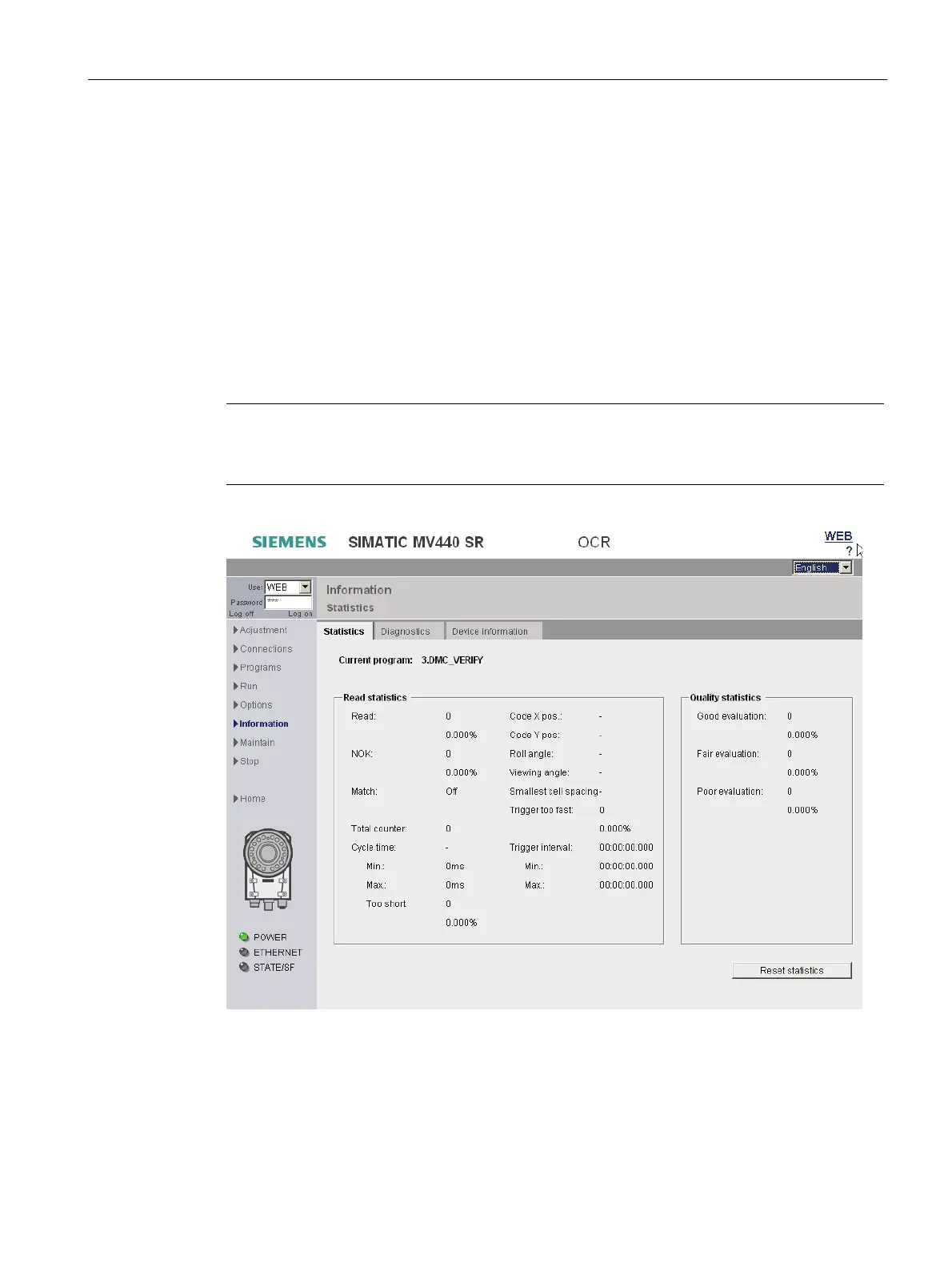

Figure 9-37 Info - "Statistics" tab
In this part of the dialog, you will see statistical values on the reading of the codes and read
quality. The meaning of the individual displays is explained in the online help that you can
access with the "Help" button.
