Network and system interfacing
5.9 System setup reader and WinCC flexible
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
109
5.9 System setup reader and WinCC flexible
/LJKWEDUULHU
&RQYH\RUV\VWHP
2EMHFW
&RQYH\RUGLUHFWLRQ
(WKHUQHWFDEOH
(WKHUQHWFDEOH
3RZHU,256FDEOH
$XWRPDWLRQV\VWHP
3&SURJUDPPLQJGHYLFHZLWK
XVHULQWHUIDFH
(WKHUQHWFDEOH
6ZLWFK
+0,3DQHOHJ
03
$60
352),%86b'3
9'&
VXSSO\YROWDJH
$60FDEOH

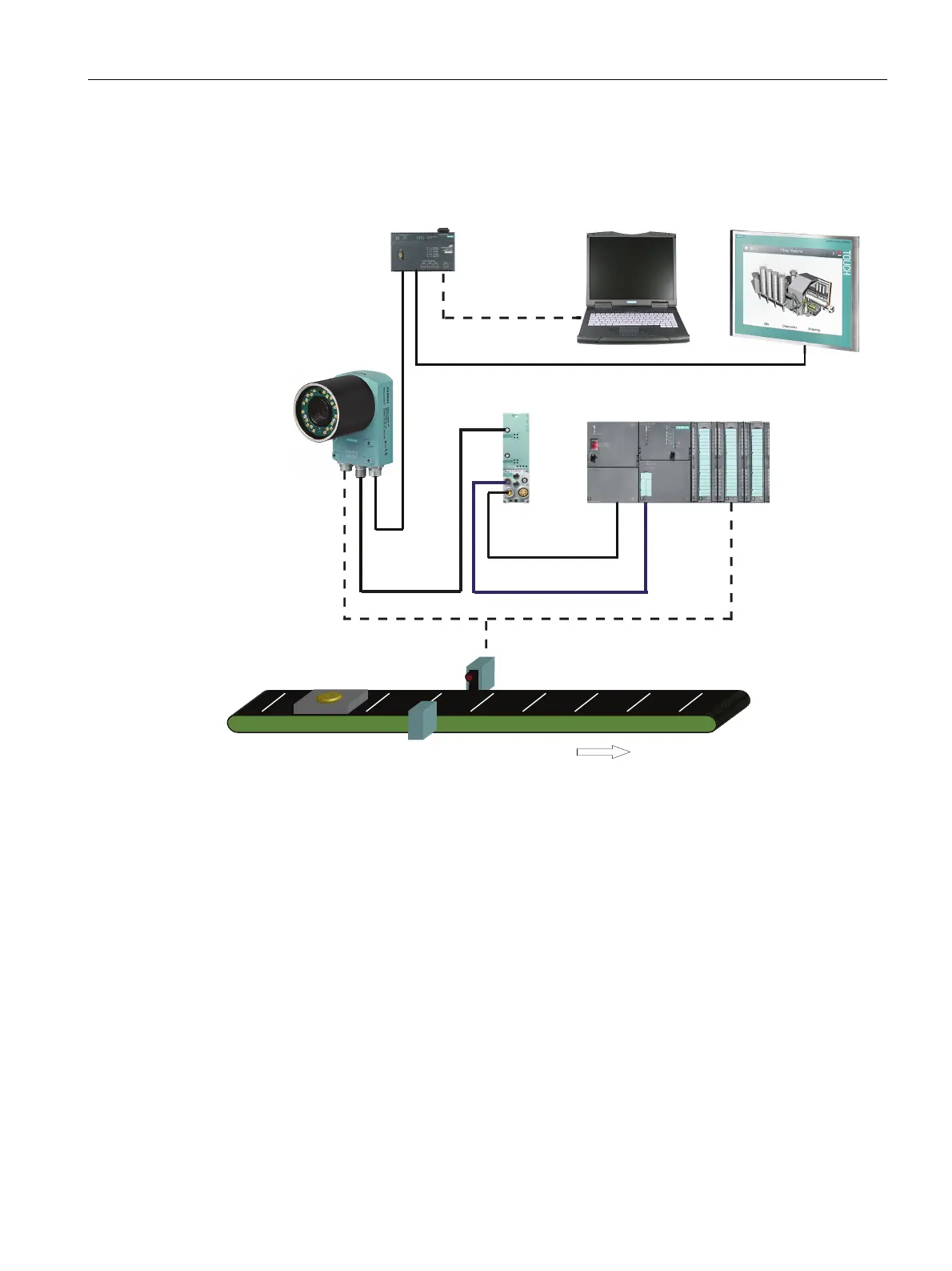

Figure 5-8 Example: System setup reader with WinCC flexible
System characteristics
● The image is displayed on the Web pages of the reader (see also "System setup for
read
er and HTML browser (Page 110)for WinCC flexible on a PC wi
th WinCC flexible, an
HMI Panel MP 277 or MP 377.
● The results from the reader are obtained and displayed by WinCC flexible via a
connection to the automation system.
● A PC/programming device is connected via Ethernet to allow adjustment of the device.
