4.2 Code verification
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
47
4.2.3.3 Examples of defects in the marking quality

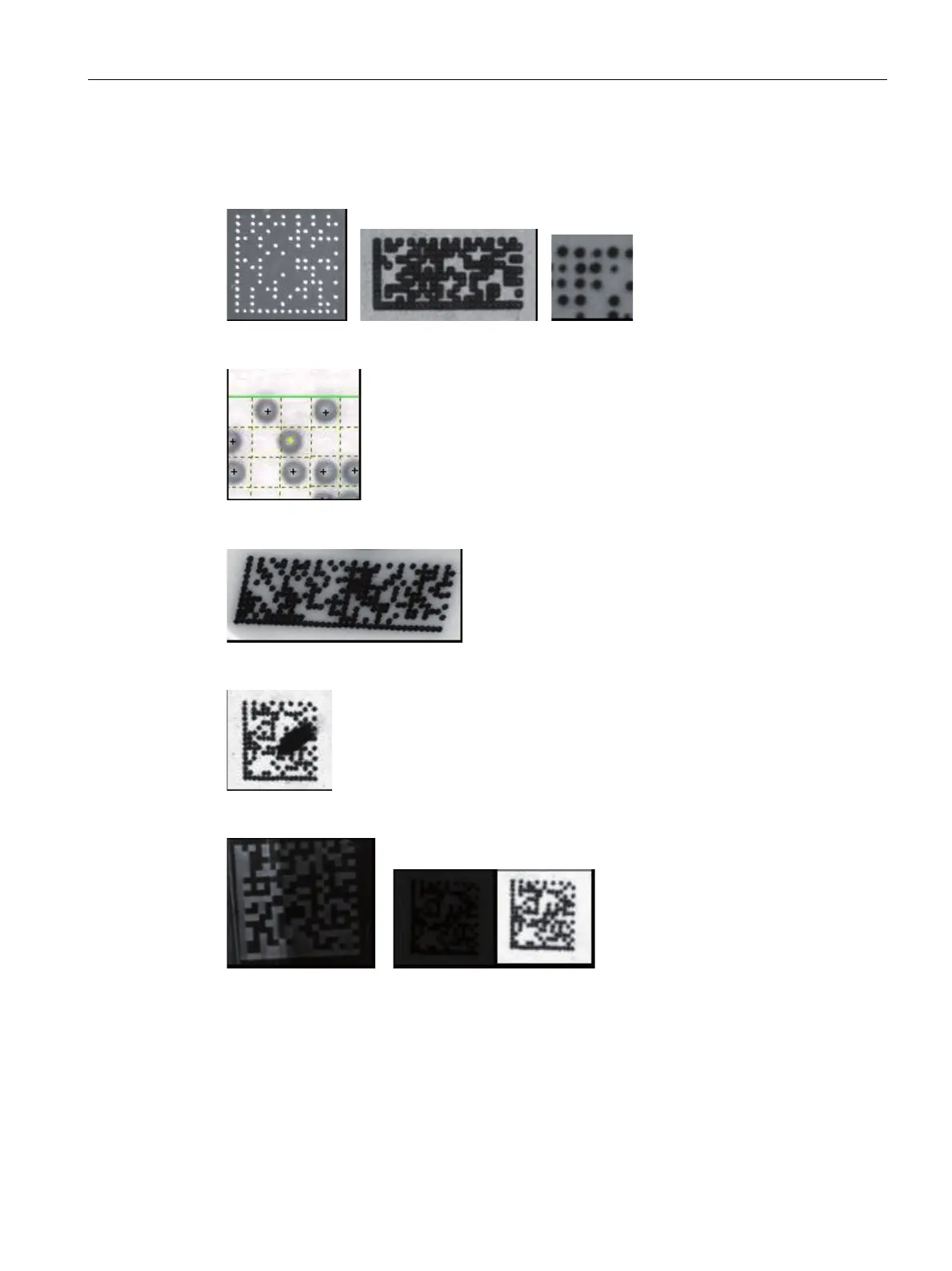

The following pictures show examples of defects in the marking quality:
Figure 4-4 Incorrect or non-uniform cell size in the marking
Figure 4-5 Incorrect or non-uniform cell position in the marking
Figure 4-6 Incorrect overall geometry of the marking
Figure 4-7 Damaged surface of the marking or part
Figure 4-8 Very little or non-uniform contrast in the marking
