9.2.5.2 Image acquisition and decoder program steps
Image acquisition step - "Image settings" tab
Note
Detailed description of parameters in the online help
For a detailed description of the parameters and possible values, refer to the online help.

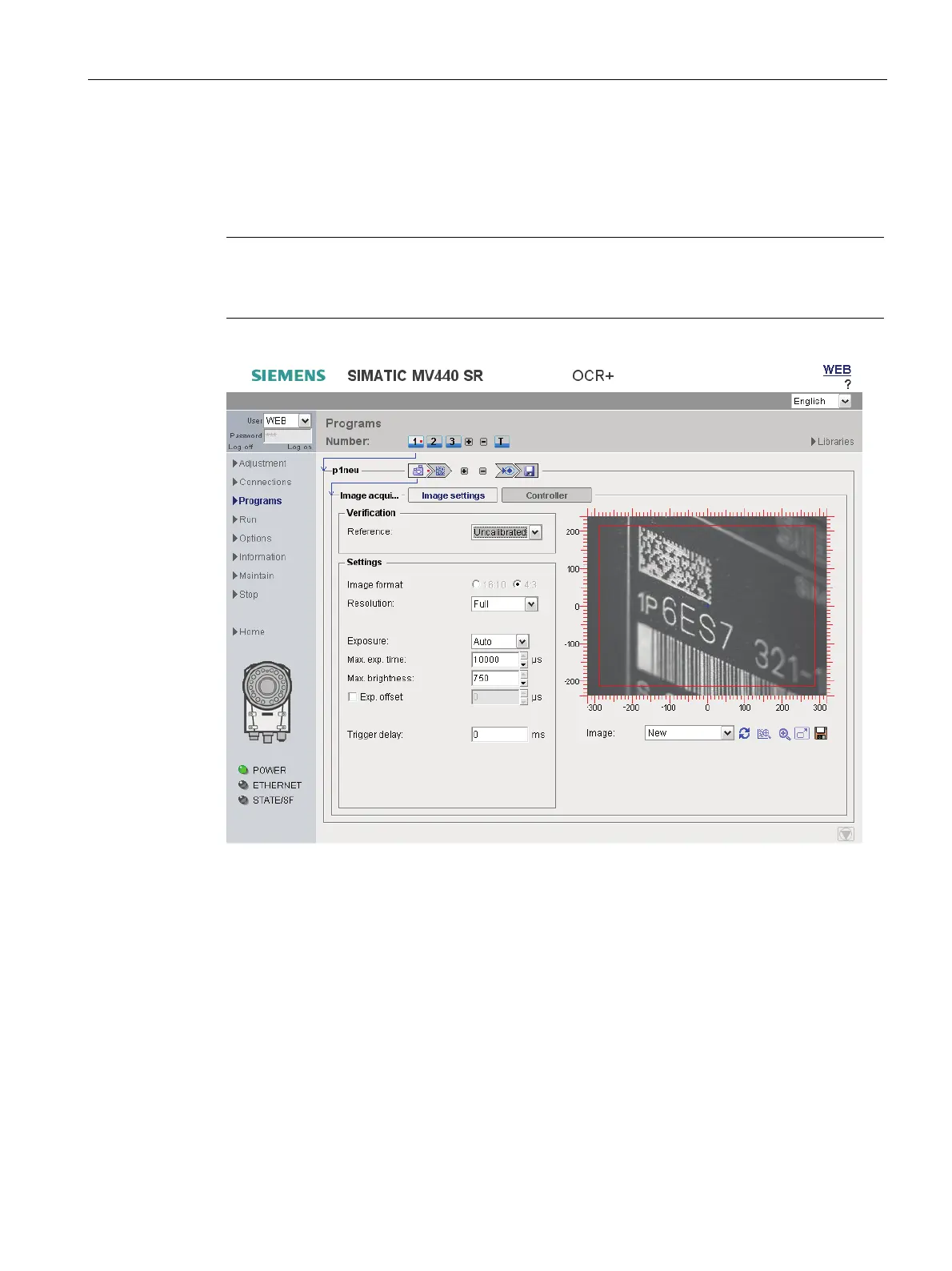

Figure 9-14 Image acquisition - "Image settings" tab
On the "Image settings" tab, you define all the settings which affect image acquisition:
● Image format
● Resolution
● Exposure time
● Brightness
● Correction of automatically calculated shutter speed
● Trigger delay
● Image distortion correction
You can view the result of your settings "live" in the image control.
