3.6 System components
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
23
3.6 System components
The following schematic shows a typical system structure with a SIMATIC MV440 reader.
$60
352),%86'3
b9b'&
VXSSO\YROWDJH
$60FDEOH
&RQYH\RUV\VWHP
/LJKWEDUULHU
3&SURJUDPPLQJGHYLFHZLWK
8VHULQWHUIDFH
&RQYH\RUGLUHFWLRQ
3RZHU,256FDEOH
$XWRPDWLRQV\VWHP
2EMHFW
(WKHUQHWFDEOH

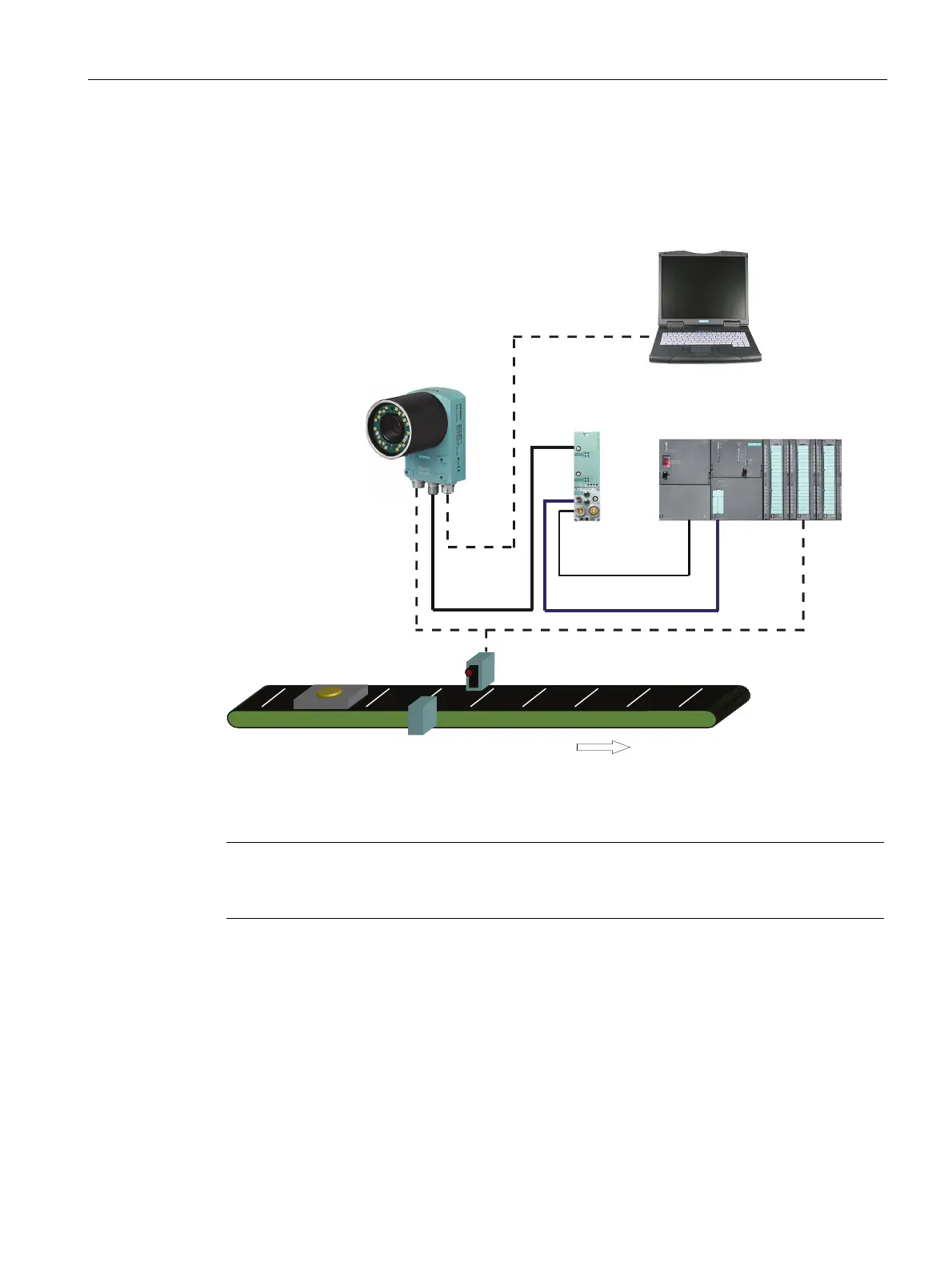

Figure 3-4 Example of a typical system configuration with conveyor system (illustration showing
SIMATIC MV440)
Note
While the SIMATIC MV440 has a separate ASM socket (middle socket in the figure), on the
SIMATIC MV420 the ASM interface function is integrated in the power IO RS-232 socket.
