5.7 System setup for reader and RFID reader on a communication module
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
107
5.7 System setup for reader and RFID reader on a communication
module
(WKHUQHWFDEOH
$XWRPDWLRQV\VWHP
$60
9'&
VXSSO\YROWDJH
3&SURJUDPPLQJGHYLFHZLWK
XVHULQWHUIDFH
$60FDEOH
$60FDEOH
:ULWHUHDGGHYLFH
HJ5)5
352),%86b'3
&RQYH\RUGLUHFWLRQ
2EMHFW
&RQYH\RUV\VWHP
/LJKWEDUULHU

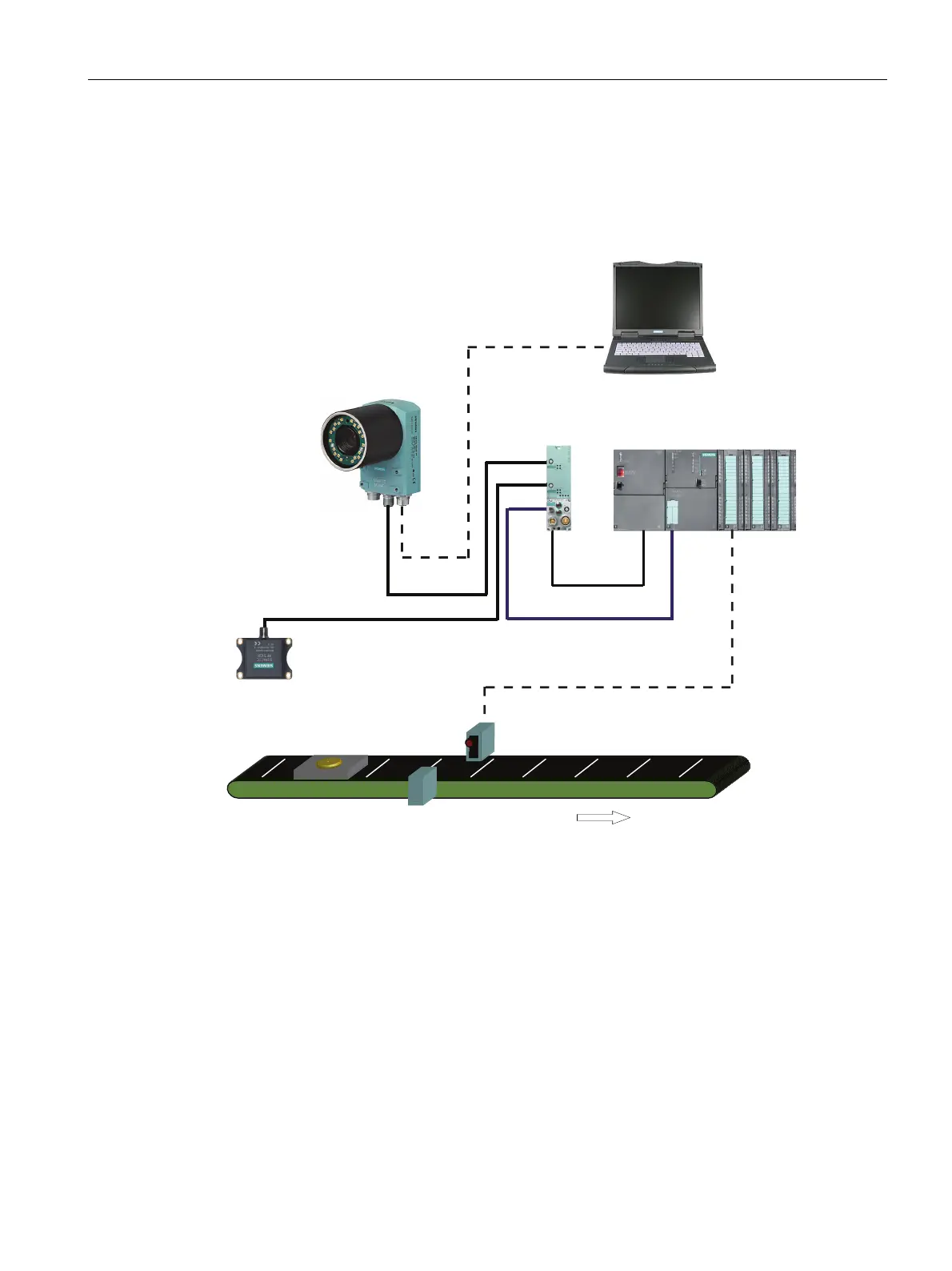

Figure 5-6 Example: System setup for reader with RFID reader on a communication module
System characteristics
● To operate in mixed mode, the reader can be connected to an RFID SLG, for example of
the RF300 series on a communication module, for example, an ASM 456.
● Both the reader and the RFID reader are integrated in STEP 7 by the function block FB45
or Ident profile.
● A PC/programming device is connected via Ethernet to allow adjustment of the device.
