6.2 Installing SIMATIC MV420/SIMATIC MV440
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
117
Mounting the SIMATIC MV420
1. Select a suitable location to install the device.
2. Drill two holes of the following dimensions at the installation site:


[
 


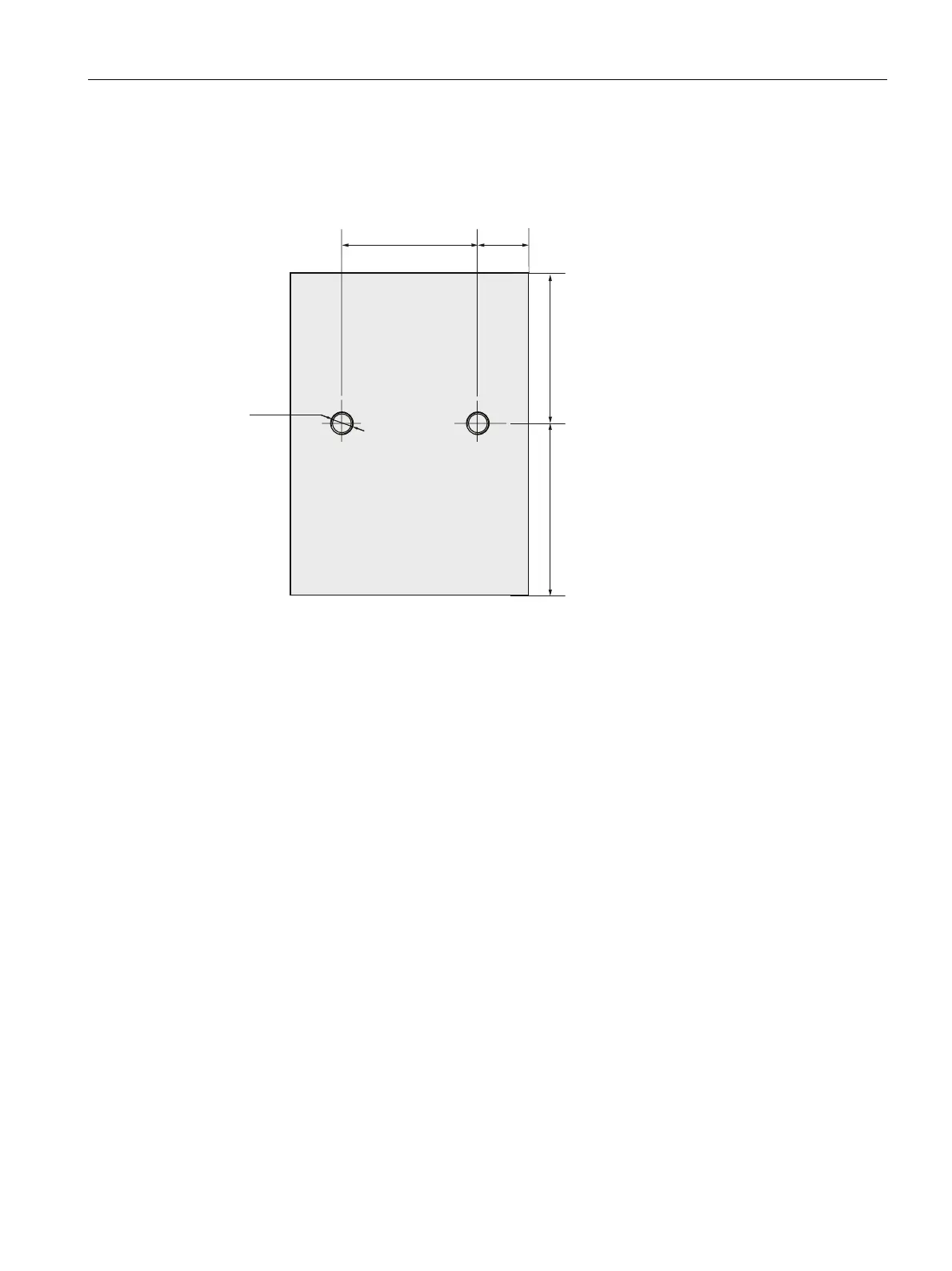

Figure 6-4 SIMATIC MV420 drilling template
3. Mount the reader.
