Operator control and monitoring
9.3 Monitoring via HTML pages
SIMATIC MV420 / SIMATIC MV440
224 Operating Instructions, 04/2013, A5E02371045-06
Live image display with links

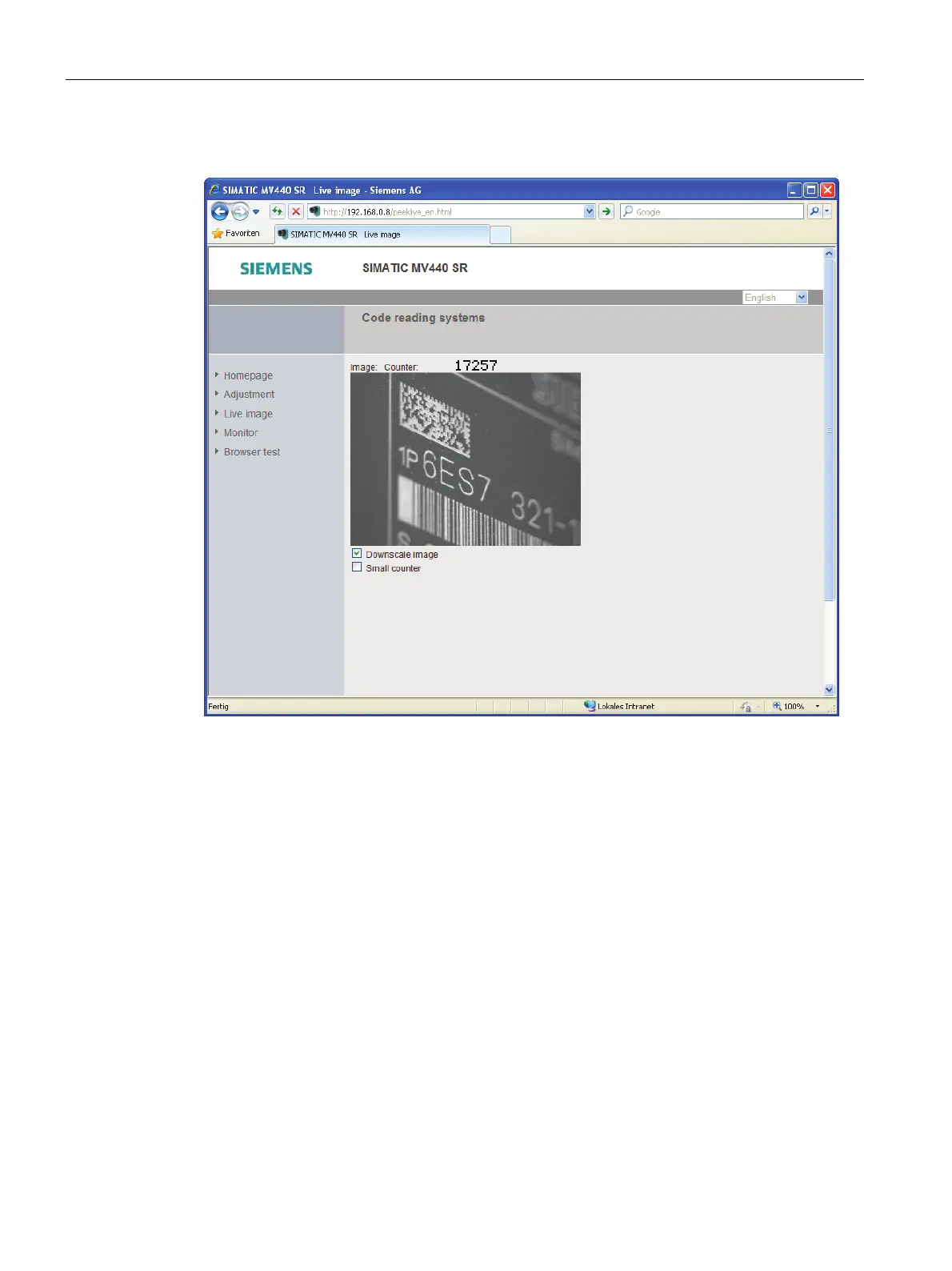

Figure 9-44 Live image display with links
Displays the images acquired by the reader in adjustment mode or processing mode. If the
visualization device provides Java script support, the displayed image is automatically
updated. With the displayed links, you can call up other pages.
