Components of the product/spares/accessories
15.2 Accessories
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
375

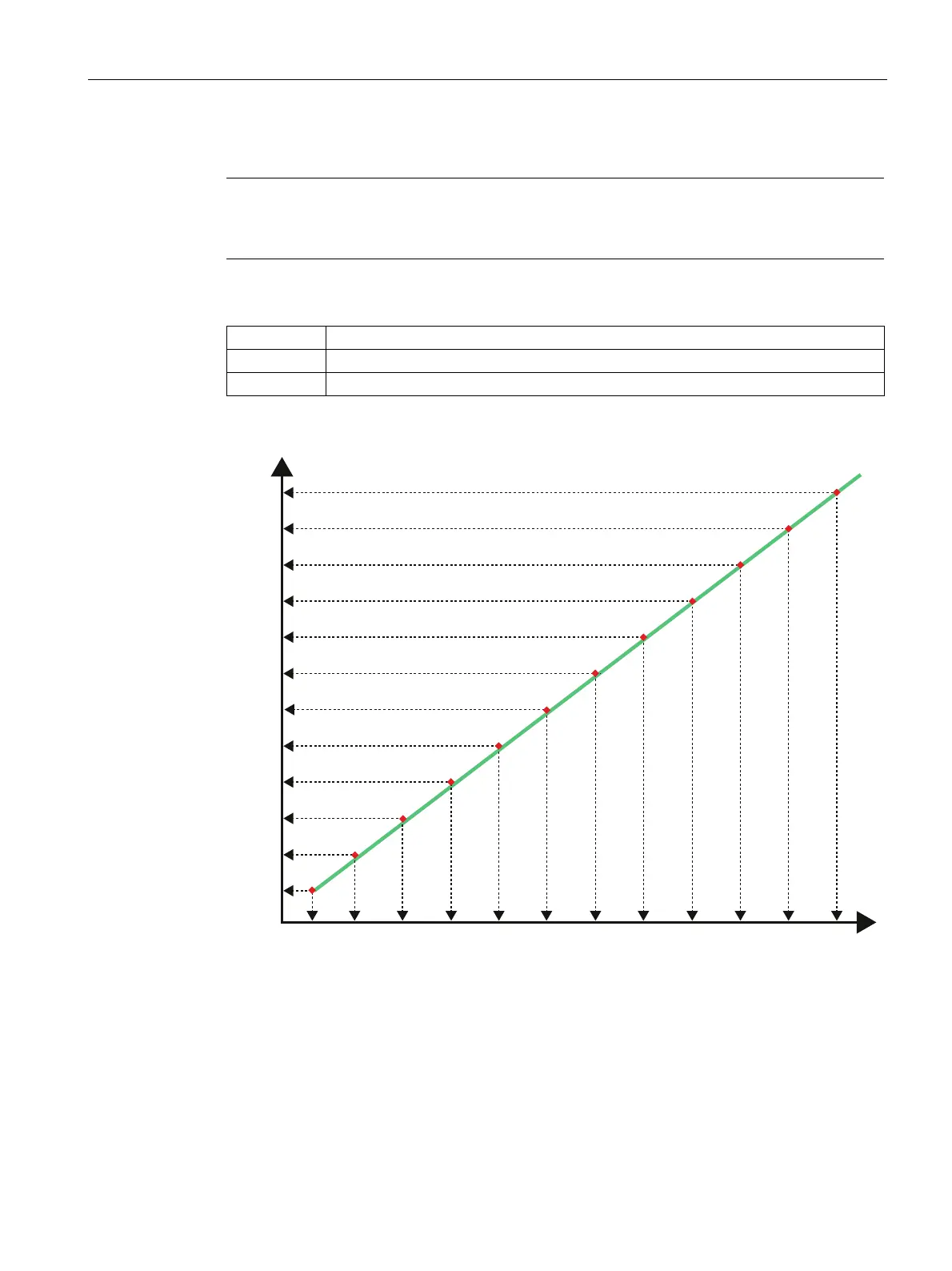

Field of vision depending on camera distance
Note
Values in the diagrams are subject to tolerances
The values in the two diagrams have certain tolerances.
X axis Height of field of vision (mm)
Y axis Width of field of vision (mm)
Diagonal Distance from camera to object (mm)
For a focal distance of 6 mm
;
<
Figure 15-1 16:10 format
