Siemens SIMATIC PCS 7 BOX - Configuration Variants for SIMATIC PCS 7 BOX

Example configuration with PCS 7 AS mEC RTX

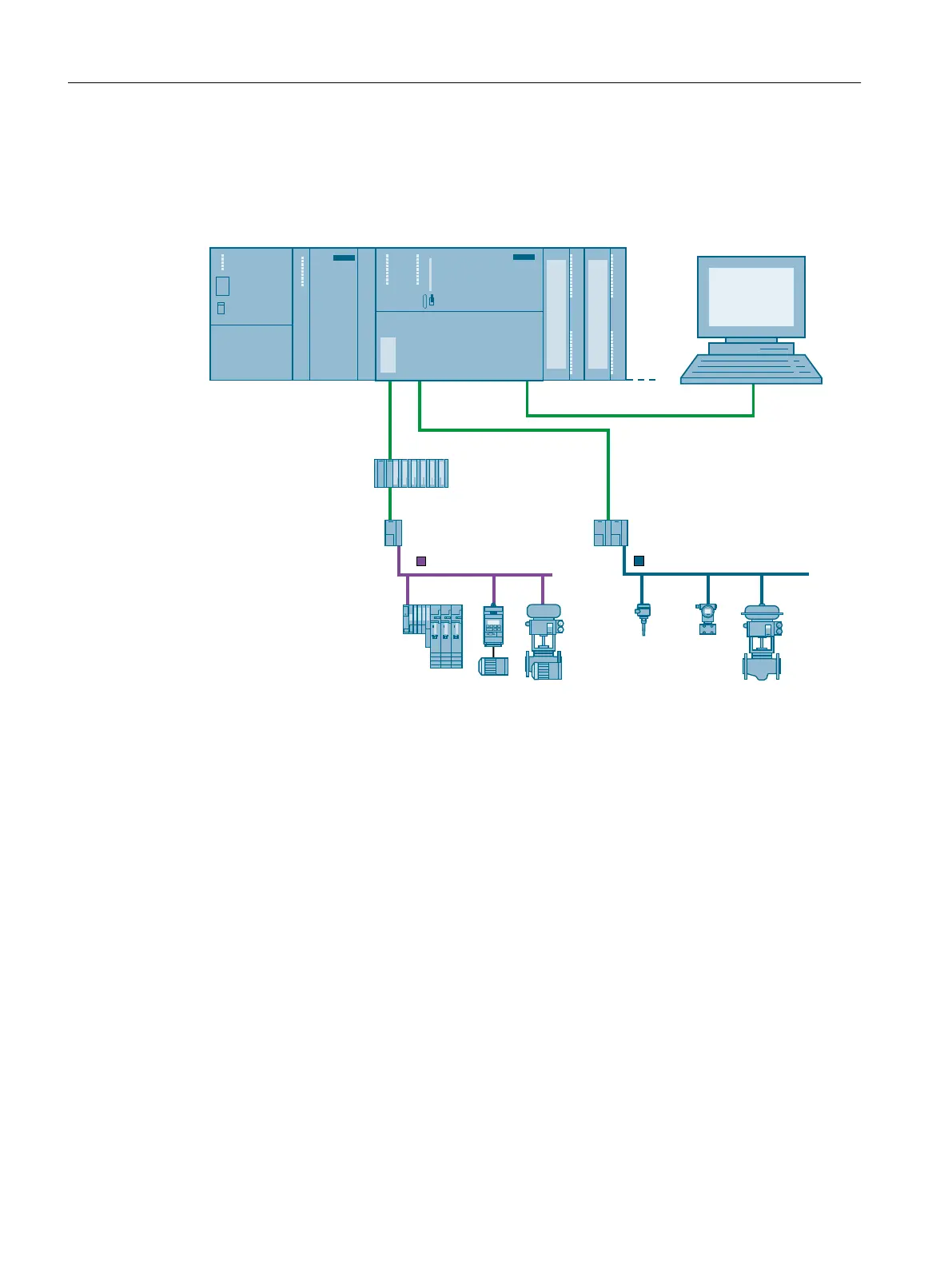

A schematic representation of the SIMATIC PCS 7 BOX with PCS 7 AS mEC RTX is provided
in the following figure:
(QJLQHHULQJ6WDWLRQ
2SHUDWLQJV\VWHP
:LQ$&57;
36
60
60
60
(03&
(70
352),%86'3
352),%863$
6,0$7,&3&66P(&
,(3%/LQN
,(3%/LQN)'&
You can connect signals via the central I/O or distributed I/O:
● Up to 8 signal modules of the S7-300 type series can be connected as central I/O.
● Connection of PROFINET IO distributed I/O via the communication processor CP 1616
You can find more information in the "S7‑300" section of the Process Control System PCS 7
Catalog Overview; Released Modules documentation.
Additional information
Operating instructions Embedded Automation; S7-modular Embedded Controller
