Configuration
5.2 Configuring workflow
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
105
As a rule, the motor selection is an iterative process as, especially with high dynamic direct
drives, the intrinsic mass of the motor type also determines the required powers. The
following figure is a flowchart of this process.

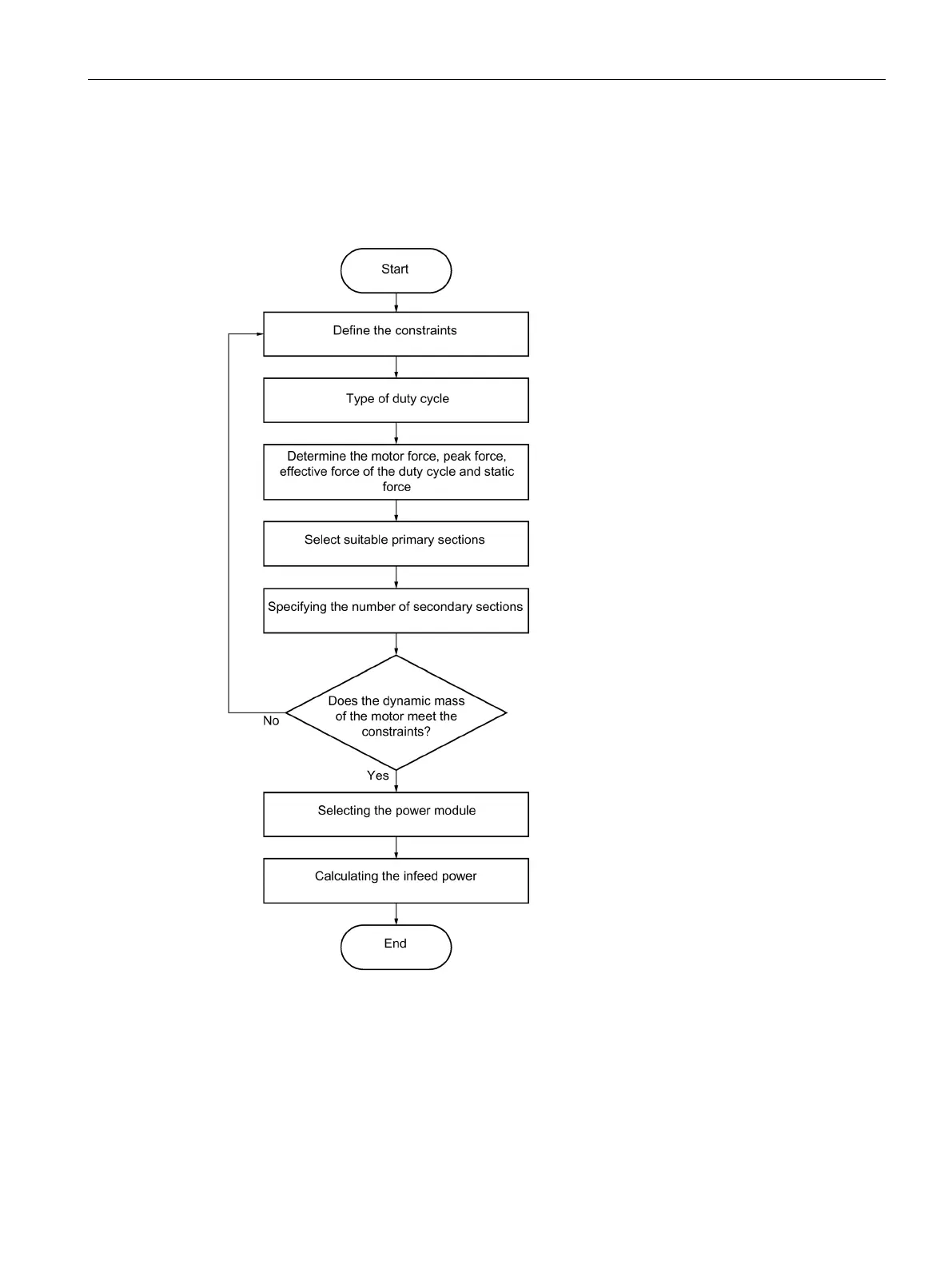

Figure 5-1 Flowchart for the drive configuration
