Electrical connection
8.3 System integration
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
493

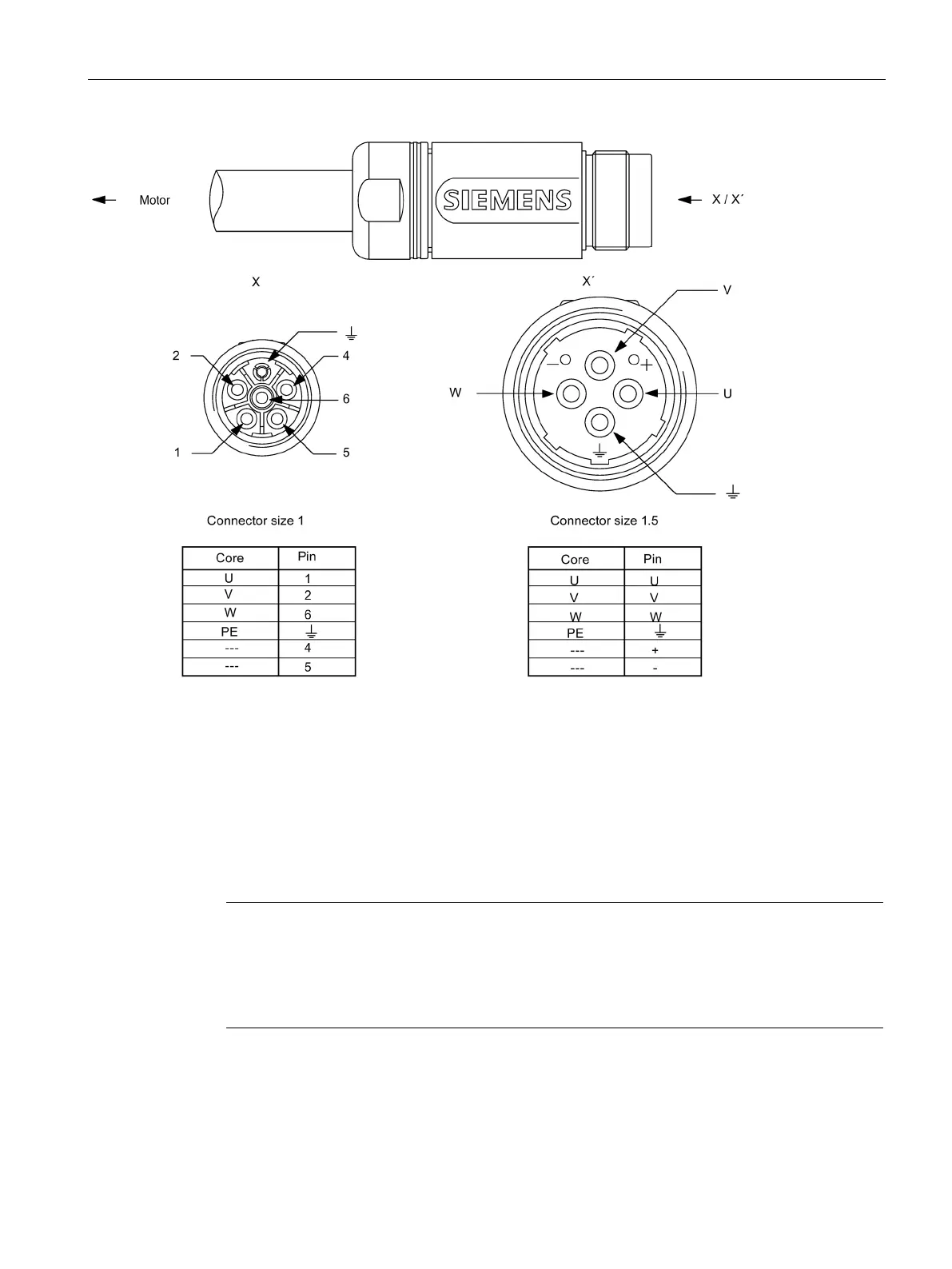

Figure 8-8 PIN assignments of the plug-in connectors for power cables
8.3.6
Terminal panel
Terminal panel and connector pin assignment
Note
Preassemble the cables before installing
If the primary section is already installed, the terminal panel may be difficult t
o access.
•
Install the cables in the terminal panel before installing the primary section in the
machine.
