Assembly drawings/dimension sheets
9.3 1FN3050, 1FN3100, 1FN3150
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
519
9.3.2
1FN3100, 1FN3150

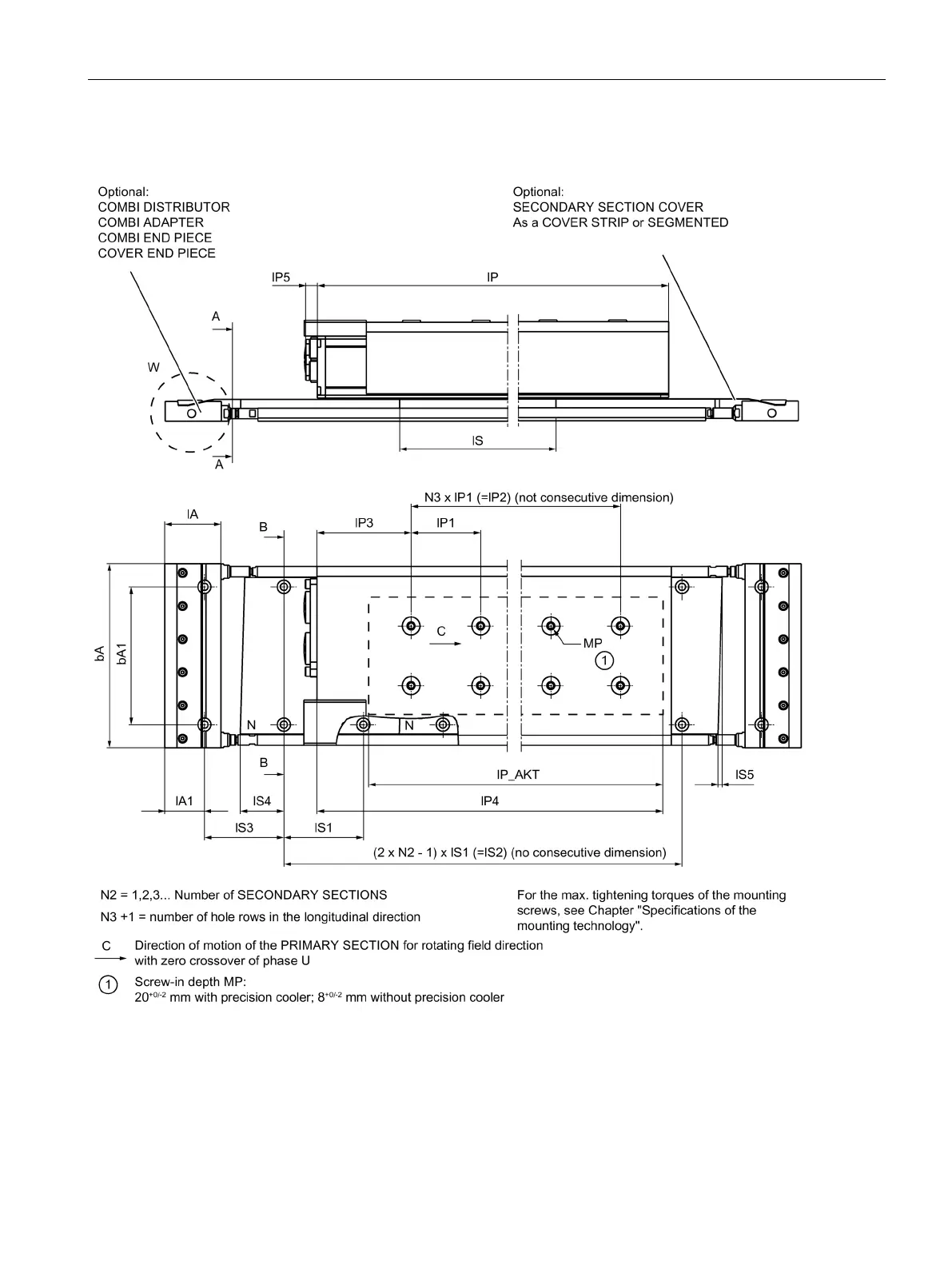

Figure 9-6 Installation dimensions for the motors 1FN3100 and 1 FN3150
