Configuration
5.4 Mounting
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
139
Sharp edges and falling objects
Sharp edges can cause cuts and falling objects can injure feet.
• Always wear safety shoes and safety gloves!
Mechanical design
Typical installation situation of a linear motor
Linear motors are built-in motors. The following figure shows a typical installation situation.

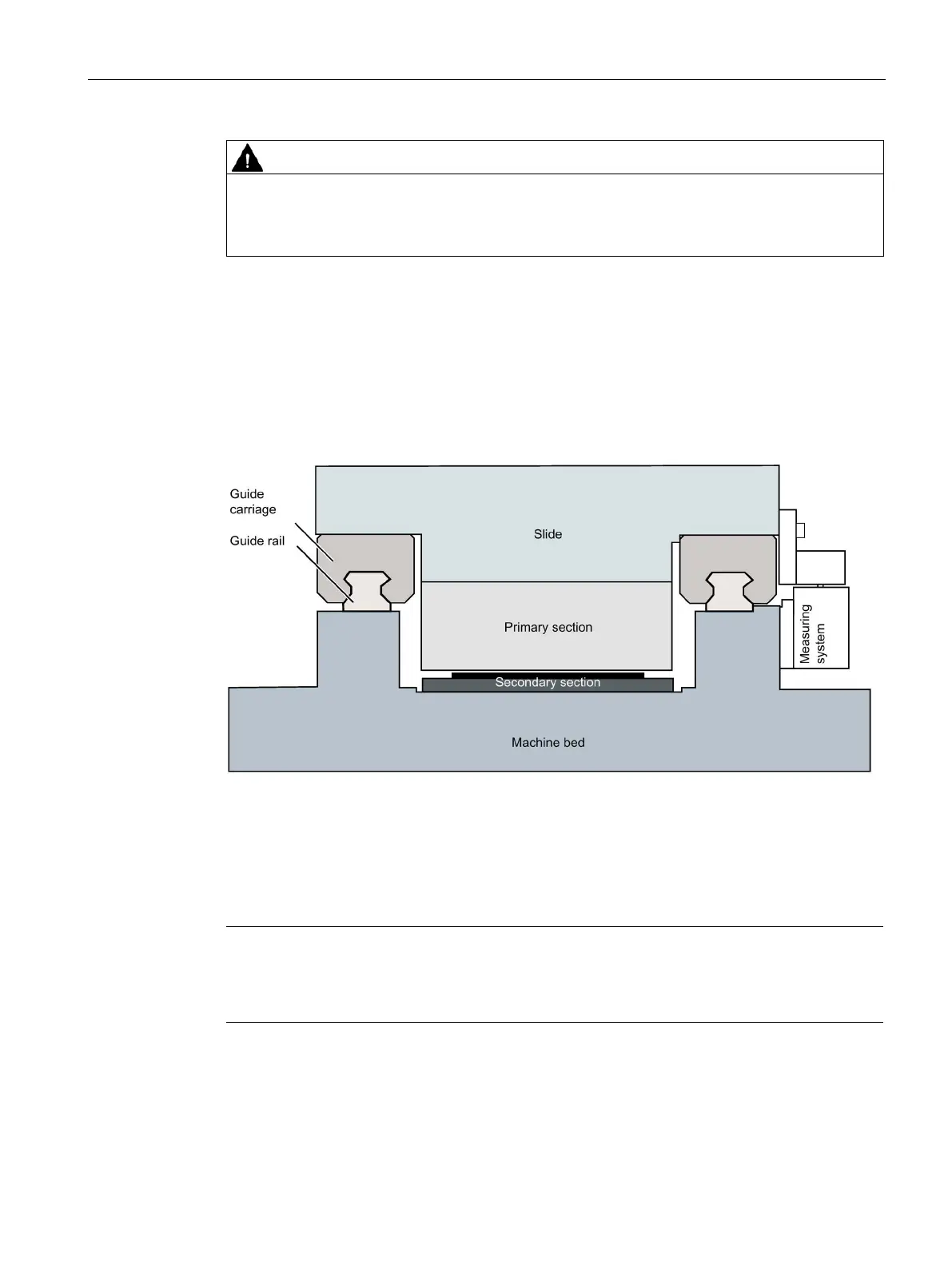

Figure 5-18 Typical installation situation of a single-sided motor with moving primary section
The attraction force between the primary section and the secondary section track can be
several 10 kN. You can find more details on this attraction force F
A
in the motor data sheet.
Note
The mechanical construction must be suitably stiff so that the functionality of the installed
motor is not impaired and to avoid direct contact between the primary section and the
secondary section.
As the air gap decreases, the forces of attraction between the primary section and the
secondary section track increase strongly!
