Description of the motor
2.6 Rating plate data
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
57
2.6
Rating plate data
Data on the rating plate

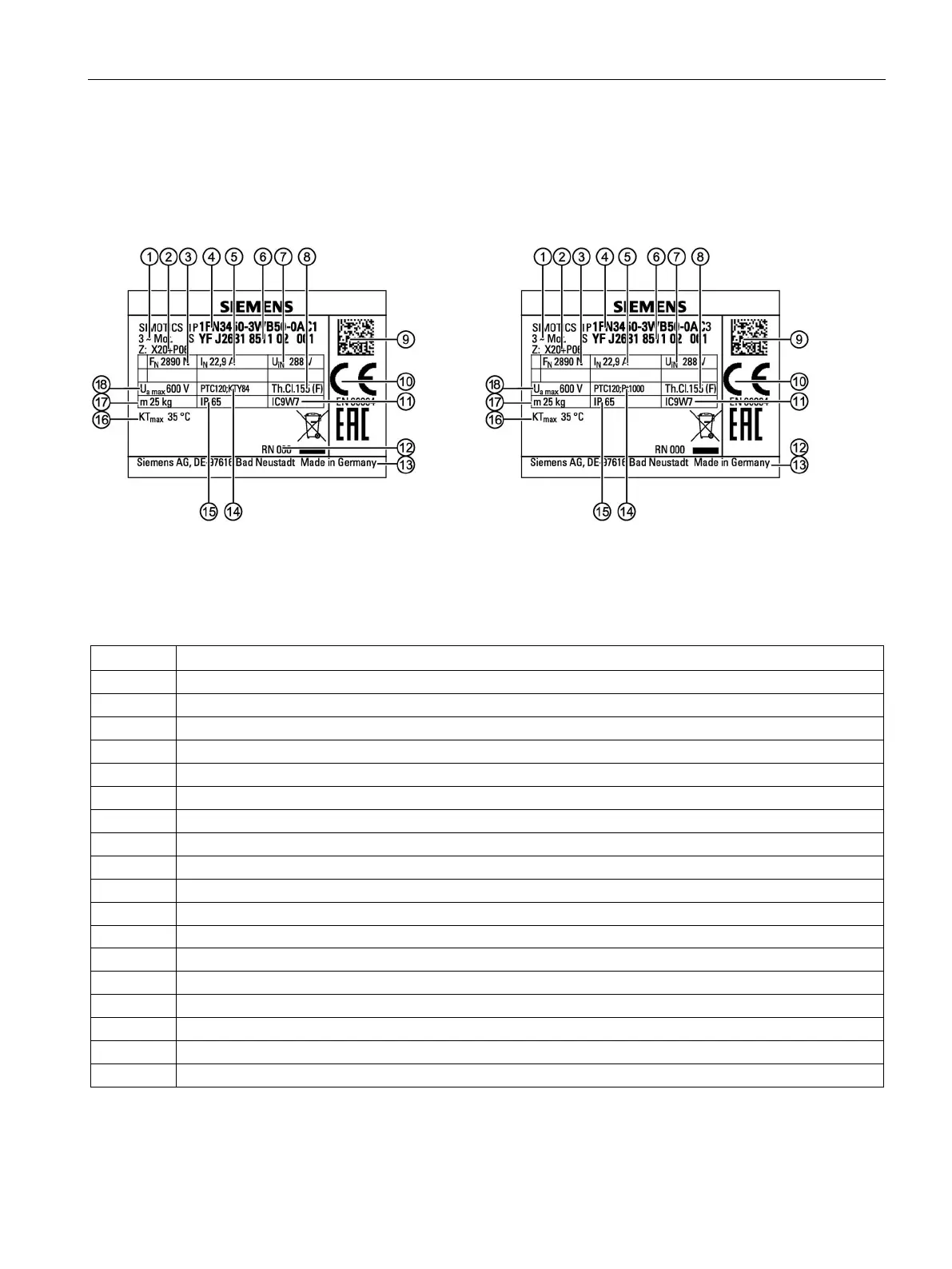

Figure 2-11 Examples of rating plates for primary sections
Table 2- 15 Elements on the rating plate for primary sections
Item
Description
1
Motor type
2
Options
3
Rated force F
N
4
Article No.
5
Rated current I
N
6
Serial number
7
Induced voltage U
iN
at rated speed v
N
8
Temperature class
9
2D code, contains the motor data
10
Approvals/conformities
11
Water cooling
12 Motor version
13
Manufacturer
14 Temperature sensors
15
Degree of protection
16
Max. coolant temperature at which the ratings are reached
17
Weight
18
Maximum permissible rms value of the motor terminal voltage U
a max
