Coupled motors
10.2 Master and stoker
1FN3 linear motors
578 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

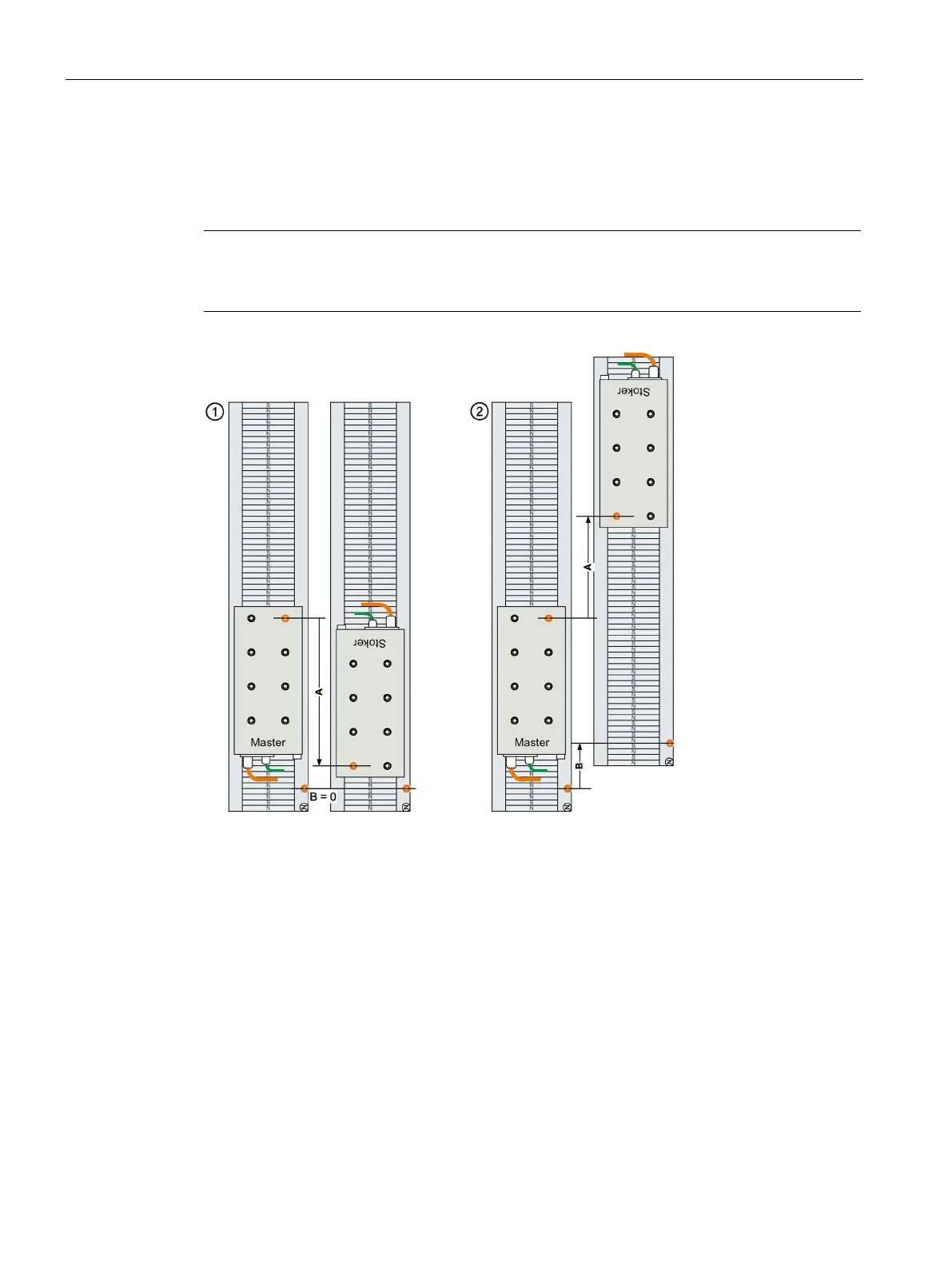

Anti-parallel arrangement
The cable outlet direction of the primary section is opposite. For this reason, two phases
must be interchanged for the phase sequence of the master and stoker.
Note
Offset factor
The offset factor i is an integer factor only.
Distance between the reference holes of the primary sections
Offset of the secondary sections with respect to one another
M Minimum distance between reference holes according to the table "Minimum distances be-
tween master and stoker" in Chapter "Janus arrangement (Page 573)"
Integer offset factor, e.g. ..., -2, -1, 0, 1, 2, ...
Pole width (see "Technical data")
Shortest anti-parallel arrangement:
B = 0
i = -1, -2, -3, ...
This arrangement permits a minimum slide length.
Distance A = M + i x 2Ï„
M
Extended anti-parallel arrangement:
Distance A = M + B + i x 2Ï„
M
