Motor components and options
4.1 Motor components
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
97

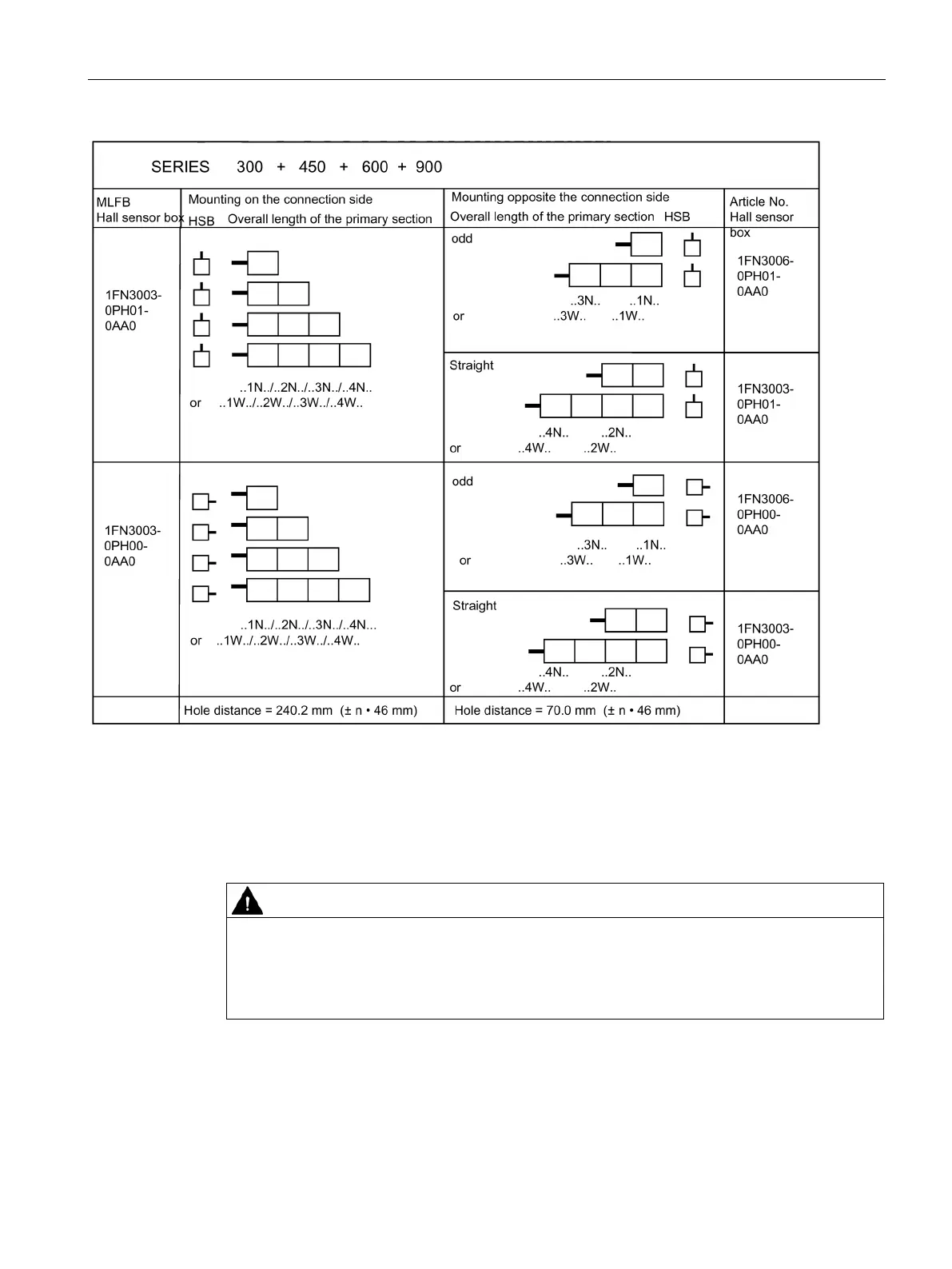

Figure 4-5 Hall sensor box mounting types for models 300 to 900
Uncontrolled motion when malfunctions occur
Malfunctions can lead to uncontrolled motion of the drive.
• Provide measures so that in the case of a fault, the maximum kinetic energy of the
machine slide can be braked.
