Assembly drawings/dimension sheets
9.5 1FN3600
1FN3 linear motors
554 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
9.5.1
Mounting the Hall sensor box
Mounting the Hall sensor onto the peak load motor 1FN3600

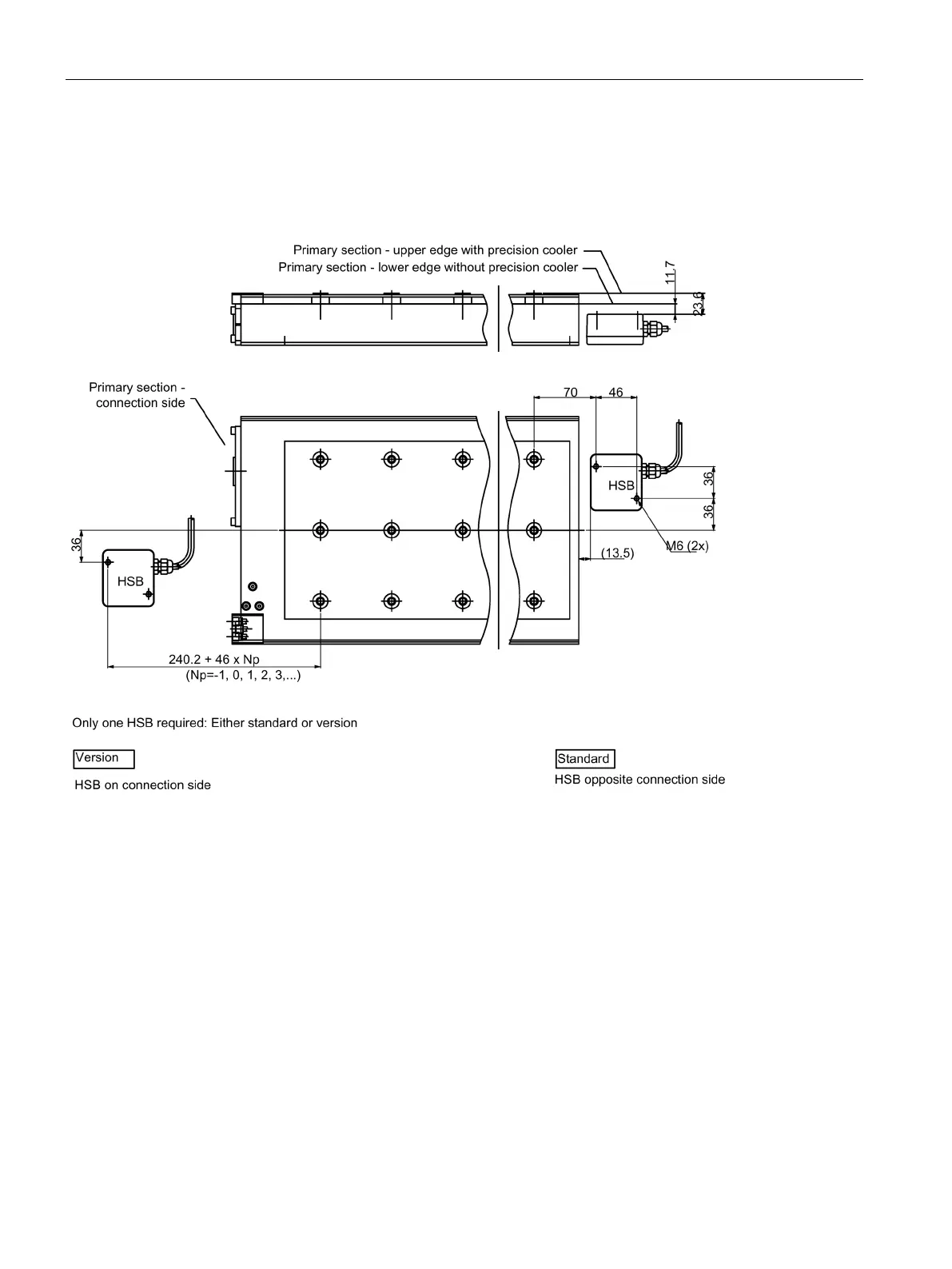

Figure 9-26 Hall sensor box (HSB) with straight cable outlet for 1FN3600 motors
