Siemens SIMOTICS L-1FN3 Configuration Manual

Coupled motors
10.2 Master and stoker
1FN3 linear motors
572 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
10.2.1

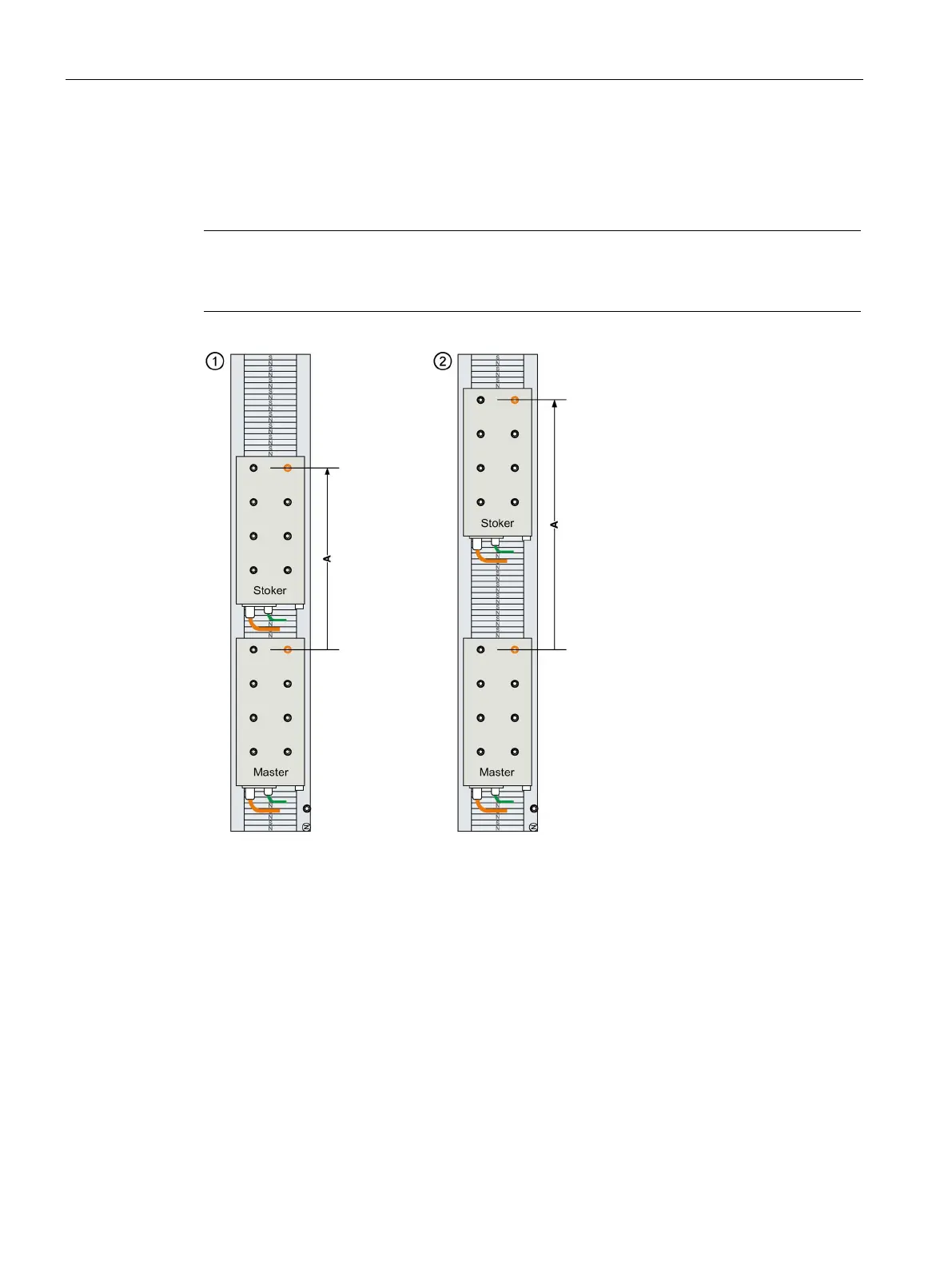

Tandem arrangement
For the tandem arrangement, the distance A between the holes must correspond to an
integer positive multiple of the pole pair width.
Note
Offset factors
Offset factors i, i
MIN
are exclusively integer factors.
A
Distance between the reference holes of the primary sections
i
Integer offset factor, e.g. 30, 31, 32, ...
i
MIN
Smallest integer permissible offset factor
τ
M
Pole width according to Chapter "Technical data and characteristics (Page 165)"
①
Shortest tandem arrangement:
Distance A = i
MIN
x 2τ
M
i = i
MIN
i
MIN
is large enough to provide enough space for supply cables between the master and stoker.
②
Extended tandem arrangement:
Distance A = i x 2τ
M
i > i
MIN
