Siemens SIMOTICS L-1FN3 Configuration Manual

Assembly drawings/dimension sheets
9.3 1FN3050, 1FN3100, 1FN3150
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
531
9.3.4
Heatsink profiles

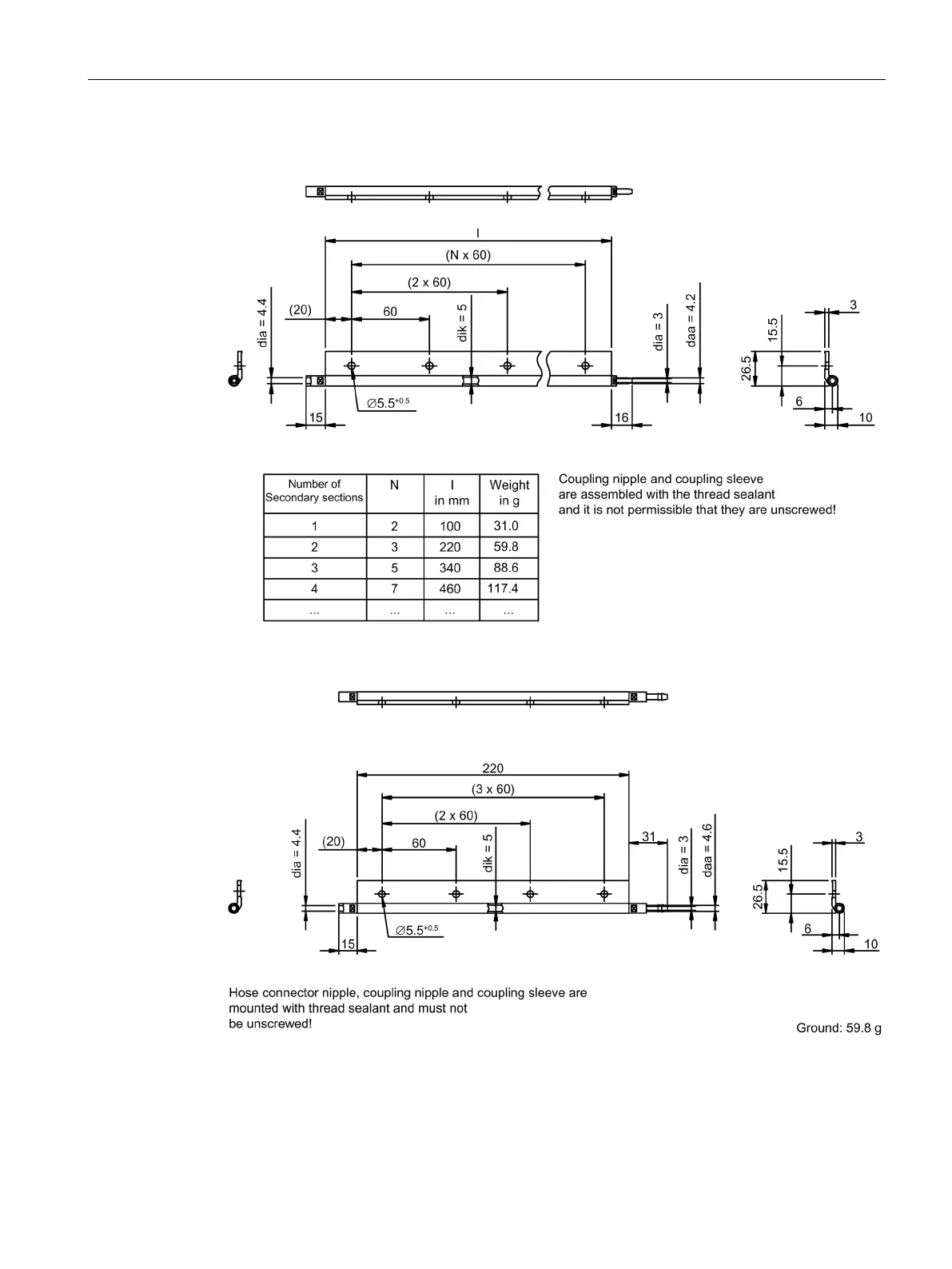

Figure 9-12 Heatsink profile with plug-type coupling for motors with sizes 1FN3050, 1FN3100 and
1FN3150
Figure 9-13 Heatsink profile with hose connector nipple, right, for motors of sizes 1FN3050, 1FN3100
and 1FN3150, example
