Siemens SIMOTICS L-1FN3 Configuration Manual

Technical data and characteristics
6.2 Data sheets and characteristics
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
471
6.2.8
Additional characteristic curves
The attraction force F
A
between the primary section and the secondary section track
depends on the air gap. The variable F
A
listed in the motor data sheets refers to the nominal

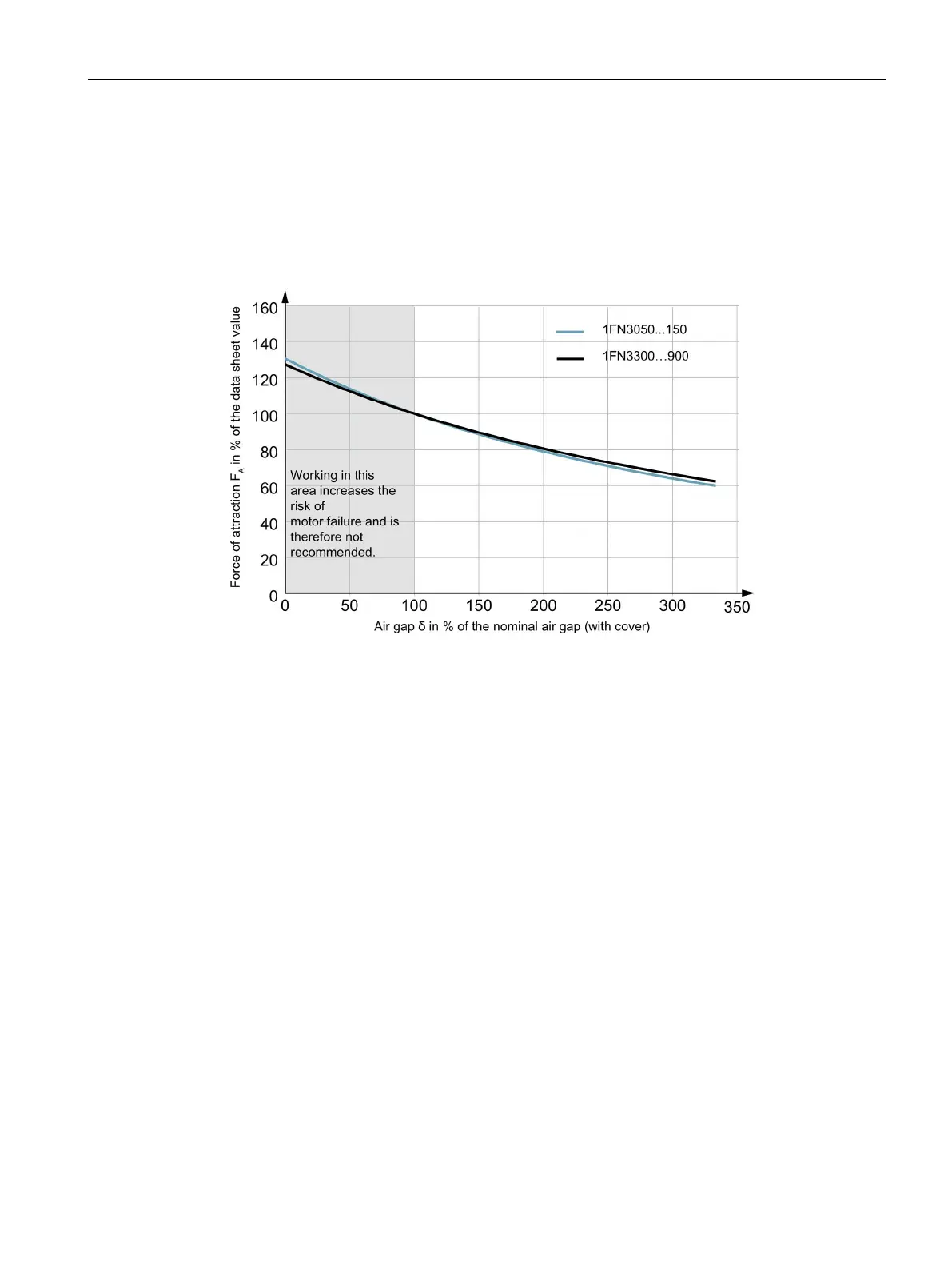

air gap. The following diagram shows the relative variation of the attraction force F
A
as a
function of the air gap. In this case, the air gap is the geometrical distance of the primary
section from the secondary section track with a cover.
Figure 6-9 Dependency of the attraction force of the air gap for motors of product family 1FN3
