Assembly drawings/dimension sheets
9.6 1FN3900
1FN3 linear motors
564 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
9.6.1
Mounting the Hall sensor box
Mounting the Hall sensor box onto the peak load motor 1FN3900

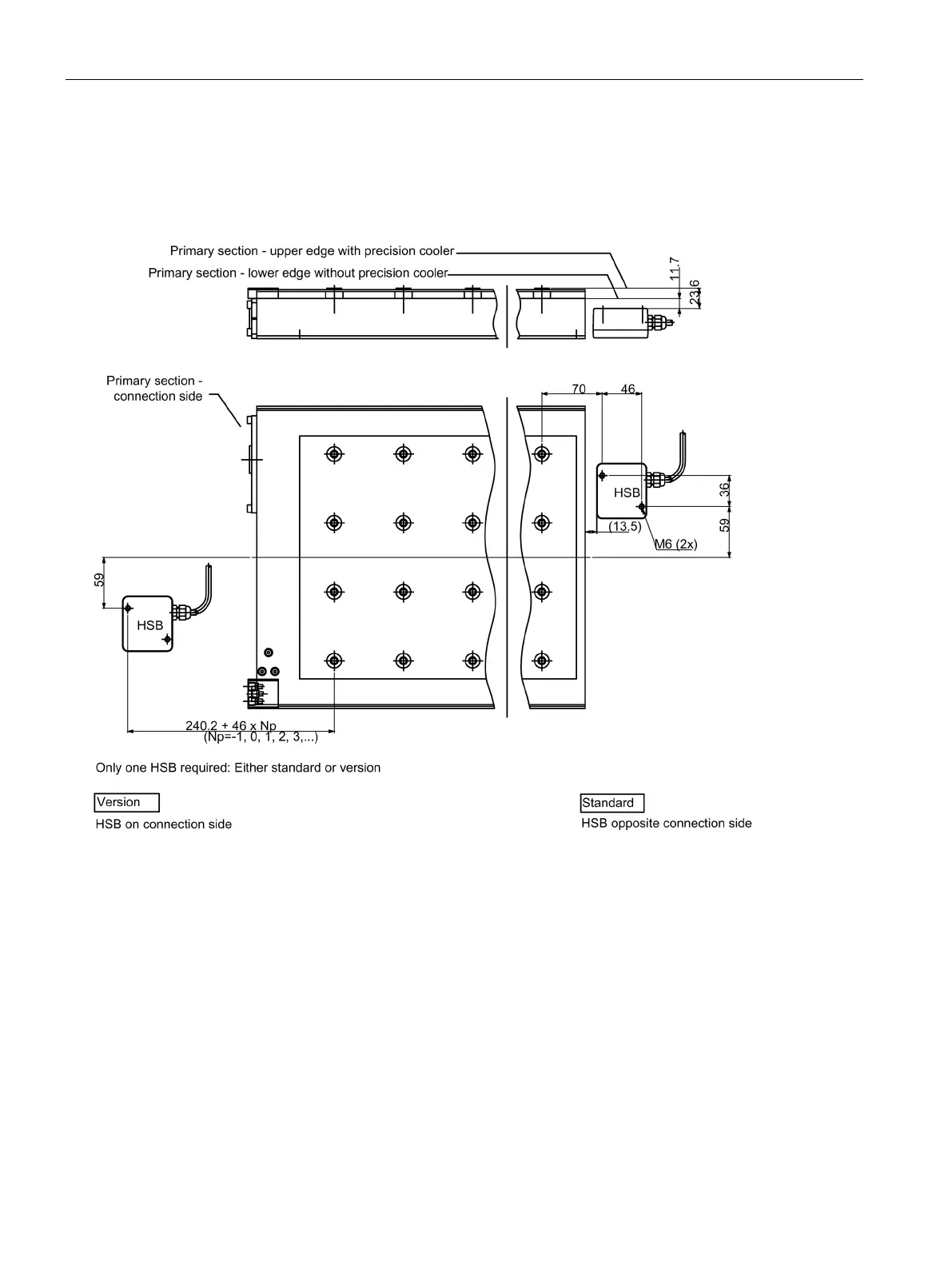

Figure 9-34 Hall sensor box (HSB) with straight cable outlet for 1FN3900 motors
