Assembly drawings/dimension sheets
9.4 1FN3300, 1FN3450
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
543
Dimensions of the secondary section end pieces of 1FN3450
Size
Variable
Unit
1FN3450-0TF00
1FN3450-0TG00
1FN3450-0TJ00
1FN3450-0TC00
Maximum length
lA
mm
58.5
58.5
Hole position (right)
lA1
mm
30
30
Hole distance to secondary section hole
IS3
mm
92
92
Maximum width
bA
mm
201
201
G 1/8 cooler connector position (height)
hA1
mm
6
–
Hole pattern (transverse)
bA1
mm
161
161
Maximum height (block)
hA
mm
20.5
17.5
9.4.1
Mounting the Hall sensor box

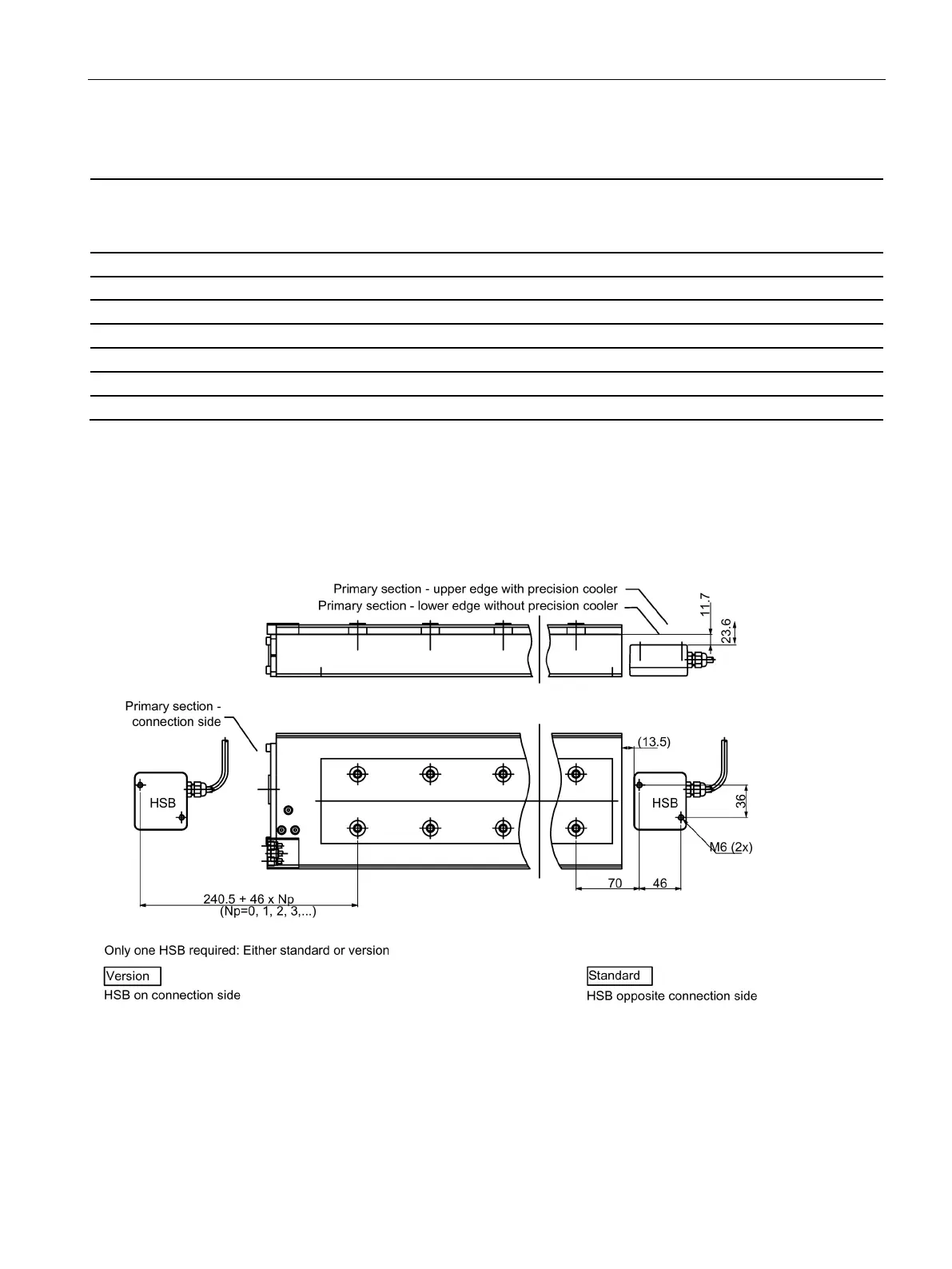

Mounting the Hall sensor box onto the peak load motors 1FN3300 - 1FN3450
Figure 9-17 Hall sensor box (HSB) with straight cable outlet for motors 1FN3300 and 1FN3450
