Description of the motor
2.3 Technical features and environmental conditions
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
35

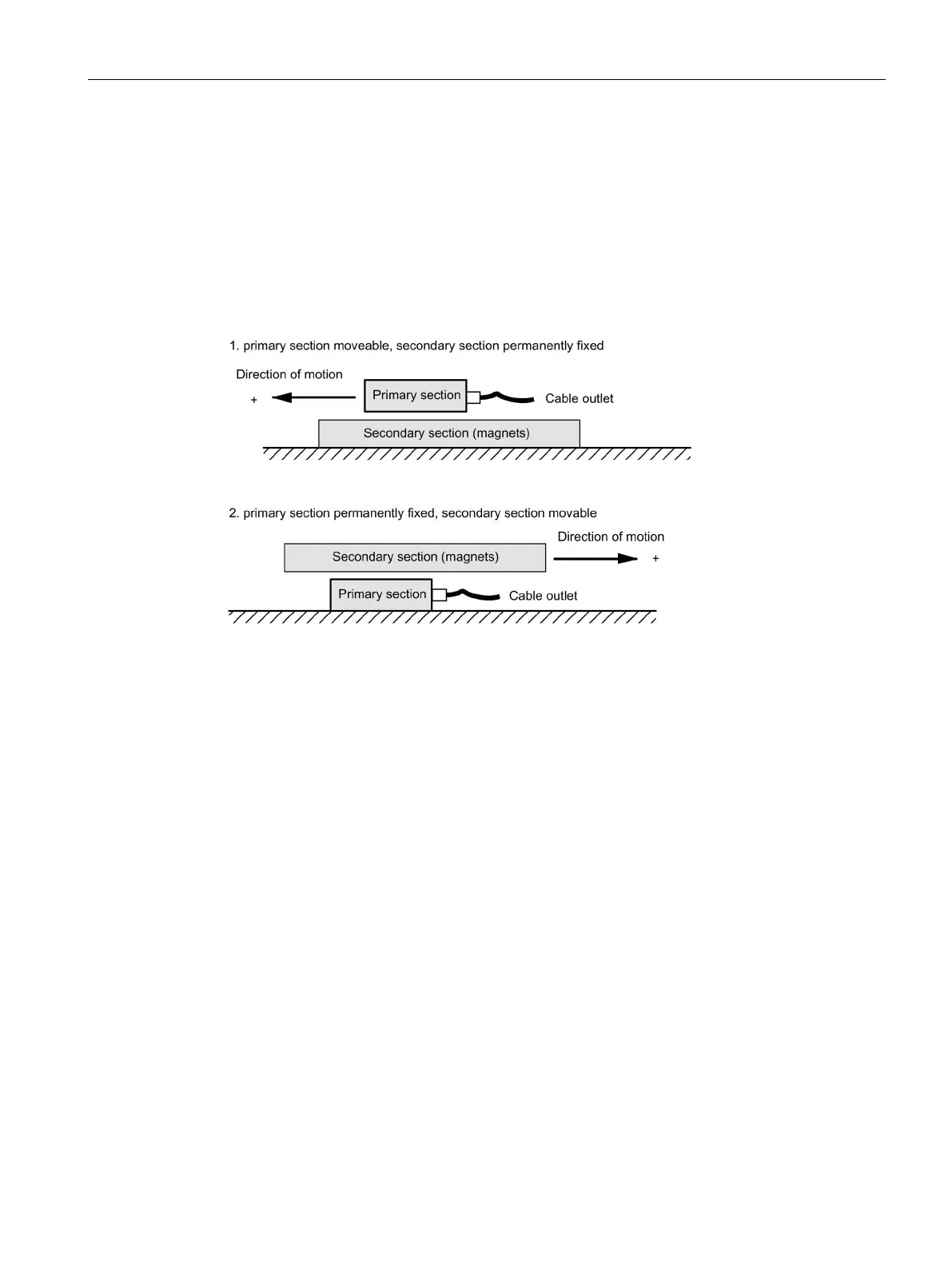

Direction of motion of the motor
Defining the traversing direction
If the primary section is connected to the terminals of the terminal box with the phase
sequence U-V-W and is supplied with current by a three-phase system with a clockwise
rotating field, the direction of motion of the primary or secondary section is positive.
