Siemens SIMOTICS L-1FN3 Configuration Manual

Coupled motors
10.2 Master and stoker
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
577
A
Distance between the reference holes of the primary sections
B
Offset of the secondary sections with respect to one another
i
Integer offset factor, e.g. 0, 1, 2, ...
τ
M
Pole width according to Chapter "Technical data and characteristics (Page 165)"

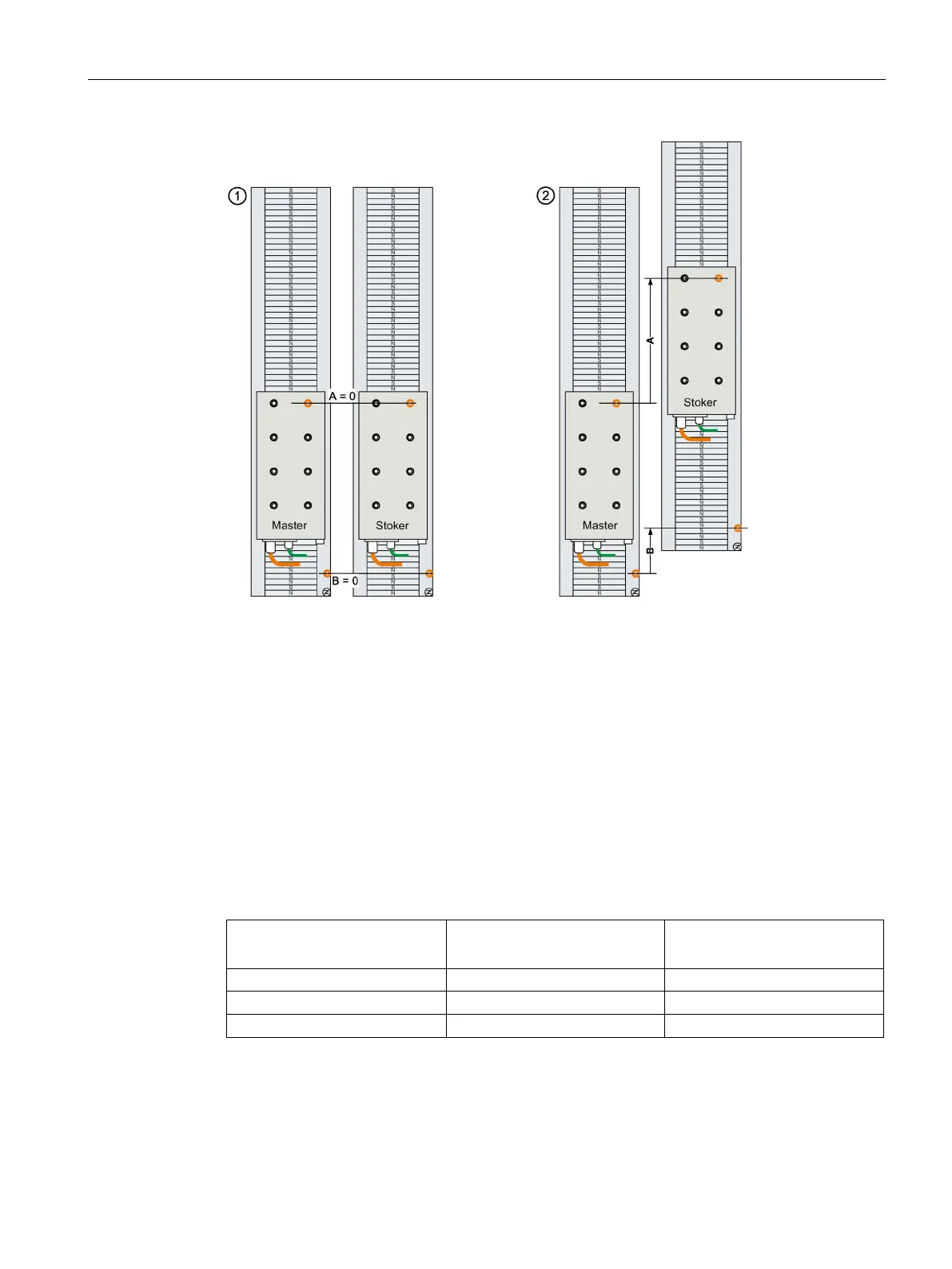

①
Shortest parallel arrangement:
i = 0 and B = 0, resulting in the distance A = 0.
This enables the simplest arrangement of the two secondary section tracks.
②
Extended parallel arrangement:
Distance A = B + i x 2τ
M
Power connection
Table 10- 4 Power connection in a parallel arrangement of two primary sections
Motor Module
Master
Stoker
U2 U U
V2
V
V
W2 W W
