Electrical connection
8.3 System integration
1FN3 linear motors
494 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
The following figures show the terminal assignment of the terminal panel for various peak
load motor types. The terminal panel of peak load and continuous load motors is identical.
The only difference is that the dimensions of the casing are larger on the continuous load
motor. However, this is of no significance for the electrical connection.
With the EN 60034-8:2002 standard the terminal markings have changed. For the old
terminal markings, see Appendix.

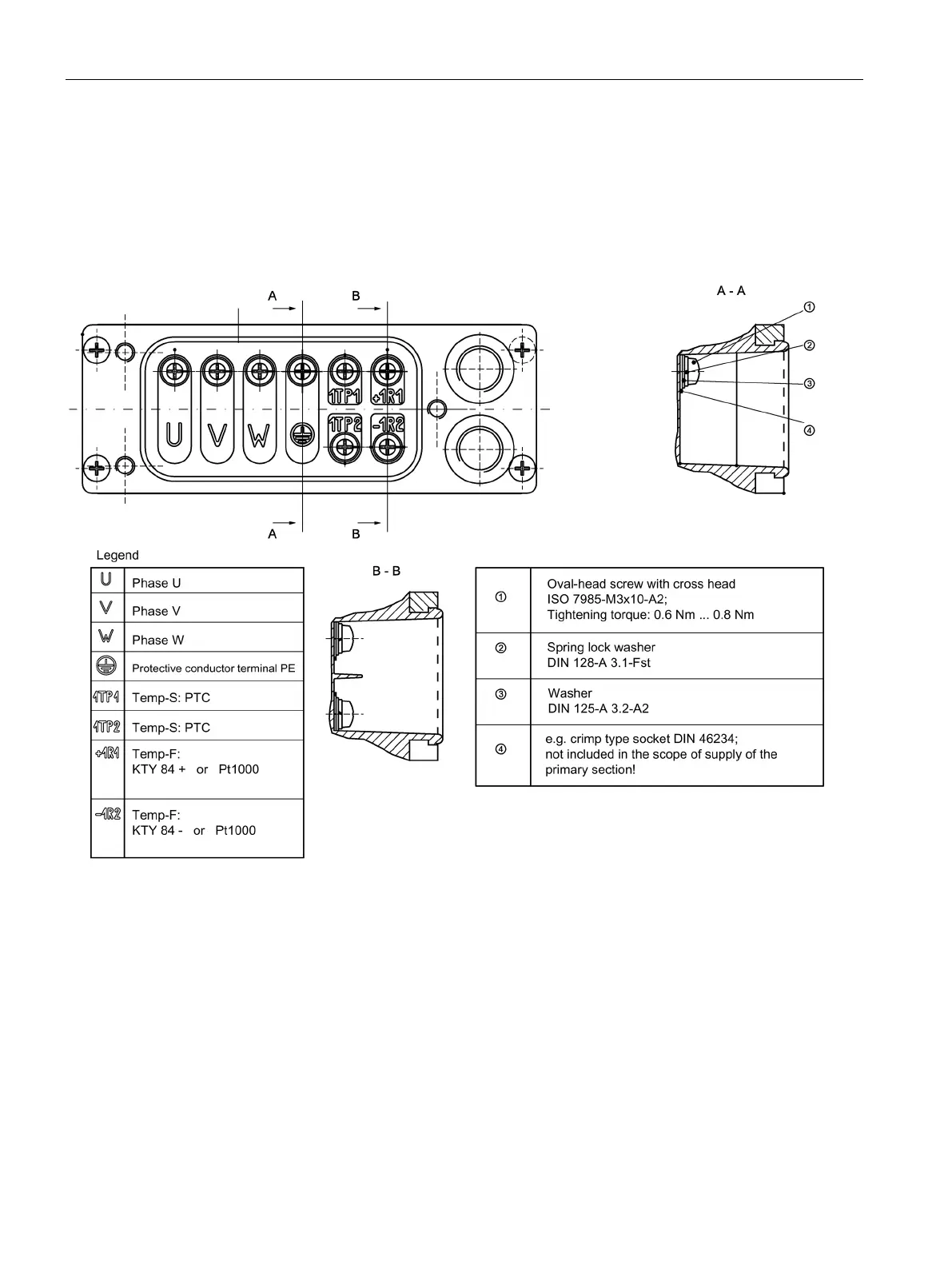

Figure 8-9 Terminal panel for the motors 1FN3100 to 1FN3150
