Siemens SIMOTICS L-1FN3 Configuration Manual

Configuration
5.4 Mounting
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
161
Position of the connections for secondary section end pieces
Connect the secondary section cooling via the G1/8 threaded connections. The G1/8 thread
connections are located on the front faces of the secondary section end pieces.
For models with combi distributors, the flow is located on one side of the secondary section
track and the return on the opposite side, see also the following figure.

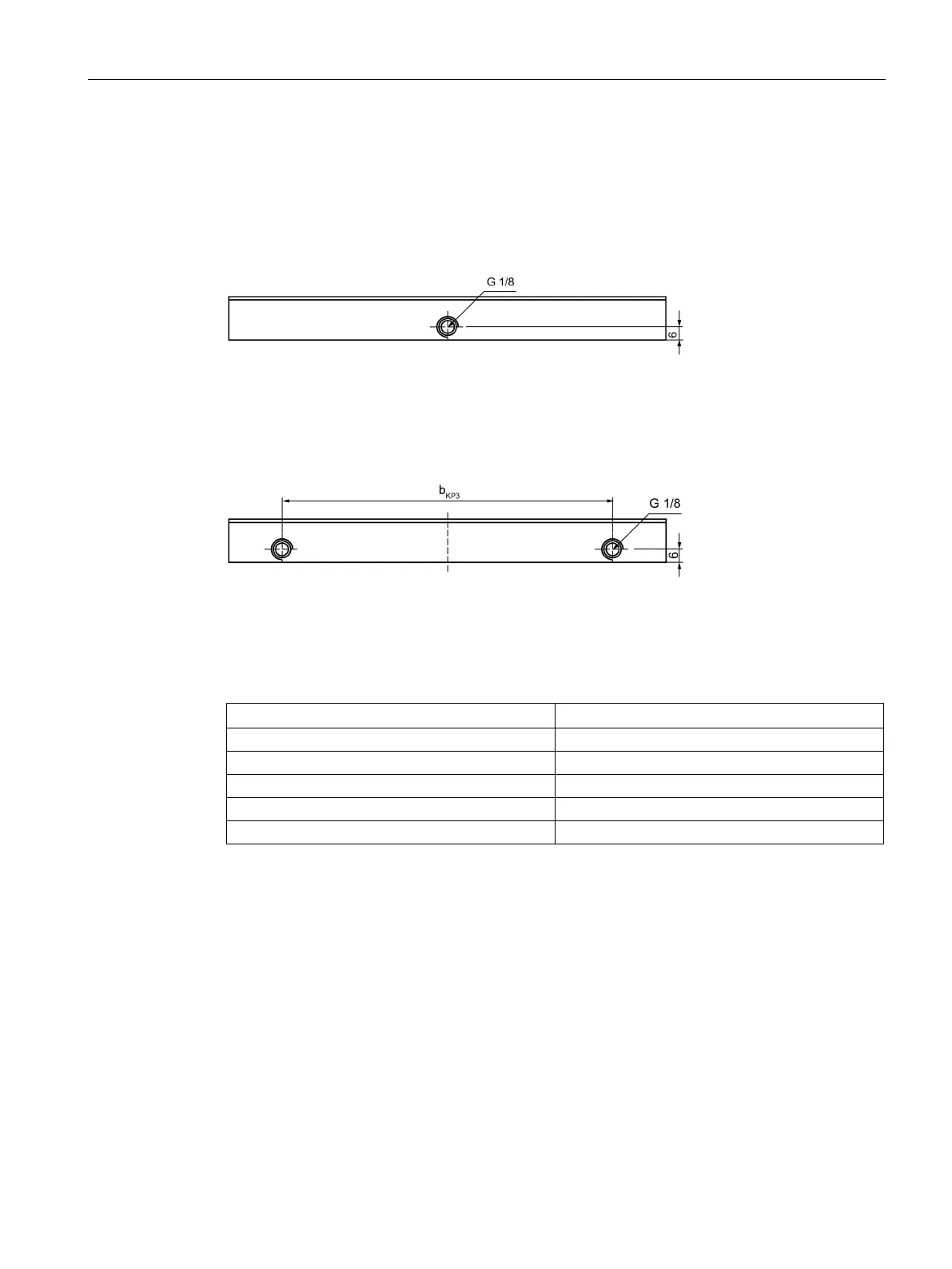

Figure 5-31 Position of the connection elements of the secondary section cooling system with combi
distributor (face view)
For models with combi adapter / combi end piece, the coolant flow and return are located on
the combi adapter, see the following figure.
Figure 5-32 Position of the connection elements of the secondary section cooling system with combi
adapter (face view)
Table 5- 6 Connector dimensions of the secondary section cooling system with combi adapter
(available only for 1FN3050 … 450)
Motor type
b
KP3
in mm
1FN3050
40
1FN3100
40
1FN3150
100
1FN3300
50
1FN3450
100
Direct connection
To connect plastic hoses directly, you can order heatsink profiles with hose connector
nipples from Siemens. The inside diameter of the hose must be 5 mm. Connect the hose
and the hose connector nipple with a hose clamp.
