Description of the motor
2.5 Selection and ordering data
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
43
Connection cover

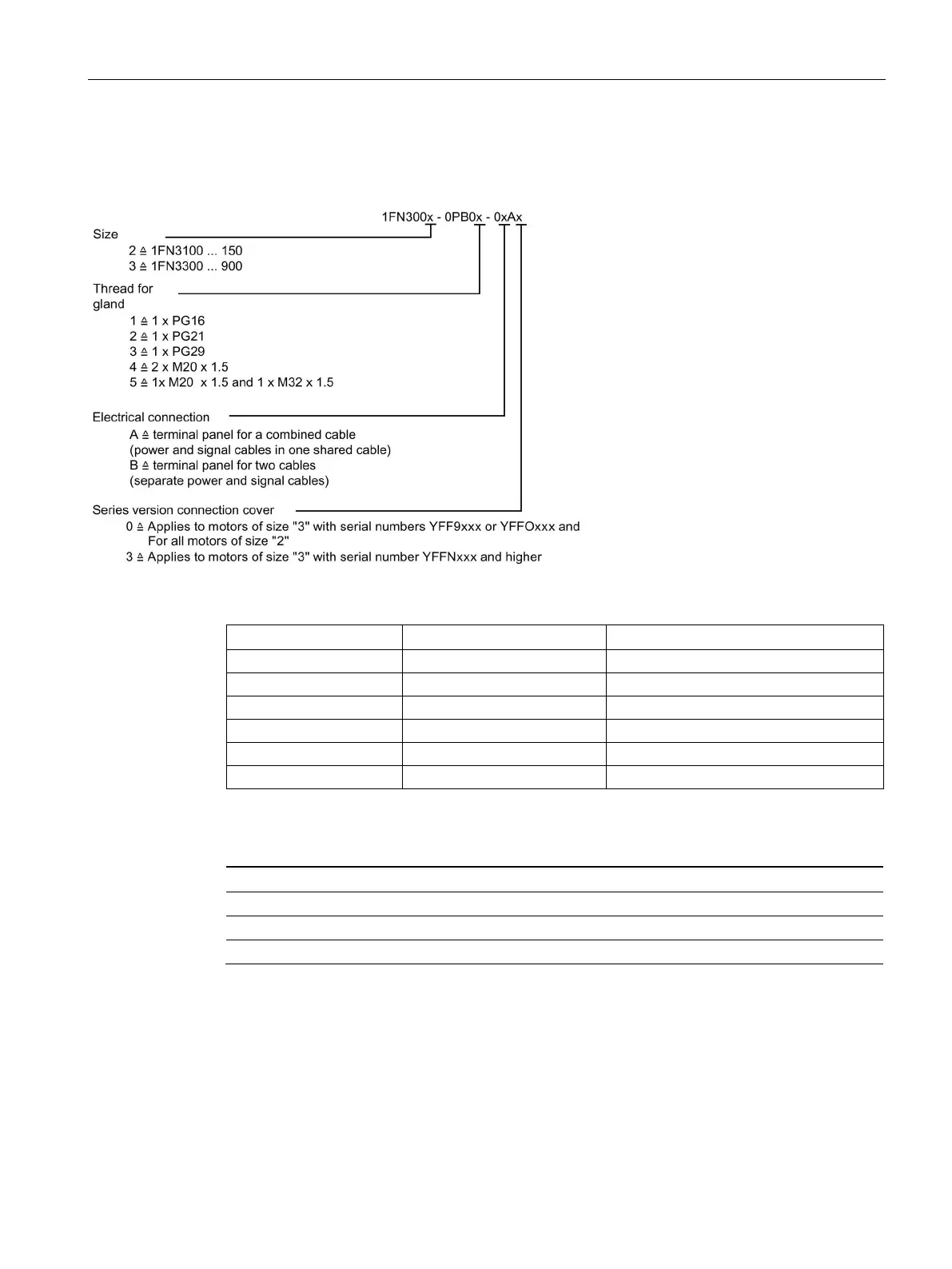

For 1FN3 linear motors, all of the connection covers can also be separately ordered.
Table 2- 8 Article numbers
Connection cover
Primary section size
Thread for gland
1FN3002-0PB01-0AA0
1FN3100 and 1FN3150
1 x PG16
1FN3003-0PB02-0AA0
1FN3300 to 1FN3900
1 x PG21
1FN3003-0PB03-0AA0
1FN3300 to 1FN3900
1 x PG29
1FN3002-0PB04-0BA0
1FN3100 and 1FN3150
2 x M20 x 1.5
1FN3003-0PB04-0BA0
1FN3300 to 1FN3900
2 x M20 x 1.5
1FN3003-0PB05-0BA0
1FN3300 to 1FN3900
1 x M20 x 1.5 and 1 x M32 x 1.5
Plug connector
Connector type
Connector size
Article No.
Power connection
1.5
6FX2003-0LA10
Power connection
1
6FX2003-0LA00
Signal connection
M17
6FX2003-0SU07
