Siemens SIMOTICS L-1FN3 Configuration Manual

Description of the motor
2.5 Selection and ordering data
1FN3 linear motors
46 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
Overview of heatsink profiles

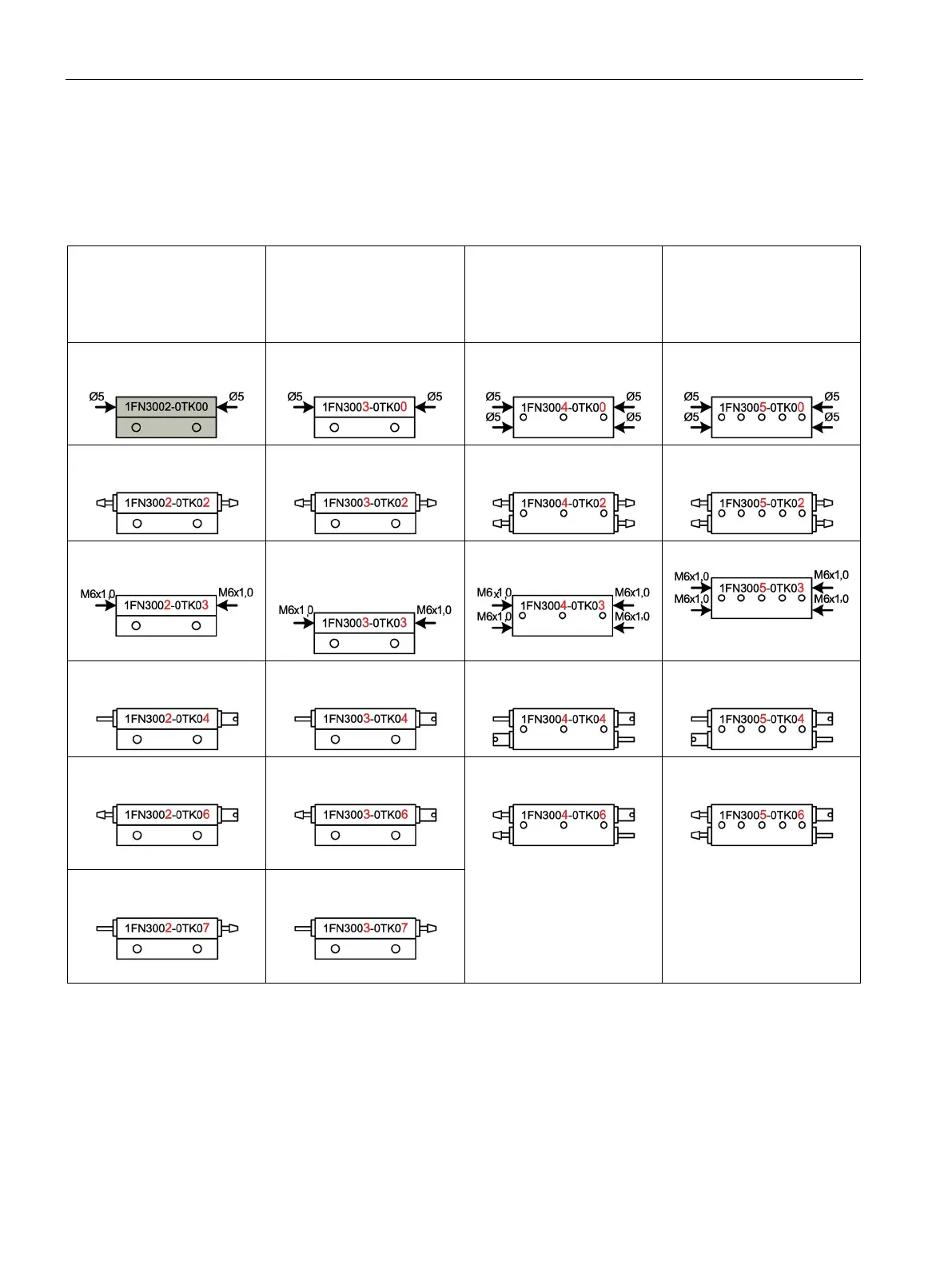

Table 2- 9 Heatsink profiles – variants and lengths that can be ordered
For sizes
1FN3050
1FN3100
1FN3150
For sizes
1FN3300
1FN3450
For sizes
1FN3600
For sizes
1FN3900
Lengths: None available Length: 3000 mm Length: 3000 mm Length: 3000 mm
Lengths: 01 to 24 segments Lengths: 01 to 16 segments Lengths: 01 to 16 segments Lengths: 01 to 16 segments
Length: 11 segments Lengths:
04, 05, 07, 09, 11 segments
Length: only 05 segments Length: only 04 segments
Lengths: 01 to 24 segments Lengths: 01 to 16 segments Lengths: 01 to 16 segments Lengths: 01 to 16 segments
Length: only 02 segments
"right"
Length: only 02 segments
"right"
Length: only 02 segments
Length: only 02 segments
Length: only 02 segments
"left"
Length: only 02 segments
"left"
