Siemens SIMOTICS L-1FN3 Configuration Manual

Electrical connection
8.3 System integration
1FN3 linear motors
496 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
Connection cover
The terminal panel is sealed with degree of protection IP65 using a cover with connection
thread. The following figure shows the different connection cover versions and their potential
applications.

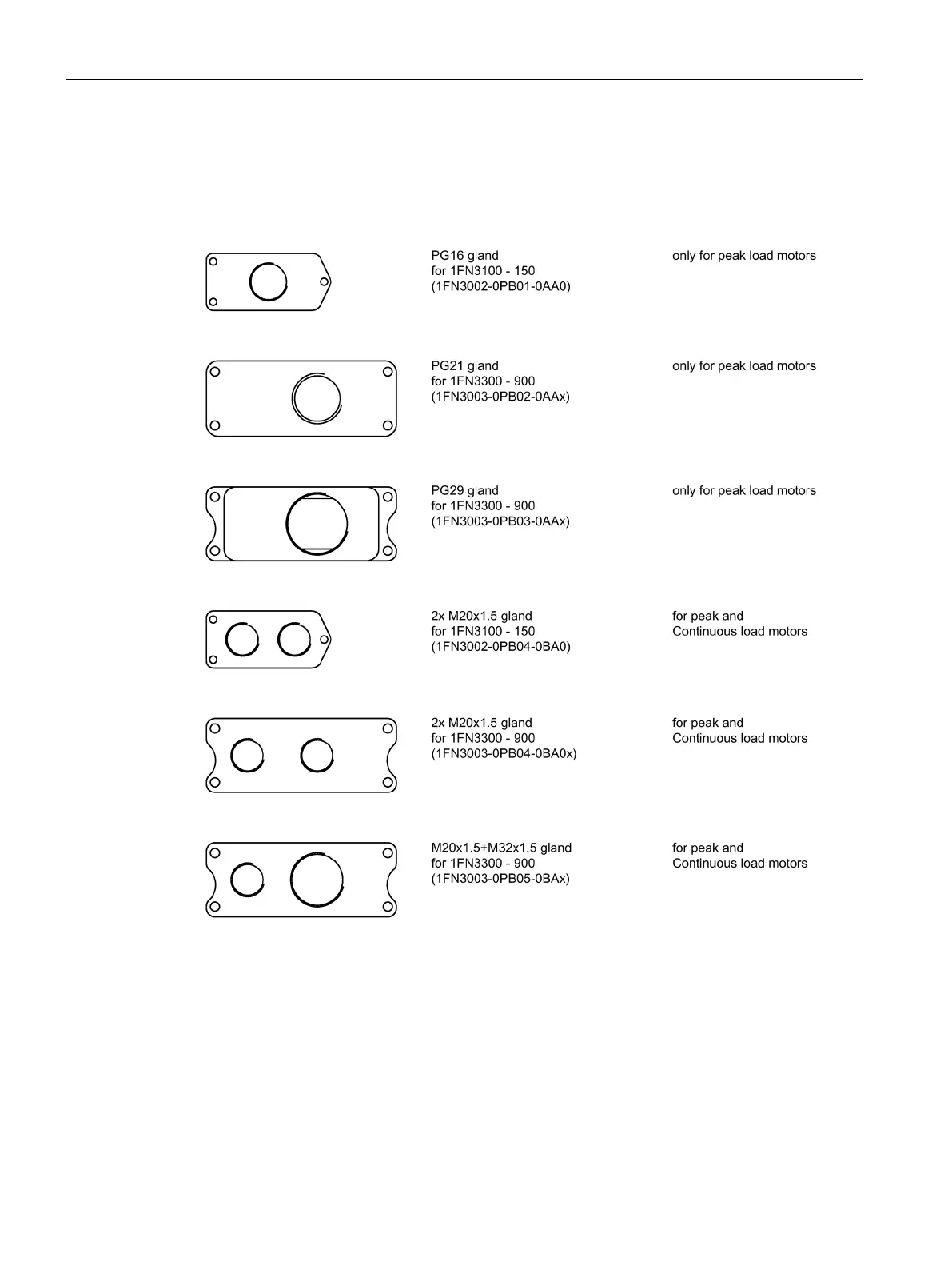

Figure 8-11 Connection cover variants
